Utilizing a low-power magnetic sensor, this advanced design combines tamper-proof and magnetic detection features for enhanced security. The sensor offers effective tamper alarms alongside door magnetic alarms, providing comprehensive protection for your business or home.
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Door Window Sensor
-
Material:
-
ABS
-
Color:
-
White (customizable)
-
Weight:
-
26.6 g (battery included)
-
OTA Updates:
-
Supported
-
Configuration App:
-
MSensor
-
Bluetooth LE Chipset:
-
nRF52 series
-
Bluetooth LE Version:
-
Bluetooth LE 5.0
-
Battery:
-
220mAh
-
Working Temperature:
-
-20°C to 60°C
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Minew
-
Model Number:
-
S4
-
Product name:
-
Door Window Sensor
-
Material:
-
ABS
-
Color:
-
White (customizable)
-
Weight:
-
26.6 g (battery included)
-
OTA Updates:
-
Supported
-
Configuration App:
-
MSensor
-
Bluetooth LE Chipset:
-
nRF52 series
-
Bluetooth LE Version:
-
Bluetooth LE 5.0
-
Battery:
-
220mAh
-
Working Temperature:
-
-20°C to 60°C
Products Description
S4 is a door magnetic sensor leveraging Bluetooth® LE 5.0 technology. Utilizing low-power sensors, it converts door and window state signals into digital signals and transmits data via Bluetooth® LE broadcast. When integrated with a cloud platform, the S4 works seamlessly with G1 and other gateways for real-time monitoring, intelligent care, abnormal alerts, and scene linkage. It can also connect with MG5 and other battery-powered LTE gateways, optimizing power consumption, extending battery life, and efficiently completing monitoring tasks.
|
Name
|
Smart Door Sensor
|
|
Material
|
ABS
|
|
Color
|
White (customizable)
|
|
Weight
|
26.6 g (battery included)
|
|
OTA Updates
|
Supported
|
|
Configuration App
|
MSensor
|
|
Bluetooth® LE Chipset
|
nRF52 series
|
|
Bluetooth® LE Version
|
Bluetooth® LE 5.0
|
|
Battery
|
220mAh
|
|
Battery Life
|
Around 13 months
|
|
Working Temperature
|
-20°C to 60°C
|
Features
It offers customizable broadcasting settings through the MSensor app, including combination frame broadcast modes like power-saving (broadcast on trigger) and regular mode. Export door magnetic and tamper history records as spreadsheet files, select door magnetic detection time periods, and more to suit your needs.

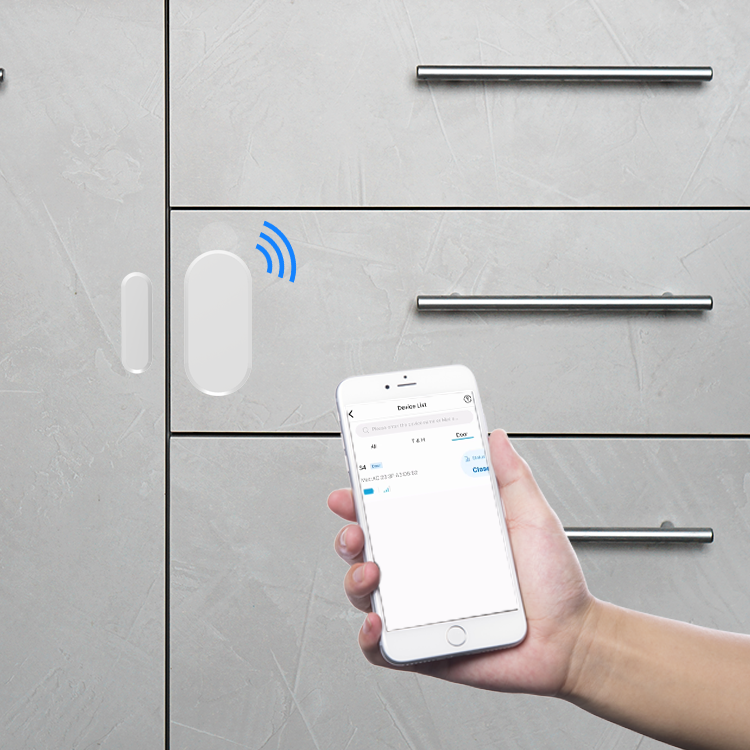

S4 offers a dual-sided adhesive installation way and features a circuit-free magnetic body, ensuring easy installation on doors and windows for seamless monitoring and enhanced security purposes.
Application
S4 Door Sensor & Window Sensor
Coupled with MSensor APP, it can realize local or remote real-time monitoring of valued assets. It is suitable for security applications in different scenarios, such as warehouses, archives, hospitals, families, laboratories, workshops, supermarkets, collection halls, computer rooms, hotels, etc.
