- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
LED PCB
-
Type:
-
Led pcb
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Copper Thickness:
-
1oz / 1/2 o z/ 1/3 oz
-
Min. Hole Size:
-
0.1MM
-
Min. Line Width:
-
0.06MM
-
Min. Line Spacing:
-
0.06MM
-
Surface Finishing:
-
ENIG/Lead free HASL/HASL
-
Product name:
-
LED PCB For LED Panel , Single Side Aluminum Rigids PCB Board
-
Application:
-
Consumer Electronics
-
Material:
-
TG185
-
PI thickness:
-
25μm / 12.5μm
-
Max Board Size:
-
400mmX800mm
-
Certificate:
-
ISO9001
-
Solder mask color:
-
Black.Red.Yellow.White.Blue.Green
-
Outline profile:
-
Punching / Laser cut / Drilled
-
Product thickness tolerance:
-
±0.03mm
-
PTH Hole dia. tolerance:
-
±0.03mm
Quick Details
-
Base Material:
-
PI / FR4
-
Board Thickness:
-
0.15-3.2MM
-
Board Size:
-
240mm/480mm/2000mm
-
Model Number:
-
LED PCB
-
Type:
-
Led pcb
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Copper Thickness:
-
1oz / 1/2 o z/ 1/3 oz
-
Min. Hole Size:
-
0.1MM
-
Min. Line Width:
-
0.06MM
-
Min. Line Spacing:
-
0.06MM
-
Surface Finishing:
-
ENIG/Lead free HASL/HASL
-
Product name:
-
LED PCB For LED Panel , Single Side Aluminum Rigids PCB Board
-
Application:
-
Consumer Electronics
-
Material:
-
TG185
-
PI thickness:
-
25μm / 12.5μm
-
Max Board Size:
-
400mmX800mm
-
Certificate:
-
ISO9001
-
Solder mask color:
-
Black.Red.Yellow.White.Blue.Green
-
Outline profile:
-
Punching / Laser cut / Drilled
-
Product thickness tolerance:
-
±0.03mm
-
PTH Hole dia. tolerance:
-
±0.03mm
Product Description

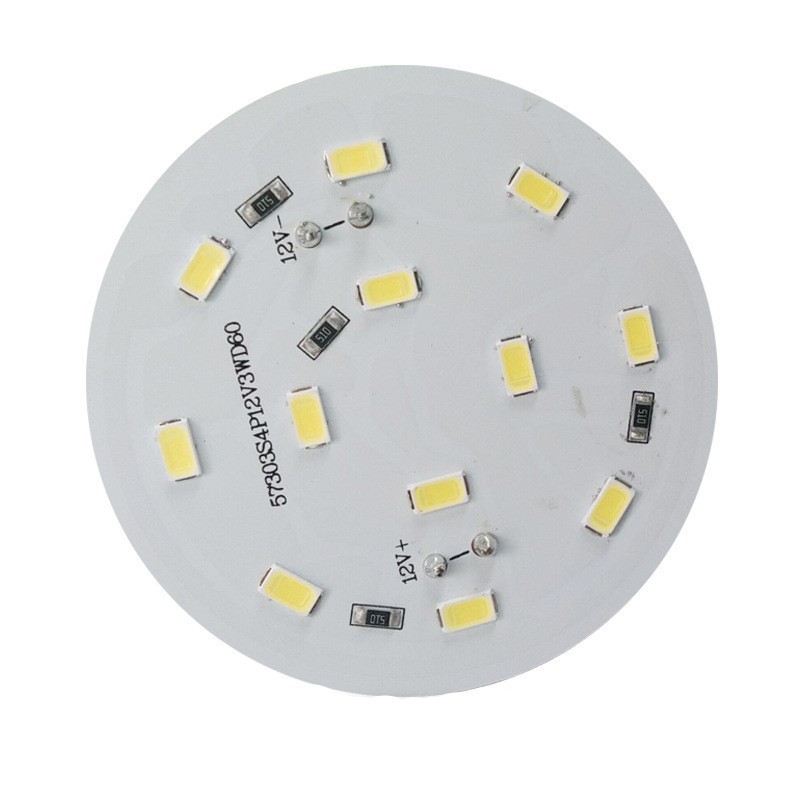

LED PCB For LED Panel , Single Side Aluminum Rigids PCB Board
| NO. | RIGID FPC ITEM | Manufacture capacity |
| 1 | Layer Counts | 2-22 layer |
| 2 | Base Material | PI/FR-4/HIGH TG FR-4/CEM-1/CEM-3 |
| 3 | Copper foil thickness | 1oz / 1/2oz/ 1/3oz |
| 4 | PI thickness | 25μm / 12.5μm |
| 5 | Board thickness | 0.15mm -3.2mm |
| 6 | Adhesive | 13μm |
| 7 | Max. board size | 400*800 mm |
| 8 | Product thickness tolerance | ±0.03mm |
| 9 | Min. Hole Diameter | 0.1mm |
| 10 | Min.Line Width/ Distance | 0.06mm |
| 11 | Etching tolerance | ±0.015mm |
| 12 | PTH Hole dia. tolerance | ±0.03mm |
| 13 | NPTH Hole dia. tolerance | ±0.05mm |
| 14 | Outline Dimension tolerance | ±0.1mm |
| 15 | Outline profile | Punching / Laser cut / Drilled |
| 16 | Surface finish | HASL / OSP / ENIG / Immersion silver/Tin/Ni |
| 17 | Solder mask color | Multi-color |
| 18 | Silkscreen color | White / Black |
| 19 | Acceptable file format |
CAD / Gerber file / powerpcb / Autocad Orcad / P-cad / CAM-350 / CAM2000 |
