* Stepless of spindle turning, feeding and table travelling
* Rotating speed and feed of spindle as weel as the movement of worktable is free-setup, automatical returning of spindle can be
realized
* Longitudinal and cross movement of table
* Complete set of accessories of boring, milling, drilling & reaming and easy exchange
* Tool fast centering device
* Tool measuring device
* Boring depth control device
* Table with digital readout for jig borer machine
- Product Details
- {{item.text}}
Quick Details
-
Table Travel (Z) (mm):
-
700 mm
-
Travel (W-axis) (mm):
-
1500 mm
-
Positioning Accuracy (X axis) mm:
-
0
-
Positioning Accuracy (Y axis) mm:
-
0
-
Positioning Accuracy (Z axis) mm:
-
0
-
Range of Spindle Speed(r.p.m):
-
860 r.p.m
-
Spindle Motor Power(kW):
-
5.5
-
Place of Origin:
-
China
-
Brand Name:
-
RICHON
-
Voltage:
-
220/380/415V, 380V or 220V
-
Weight (T):
-
3.8 T
-
Usage:
-
Used to bore high accurate holes of cylinder body and engine sleeve
-
Advantage:
-
Optional digital readout for the tables movement available
-
Name:
-
Vertical Cylinder Boring Milling Machine
-
Keyword:
-
cylinder boring milling machine
-
Boring diameter:
-
200mm
Quick Details
-
Table Size (mm):
-
400*1500
-
Table Travel (X) (mm):
-
200 mm
-
Table Travel (Y) (mm):
-
1500 mm
-
Table Travel (Z) (mm):
-
700 mm
-
Travel (W-axis) (mm):
-
1500 mm
-
Positioning Accuracy (X axis) mm:
-
0
-
Positioning Accuracy (Y axis) mm:
-
0
-
Positioning Accuracy (Z axis) mm:
-
0
-
Range of Spindle Speed(r.p.m):
-
860 r.p.m
-
Spindle Motor Power(kW):
-
5.5
-
Place of Origin:
-
China
-
Brand Name:
-
RICHON
-
Voltage:
-
220/380/415V, 380V or 220V
-
Weight (T):
-
3.8 T
-
Usage:
-
Used to bore high accurate holes of cylinder body and engine sleeve
-
Advantage:
-
Optional digital readout for the tables movement available
-
Name:
-
Vertical Cylinder Boring Milling Machine
-
Keyword:
-
cylinder boring milling machine
-
Boring diameter:
-
200mm
Products Description

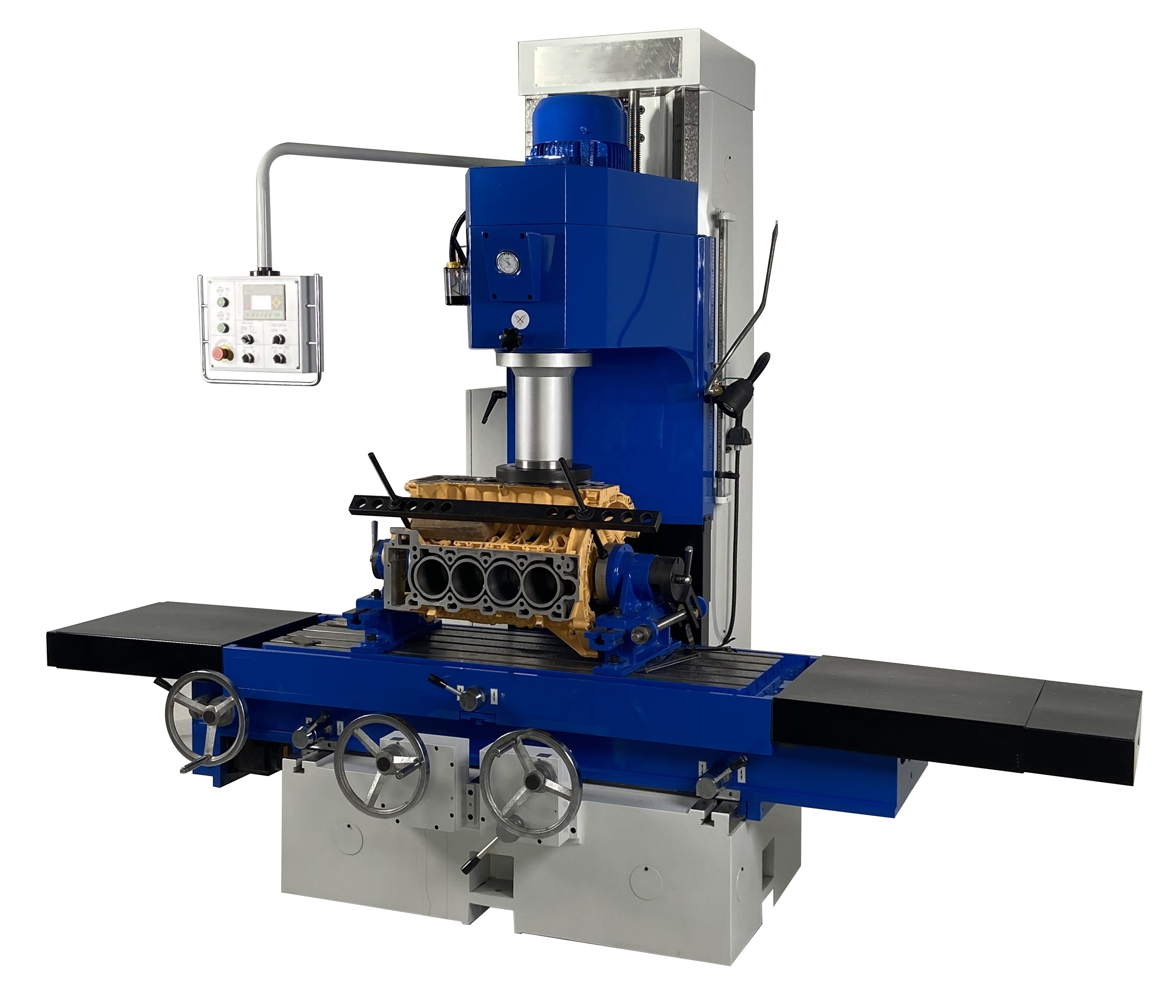

Vertical
F
ind boring-milling machine TX200A
|
MAIN SPECIFICATION
|
|
UNIT
|
TX200A
|
|
|
Max.boring diameter
|
|
mm
|
200
|
|
|
Max.boring depth
|
|
mm
|
500
|
|
|
Max.milling area
|
|
mm
|
400x1000
|
|
|
Max.drilling & reaming diameter
|
|
mm
|
30
|
|
|
Spindle speed
|
|
mm
|
120-860
|
|
|
Feeding of the spindle
|
|
r/min
|
14-900
|
|
|
Rapid moving speed of the spindle
|
|
mm/min
|
900
|
|
|
Spindle travel
|
|
mm/min
|
700
|
|
|
Distance between spindle end face and table
|
|
mm
|
0-700
|
|
|
Distance between spindle axis and carriage vertical plane
|
|
mm
|
365
|
|
|
Longitudinal feed of worktable
|
|
mm
|
32-1350
|
|
|
Rapid moving speed of the table longitudinal travel
|
|
mm/min
|
1350
|
|
|
Max.longitudinal travel of the working table
|
|
mm/min
|
1500
|
|
|
Max.cross travel of the working table
|
|
mm
|
200
|
|
|
Worktable size (W*L)
|
|
mm
|
500x1500
|
|
|
Dimensional precision of boring hole
|
|
mm
|
H 7
|
|
|
Machining precision
|
Roundness
|
mm
|
0.005
|
|
|
|
Cylindricity
|
|
0.01/300
|
|
|
|
Milling flatness
|
|
0.1
|
|
|
Surface roughness
|
Boring
|
um
|
Ra2.5
|
|
|
|
Milling
|
|
Ra3.2
|
|
|
Main motor power
|
|
kw
|
5.5
|
|
|
Overall dimensions (LxWxH)
|
|
cm
|
260x163x230
|
|
|
Packing dimensions (LxWxH)
|
|
cm
|
225x190x228
|
|
|
N.W/G.W
|
|
kg
|
3500/3800
|
|
Vertical Fine Boring Machine TX170A
Vertical Fine Boring&Grinding Milling machine TXM170A.
TXM200A. TXM250A
