Quick Details
-
CaO Content (%):
-
0.05
-
SiC Content (%):
-
84.6
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
XDFC-17
-
Brand Name:
-
XINDA
-
Raw material:
-
silicon carbide
-
Application:
-
Industrial Ceramic
-
Color:
-
Black
-
Working temperature:
-
≤1380
-
Thermal Conductivity:
-
45W/MK(1200 )
-
Product name:
-
Silicon carbide frame kiln
-
Size:
-
As Drawing Requests
-
Feature:
-
High Temperature Resistant
Quick Details
-
SiO2 Content (%):
-
3.23
-
Al2O3 Content (%):
-
0.03
-
MgO Content (%):
-
<0.01
-
CaO Content (%):
-
0.05
-
SiC Content (%):
-
84.6
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
XDFC-17
-
Brand Name:
-
XINDA
-
Raw material:
-
silicon carbide
-
Application:
-
Industrial Ceramic
-
Color:
-
Black
-
Working temperature:
-
≤1380
-
Thermal Conductivity:
-
45W/MK(1200 )
-
Product name:
-
Silicon carbide frame kiln
-
Size:
-
As Drawing Requests
-
Feature:
-
High Temperature Resistant

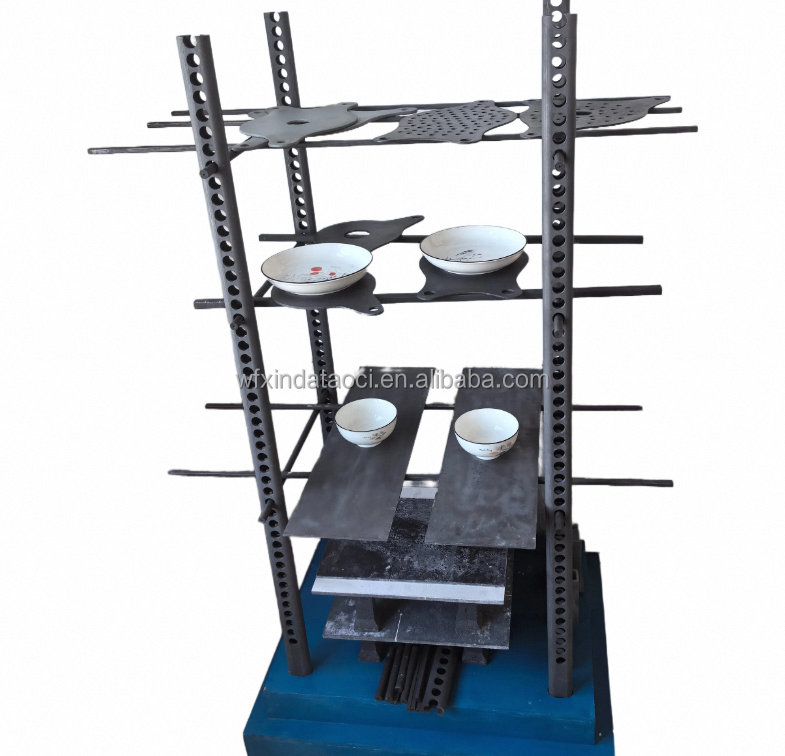

Silicon carbide frame type energy saving kiln
SiC frame type energy saving kiln is suitable for tunnel kilns, shuttle kilns, some roller kilns and other kiln high temperature bearing structure frame, high temperature strength has good thermal conductivity, frame type structure adopts porous column main beam Beam or thin plate with combination of the kiln, layer number of products can be adjusted freely, greatly reduce the overall weight of the kiln furniture and frame structure, convenient operation and greatly increasing the loading density of the product,and because of reaction-bonded sic materials thermal conductivity, excellent energy-saving than traditional kiln, kiln furniture are made of silicon carbide frame type energy saving more than 20% at least, and greatly increase the service life Pre-reaction sintered SiC frame type energy saving kiln furniture has been widely used in daily porcelain, sanitary ware ceramics, high voltage electric porcelain and other ceramic industries.
Feature
◊ Superior wear resistance, impact resistance and corrosion resistance
◊ Excellent flatness and temperature resistance up to1380℃
◊ Excellent oxidation resistance
◊ Excellent oxidation resistance
◊ Good dimensional control of complex shapes
◊ Easy installation ◊ Longer service life ( about 6 times more than that of alumina ceramic )
Product Paramenters
|
Item
|
Unit
|
Data
|
|
Temperature of application
|
°C
|
≤1380
|
|
Density
|
g/cm³
|
﹥3.02
|
|
Open porosity
|
%
|
0
|
|
Denying sirengin
|
Mpa
|
250(20°C )
|
|
|
Mpa
|
280(1200°C )
|
|
Modulus of elasticity
|
Gpa
|
330(20°C )
|
|
|
Gpa
|
300(1200°C )
|
|
Thermal conductivity
|
W/m.k
|
45(1200°C)
|
|
Coefficient of thermal expansion
|
K∧-1×10∧-6
|
4.5
|
|
Rigidity
|
|
9.2
|
|
Acid-proof alkaline
|
|
Excellent
|
