Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JiNan GoodCut
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Power (kW):
-
9
-
Weight (KG):
-
1300
-
Product name:
-
1325 atc cnc wood router for mdf cutting wooden furniture door making
-
Working area:
-
1300x2500x200mm, 4*8 feet
-
Control system:
-
Taiwan Syntec, Weihong NK260, LNC Control System
-
Tool magazine:
-
8/10/12 pcs Linear Tool Changer Magazine
-
Spindle:
-
HQD 9kw ATC Spindle
-
Motor and driver:
-
Leadshine servo motor, Japan Yaskawa servo motor
-
Inverter:
-
11kwFuling/Delta Inverter
-
Transmission:
-
Taiwan HIWIN 30mm Guide Rails, TBI ball screw
-
Table:
-
Vacuum Adsorption + T-slot
-
Other parts:
-
positioning cyliner, 5.5kw 2 bags dust collection, 7.5kw vacuum pump
-
Showroom Location:
-
None
-
Marketing Type:
-
New Product 2020
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JiNan GoodCut
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1300*2500*200mm
-
Power (kW):
-
9
-
Weight (KG):
-
1300
-
Product name:
-
1325 atc cnc wood router for mdf cutting wooden furniture door making
-
Working area:
-
1300x2500x200mm, 4*8 feet
-
Control system:
-
Taiwan Syntec, Weihong NK260, LNC Control System
-
Tool magazine:
-
8/10/12 pcs Linear Tool Changer Magazine
-
Spindle:
-
HQD 9kw ATC Spindle
-
Motor and driver:
-
Leadshine servo motor, Japan Yaskawa servo motor
-
Inverter:
-
11kwFuling/Delta Inverter
-
Transmission:
-
Taiwan HIWIN 30mm Guide Rails, TBI ball screw
-
Table:
-
Vacuum Adsorption + T-slot
-
Other parts:
-
positioning cyliner, 5.5kw 2 bags dust collection, 7.5kw vacuum pump
-
Showroom Location:
-
None
-
Marketing Type:
-
New Product 2020

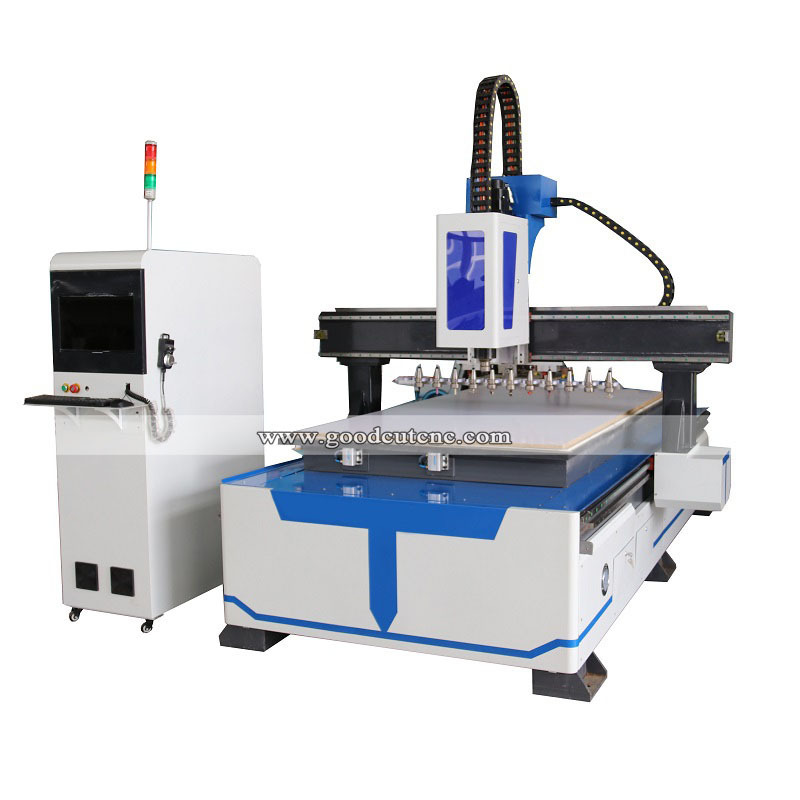

4*8ft cnc router woodworking machine 4 axis 1325 atc cnc wood router for mdf cutting wooden furniture door making
Parameter:
|
1
|
Model Name
|
Linear atc wood cnc router 1325
|
|
2
|
X Y Z working area
|
1300*2500*250mm
|
|
3
|
Whole structure
|
Heavy duty frame
|
|
4
|
Table surface
|
T-slot & Vacuum with vacuum pump
|
|
5
|
Movement parts
|
X,Y axis by gear, Z axis by Taiwan TBI Ball screw
|
|
6
|
Spindle
|
Changsheng 9.0KW air cooling spindle
|
|
7
|
Spindle speed
|
18000 RPM
|
|
8
|
Drive Motor
|
Taiwan Delta 750w servo motor and drivers
|
|
9
|
Max. Rapid Travel Rate
|
30000 mm/min
|
|
10
|
Max. Working speed
|
10000mm/min
|
|
11
|
Control System
|
Weihong NK280 with handwheel
|
|
12
|
Software
|
Type3, Artcam, Ucancam
|
|
13
|
Machine precision
|
0.01mm
|
|
14
|
Repositioning precision
|
0.03mm
|
Advantage:
1. With 8 or 12 sets of tools to change automatically, which can saving time of tools changing and improving working efficiency.
2.Vacuum table using high-density material with great suction strength, comfortably accommadating all sizes of work piece.
3.control system is simple, convenient and easy to learn, users can quickly get the fleciblity to master the use of equipment, strong independence.
4.The frame adopts the gantry column structure, the machine parts are produced and assembled with extremely high precision to ensure the high performance and stability of the machine, excellent quality and tolerance.
Details:
Ø Effective working area: 1300*2500mm*200mm
Ø 9kw HQD ATC air cooling spindle
9 kw air cooling spindle with high speed and power,easy to maintain
Ø Fuling inverter
Ø WEIHONG control system
control system is simple, convenient and easy to learn, users can quickly get the fleciblity to master the use of equipment, strong independence.
Ø Yaskawa servo motor
Ø Vacuum working table
Vacuum table using high-density material with great suction strength, comfortably accommadating all sizes of work piece.
Ø Taiwan TBI Ball Screw,Helical Rack and Pinion
Fast transmission, safety, long using life
4.Application:
|
1.Wood furniture industry
5.Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards, artificial stones, organic glass, plastics and soft metal sheets such as copper and aluminum. |
