Factory price flange nut tapping machine automatic tapping machine

Factory price flange nut tapping machine automatic tapping machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $449

≥5 Sets

US $399

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Drilling Speed:: 312 r/min

Place of Origin:: Henan, China

Brand Name:: Demma

Model Number:: Electric Tapping Machine

Voltage:: 220v/customization

Power (kW):: 0.6

Weight (KG):: 25 KG

Product name:: Electric Tapping Machine

Type:: M3-M16

Main motor power:: 0.6 kw

Working Accuracy:: 0.05

Max travel of spindle:: 500 mm

Tool cutting edge angle:: 90 °

Pitch range of rolling screw:: 0.5 mm

Tapping capacity:: Universal

Swiss quartz:: Electric

Layout form:: Vertical type

Quick Details

type:: Bench Drilling Machine

Max. Drilling Dia. (mm):: 16mm

Range of Spindle Speed(r.p.m):: 1 - 312 r.p.m

Drilling Speed:: 312 r/min

Place of Origin:: Henan, China

Brand Name:: Demma

Model Number:: Electric Tapping Machine

Voltage:: 220v/customization

Power (kW):: 0.6

Weight (KG):: 25 KG

Product name:: Electric Tapping Machine

Type:: M3-M16

Main motor power:: 0.6 kw

Working Accuracy:: 0.05

Max travel of spindle:: 500 mm

Tool cutting edge angle:: 90 °

Pitch range of rolling screw:: 0.5 mm

Tapping capacity:: Universal

Swiss quartz:: Electric

Layout form:: Vertical type

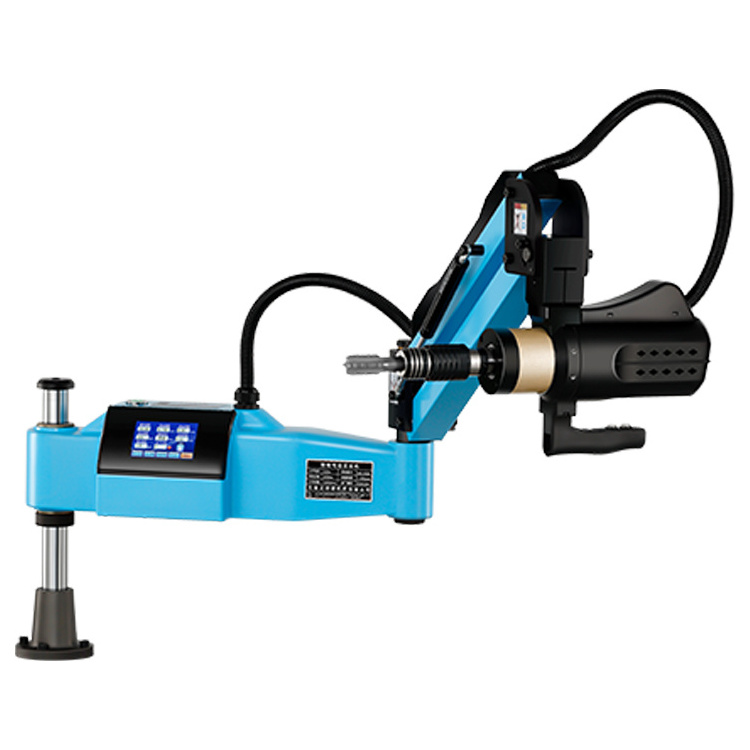

Factory price flange nut tapping machine automatic tapping machine

Electric

Tapping Machine

_________

Product Description

The transmission mechanism is provided with a quick reversing device, which is used for electric tools for processing internal threads.

Features of electric tapping machine

(1) Stable torque and long life (2) The repeated positioning is rapid, the cutting speed is fast, and the production efficiency is high;
(3) The safety torque collet ensures less damage to the tap; the through hole and blind hole taps are continuous, and the tapping precision is high;
(4) The scope of work activities is large, and the heavier workpieces do not need to be moved;
(5) Simple operation, light weight, high efficiency and low work intensity, suitable for various light and heavy operations.
(6) Universal positioning to achieve horizontal tapping.
(7) With automatic lubrication function, it can realize the automatic spraying of tapping oil, automatically lubricate the tap,
and realize the thread insertion, which is more efficient.
(8) The verticality error of the fuselage is less than 0.05mm.

Specification

Type	M2-M8	M3-M12	M3-M16	M6-M24	M6-M30	M6-M36	M12-M42
Voltage / Power	220V/600W	220V/600W	220V/600W	220V/1200W	220V/1200W	220V/1400W	220V/1400W
Speed	1250rpm	715rpm	312rpm	250rpm	200rpm	156rpm	200rpm
Working radius	1.1M	1.1M	1.1M	1.2M	1.2M	1.2M	1.3M
Angle of tapping	Vertical / Universal	Vertical / Universal	Vertical / Universal	Vertical / Universal	Vertical / Universal	Vertical / Universal	Vertical / Universal
Weight	28KG	28KG	30KG	50KG	50KG	53KG	100KG

Operation method of electric tapping machine

After the power is turned on, turn on the power controller, set the tapping speed, press and hold the forward rotation, the servo motor will convert the voltage signal into torque and speed output for tapping operation, tap the bottom and press the reverse button to withdraw the thread. The power wire has high precision and can be detected by the pass and stop gauge.

Products Detail

1. Servo motor: It converts the voltage signal into torque and speed to drive the control object .

2. Tap torque protection chuck:
adjust the size of the chuck torque, tap the bottom of the blind hole to exceed its torque, slip protection.

3. Controller: power control and torque overload protection

4. Display screen:
control and adjustment of wire feed and withdrawal speed

5. Bracket: height can be adjusted up and down, tapping at any position within the operating radius

6. The fuselage is equipped with a lifting mechanism, which can increase the Z axis of the main shaft by 120mm
