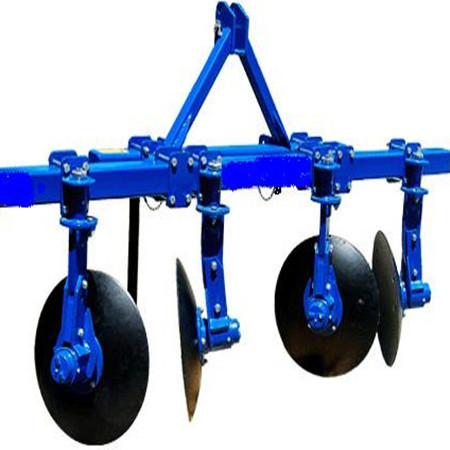

Farm small ploughing machine ,disc plough

Farm small ploughing machine ,disc plough

FOB Reference Price: Get Latest Price

≥1 Sets

US $360

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 510 KG

After-sales Service Provided:: Engineers available to service machinery overseas

Item:: Disc Plough

Working width:: 1.0 m

Working depth:: 250 mm

Qty. of disc:: 4 pc

Dia. of Disc:: 660 mm

Thickness of disc:: 6 mm

Linkage:: Three point-mounted

Certification:: ISO 9001

Quick Details

Use:: tillage on dry cultivated or fallow land

Place of Origin:: Shandong, China

Brand Name:: dadi

Weight:: 510 KG

After-sales Service Provided:: Engineers available to service machinery overseas

Item:: Disc Plough

Working width:: 1.0 m

Working depth:: 250 mm

Qty. of disc:: 4 pc

Dia. of Disc:: 660 mm

Thickness of disc:: 6 mm

Linkage:: Three point-mounted

Certification:: ISO 9001

Product Description

Farm small ploughing machine ,disc plough

The reversible disc plough is lower cast and higher volume output. The cost for cultivation is paid more and more attention by the customers and to meet this require-ment. Our company developed the series of reversal plough. The plough camber is deeply prefer by the customer all over the country in recent years particularly. The working speed is 8-10km/h.

Specifications

Number	Product Name	Model	Matched Power (Hp)	Weight (Kg)	Working width (M)	Working depth (mm)	Qty. of disc	Dia. of Disc(mm)	Thickness of disc(mm)
1	One-way disc plow	1LS-220Y	hand 12-15	70	0.40	200	2	510	5
2	One-way disc plow	1LYQ-220	15-24	120	0.40	200	2	510	5
3	One-way disc plow	1LYQ-315	1 8-30	160	0.45	180	3	450	4
4	One-way disc plow	1LYQ-320	2 5-40	180	0.60	200	3	510	5
5	One-way disc plow	1LYQ-420	3 5-50	230	0.60	200	4	510	5
5	One-way disc plow	1LYQ- 520	4 0-55	290	0.60	200	4	510	5
6	One-way disc plow	1LY-325	5 0-80	430	0.75	250	3	660	6
7	One-way disc plow	1LY-425	7 5-105	520	1.00	250	4	660	6
8	One-way disc plow	1LY-525	9 0-120	610	1.25	250	5	660	6
9	One-way disc plow	1LY-625	1 00-150	720	1.50	250	6	660	6
10	One-way disc plow	1LY-725	1 30-160	960	1.75	250	7	660	6
11	Tubular disc plow	1LY-230	4 0-50	350	0.60	300	2	710	6
12	Tubular disc plow	1LY-330	55-70	430	0.90	300	3	710	6
13	Tubular disc plow	1LY-430	7 0-100	540	1.20	300	4	710	6
14	Tubular disc plow	1LY-530	8 0-120	650	1.50	300	5	710	6
15	One-way disc plow	1LY-225A	40-55	370	0.50	300	2	710	6
16	One-way disc plow	1LY-325A	60-90	480	0.75	300	3	710	6
17	One-way disc plow	1LY-425A	80-110	591	1.00	300	4	710	6
18	One-way disc plow	1LY-525A	90-120	702	1.25	300	5	710	6
19	One-way disc plow	1LY-625A	100-140	820	1.50	300	6	710	6
20	One-way disc plow	1LY-725A	150-180	1000	1.75	300	7	710	6
21	Reversible disc plough	1LY(sx)-325	5 5-90	520	0.75	250	3	660	6
22	Reversible disc plough	1LY(sx)-425	8 0-100	660	1.00	250	4	660	6
23	Reversible disc plough	1LY(sx)-525	9 0-120	820	1.25	250	5	660	6
24	Reversible disc plough	1LY(sx)-625	1 20-150	1000	1.50	300	6	660	6
25	driven powered disk plow	1LYQ-322	12-18	216	0.66	120-200	3	500	4
26	driven powered disk plow	1LYQ-422	18-25	240	0.88	120-200	4	500	4
27	driven powered disk plow	1LYQ-522	25-30	276	1.10	120-200	5	500	4
28	driven powered disk plow	1LYQ-622	50-60	321	1.32	120-200	6	560	4
29	driven powered disk plow	1LYQ-722	60-70	357	1.54	120-200	7	560	4
30	driven powered disk plow	1LYQ-822	70-90	410	1.76	120-200	8	560	4
31	driven powered disk plow	1LYQ-922	90-100	550	2.10	160-200	9	560	4
32	driven powered disk plow	1LYQ-1022	90-120	600	2.50	160-200	10	560	4
33	driven powered disk plow	1LYQ-1122	100-120	650	2.90	160-200	11	560	4
34	driven powered disk plow	1LYQ-1222	100-150	700	3.30	160-200	12	560	4
