Quick Details
-
Type:
-
Clamping Chucks
-
Product Name:
-
Zero positioning Chuck
-
Application:
-
clamp workpieces,vises and gauges
-
Usage:
-
clamp
-
Connection:
-
on back
-
Power:
-
pneumatic
-
Repeated positioning accuracy:
-
<0.005mm
-
weight:
-
3.8
-
Clamping:
-
2*5
-
Unlock method:
-
Air pressure unlock
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MRCM
-
Model Number:
-
Q-5
-
Type:
-
Clamping Chucks
-
Product Name:
-
Zero positioning Chuck
-
Application:
-
clamp workpieces,vises and gauges
-
Usage:
-
clamp
-
Connection:
-
on back
-
Power:
-
pneumatic
-
Repeated positioning accuracy:
-
<0.005mm
-
weight:
-
3.8
-
Clamping:
-
2*5
-
Unlock method:
-
Air pressure unlock

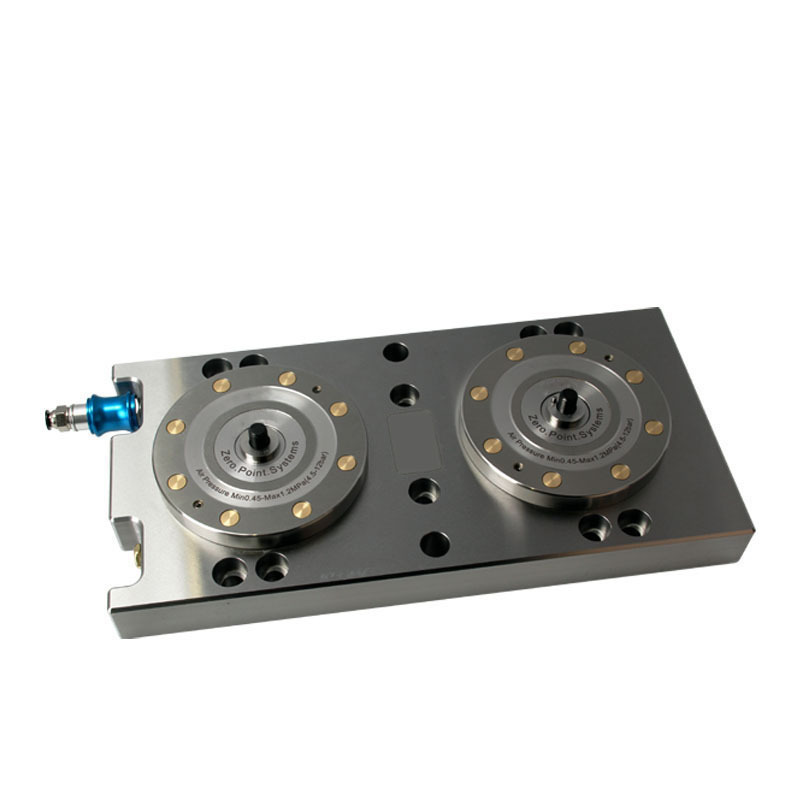

Hot Selling zero-point fixture chuck clamp Two Station Foundation Plate
FEATUERS:
Zero-point Chuck mode: pneumatic Zero-point Chuck / hydraulic Zero-point Chuck
Pneumatic automatic chip removal
Material: die steel (#)
Surface and piston hardening treatment
Repeat positioning accuracy <0.005mm
Design Features
The UNILOCK is suitable for machine tool workstations with T groove spacing of 100 and 125mm, which are fastened by countersunk head bolts. At least two positioning holes for accurate positioning.
The distance between two locator is 200mm. Pneumatic Zero-point Chucking and installing pneumatic quick connector, hydraulic Zero-point Chucking and installing hydraulic quick connector, pneumatic dust removal performance interface can be selectively connected.
|
Model |
A |
B |
C |
D |
ΦE |
F |
G |
L |
SM |
R |
Unlock Method |
Clamping force(KN) |
Tensioning force(KN) |
Blowing dust |
Weight |
|
Q5 |
198 |
150 |
100 |
98 |
11.5 |
25 |
85 |
8.5 |
100 |
G1/8 |
pneumatic |
2x5 |
2x15 |
√ |
3.8KG |
|
Q10 |
366 |
250 |
200 |
166 |
20 |
28 |
138 |
10 |
200 |
G1/8 |
pneumatic |
2x10 |
2x25 |
√ |
12.6KG |
|
Q20 |
398 |
250 |
200 |
198 |
20 |
38 |
164 |
15 |
200 |
G1/4 |
pneumatic |
2x17 |
2x55 |
√ |
22.7KG |
|
Y10 |
366 |
250 |
200 |
166 |
20 |
28 |
138 |
10 |
200 |
G1/8 |
hydraulic |
2x15 |
2x30 |
× |
12.6KG |
|
Y20 |
398 |
250 |
200 |
198 |
20 |
38 |
164 |
15 |
200 |
G1/4 |
hydraulic |
2x25 |
2x60 |
× |
22.7KG |
Specification
Q-5
ZERO POSITIONING CHUCK
High precision workpiece machining, product processing, mould processing.
Use for high precision, high speed machining center, machining center, CNC, powerful CNC milling, computer gong, carving and milling machine, engraving machine, milling machine.
EXPORTING PACKAGE, SAFE AND STABLE
