Quick Details
-
Voltage:
-
380v
-
Weight:
-
500 KG
-
Dimension(L*W*H):
-
1650*600*1260mm
-
Name:
-
wood charcoal briquette making machine
-
power:
-
15kw
-
after sales:
-
lifelong
-
diameter of final briquette:
-
50-80mm
-
Raw material:
-
wood sawdust,rice husk,crop straw,etc
-
Application:
-
Fuel Saver Device
-
Capacity:
-
150-300kg/h
-
Briquette Shape:
-
Hexagon
-
Control Method:
-
Automatic Control
-
keywords:
-
charcoal briquette making machine
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HS
-
Voltage:
-
380v
-
Weight:
-
500 KG
-
Dimension(L*W*H):
-
1650*600*1260mm
-
Name:
-
wood charcoal briquette making machine
-
power:
-
15kw
-
after sales:
-
lifelong
-
diameter of final briquette:
-
50-80mm
-
Raw material:
-
wood sawdust,rice husk,crop straw,etc
-
Application:
-
Fuel Saver Device
-
Capacity:
-
150-300kg/h
-
Briquette Shape:
-
Hexagon
-
Control Method:
-
Automatic Control
-
keywords:
-
charcoal briquette making machine
Product Overview

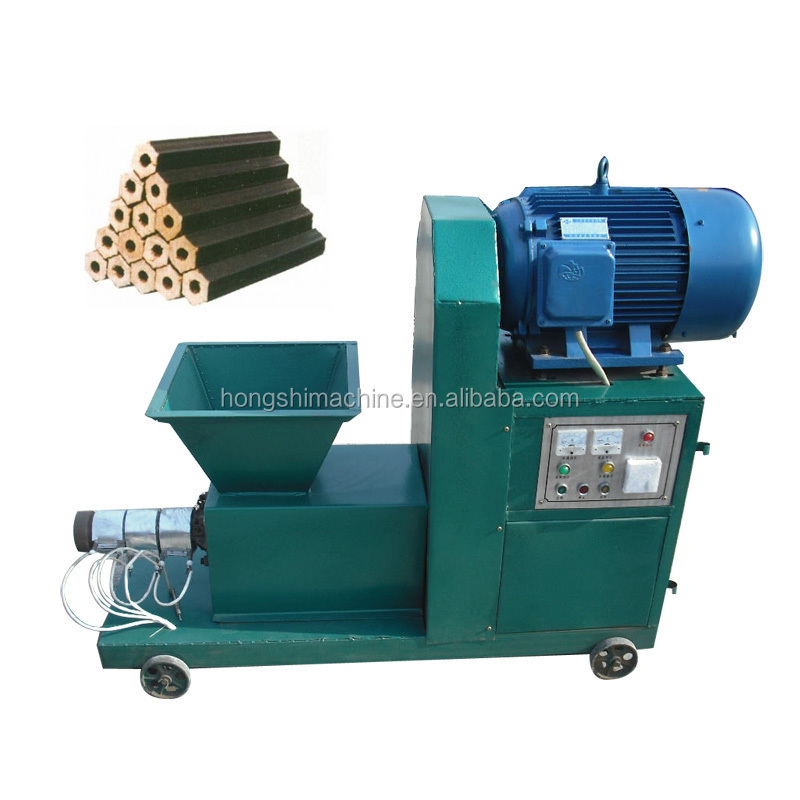

Wood charcoal briquette making machine
Wood charcoal briquette making machine is used to make sawdust, sugar cane, rice straw, rice stalk, corn stalk, cotton stalk, bean husk, into half-charcoal stick. The final briquette products of this machine can be used to heat boiler, fireplace, etc for warm in house. The length of the finished product can be controlled and changed according to your requirement.
1. For using material of two or more types, It should be mixed in suitable form.
2. Size:less than 5mm, if the material cannot achieve the requirement, it should be crush first.
3. Moisture: 8-12%, if raw material has high moisture it should be reduced by Sun drying or using air flow drier or rotary dryer if large capacity.
4. The feed material should be even.
Technical parameter
|
Model
|
HS-B50
|
|
Capacity
|
200-260kg/h
|
|
Power
|
15kw
|
|
Diameter of briquette
|
50mm
|
|
Length of briquette
|
adjustable
|
|
Weight
|
600kg
|
|
Package size
|
1700*800*1500mm
|
|
Powder moisture
|
8-12%
|
Related machine
Wood charcoal briquette production line
Firstly grinder tree branches, straws, straw, peanut shells, tree trunks, cotton stalks, tea seed husks, nut shells, weeds, leaves, etc., into 10mm by wood crusher machine.The powder is dried by dryer machine so that its moisture content is within 12%.By high temperature and pressure,the powder is shaped into briquette.The forming briquette after carbonization is finished charcoal.The charcoal produced by our machine machine has high density, small size and good combustibility, which can replace wood and coal. This product is especially suitable for heating,barbecue and cooking,etc.It is more and more popular because it is no smoke and high calorific and long burning time.The whole wood charcoal production line includes wood crusher machine,wood briquette machine, sawdust dryer machine and carbonization furnace.
|
Wood crusher machine
|
|
|
|
Model
|
HS-W500
|
|
|
Power
|
15kw
|
|
|
Capacity
|
1000kg/h
|
|
|
Dimension
|
1500*700*1100mm
|
|
|
Weight
|
800kg
|
|
|
Power size
|
1-10mm
|
|
|
Sawdust dryer machine
|
|
|
||
|
Model
|
HS-219
|
HS-325
|
||
|
Capacity
|
300kg/h
|
800kg/h
|
||
|
Power
|
4kw
|
7.5kw
|
||
|
Carbonization stove
|
|
|
|
Model
|
HS-C1
|
|
|
Capacity
|
1000kg/batch
|
|
|
Carbonization time
|
6 hours per batch
|
|
|
Power
|
1.5kw
|
|
|
Inner stove Dia.
|
1500mm
|
|
|
Thickness
|
10mm
|
|
|
Dimension
|
2000*2000*2300mm
|
|
|
Weight
|
3500kg
|
|
|
Heating temperture
|
400℃-500℃
|
|
Finished charcoal
Package and delivery
FAQ
Q1:
How is the quality of your products?
A1:
Our products are manufactured strictly according to national and international standard,and we take a test on each machine before delivered out.We will send our customers testing video and picture of our equipment after testing.
Q2:
How about price?
A2:
We are factory and be able to give you resonable price.If the products is really suitable and benefit you,the price is negotiable.
Q3:
How about delivery?
A3:We usually deliver the goods out within 10 working days.We will provide the accurate delivery time according to different products.
Q4:Do you provide equipment operation training?
A4:Yes.We can send our technicians to working site for installation,adjustment and operation training.
Q5:Do you provide after-sale service?
A5:Yes.Quality guarantee term is for one year.We have a professional after-sale service team to solve problems promptly.If products’ quality don’t accord to description as we give or the promise before you place order,we promise 100% refund.
