Quick Details
-
Below energy (kj):
-
1.0
-
Below frequency(min-1):
-
210
-
Height of working area(mm):
-
297
-
Depth of throat(mm):
-
280
-
Working Piece Square(mm*mm):
-
65*65
-
Working Piece Round(mm):
-
85
-
Motor Model:
-
Y160M -6
Quick Details
-
Place of Origin:
-
Henan, China
-
Name:
-
Anyang pneumatic drop forging hammer for sale
-
Weight of falling parts(kg):
-
75
-
Below energy (kj):
-
1.0
-
Below frequency(min-1):
-
210
-
Height of working area(mm):
-
297
-
Depth of throat(mm):
-
280
-
Working Piece Square(mm*mm):
-
65*65
-
Working Piece Round(mm):
-
85
-
Motor Model:
-
Y160M -6

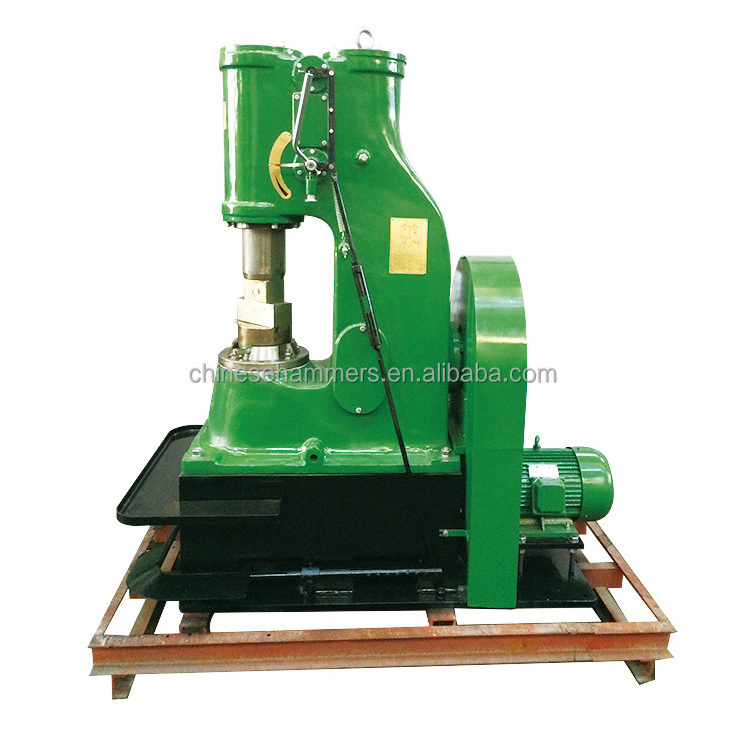

Anyang pneumatic drop forging hammer Application
Drop forging hammers
frame and anvil block is one piece. It consists two air cylinders, compression cylinder and working cylinder. The compression cylinder compress air, then deliver compressed air to working cylinder by distribution valve, the compressed air push the piston and hammer to work. It is mainly used for free forging, drawing, upsetting, punching, cutting, forged welding, torsion and bending, also used in bolster die forging.
Anyang pneumatic drop forging hammer Main Features
1) Largest selection of air power hammer 9kg to 2000kg.
2) Self-contained no compressor needed.
3) Resin casting, the surface is good.
4) Lifetime warranty on hammer frame.
5) X-Y anvil on all hammers.
6) Exported to USA, UK, Germany, Australia etc over 66 countries.
We not only produce pneumatic drop forging hammer but also produce different forging dies match with the power hammer, it can help the blacksmith improve the working efficiency.
Our pneumatic drop forging hammer have got CE, design patent, famous brand etc certifications.
Till now, pneumatic drop forging hammer have been exported to Russia, India, Thailand, Romania, etc over 66 countries. the open die forging hammers are good for forging work handling.
Pre-Sales Service
* Inquiry and consulting support.
* 7*24 service.
* Technical support.
After-Sales Service
*Full inventory of parts,dies and service.
* Engineers available to service machinery overseas.
* Have dealer in USA, Australia, UK, Germany etc 26 countries, local serive.
