Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MW
-
Model Number:
-
OIC-5
-
Type:
-
Gate Operators
-
Name:
-
AC Swing Gate Opener
-
Power supply:
-
110V/220~230V AC
-
Motor:
-
AC Motor
-
Remote control:
-
2 Pcs
-
Motor's Power:
-
320W
-
Max gate weight:
-
500KG
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MW
-
Model Number:
-
OIC-5
-
Type:
-
Gate Operators
-
Name:
-
AC Swing Gate Opener
-
Power supply:
-
110V/220~230V AC
-
Motor:
-
AC Motor
-
Remote control:
-
2 Pcs
-
Motor's Power:
-
320W
-
Max gate weight:
-
500KG
Product Description

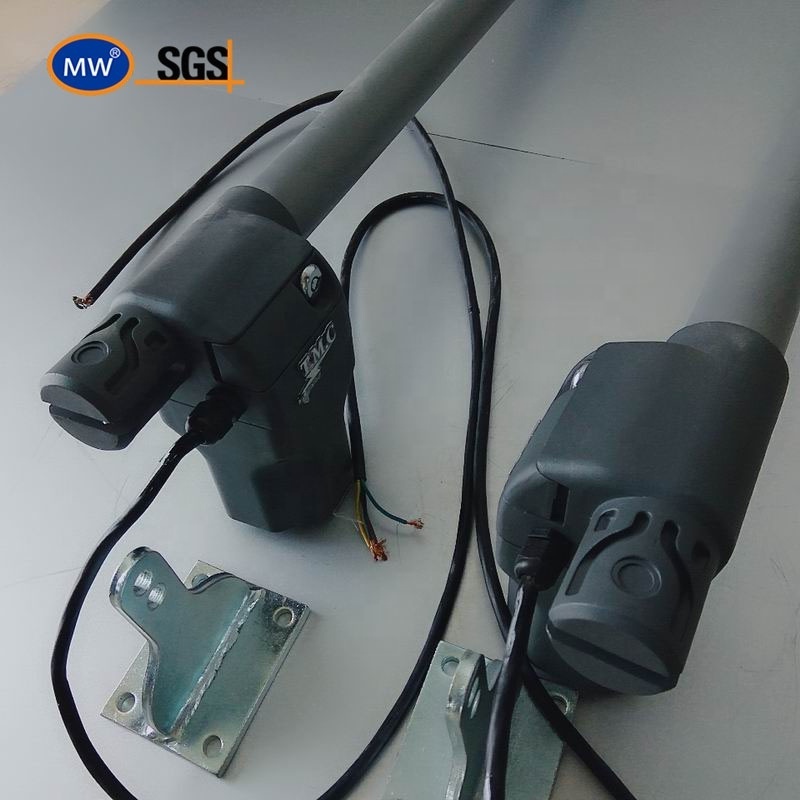

Autogate swing gate opener
| OIC-5-1-230 | |
| Supply Power | 230VAC/50Hz |
| Absorbed Power | 320W |
| Current | 1.5A |
| Motor Speed | 1800RPM |
| Thrust | 2800N |
| Travel | 400MM |
| Operating Environment Temperature | -20℃~50℃ |
| Protection Class | Ip45 |
| Certificates | CE |
| Max Gate Width | 3.5M |
| Max Gate Weight | 500KG |
| OIC-5-2-230 | |
| Supply Power | 230VAC/50Hz |
| Absorbed Power | 320W |
| Current | 1.5A |
| Motor Speed | 1800RPM |
| Thrust | 2800N |
| Travel | 600MM |
| Operating Environment Temperature | -20℃~50℃ |
| Protection Class | Ip45 |
| Certificates | CE |
| Max Gate Width | 4M |
| Max Gate Weight | 500KG |
1. Drived by thread pole,Mechanical limit switch.
2. Outside control box,can choose one or two gates to open or close
3. In case of power failure, the gate can be opened and closed manually after release clutch.
