Quick Details
-
Max. Spindle Speed (r.p.m):
-
120 r.p.m
-
Spindle Bore(mm):
-
200
-
Width of bed (mm):
-
550 mm
-
Spindle Motor Power(kW):
-
2.4
-
Travel (X Axis)(mm):
-
350 mm
-
Travel (Z Axis)(mm):
-
1250 mm
-
Positioning Accuracy (mm):
-
0.02
-
Repeatability (X/Y/Z) (mm):
-
0.01
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WMTCNC
-
Weight (KG):
-
4900
-
Marketing Type:
-
New Product 2023
-
Product name:
-

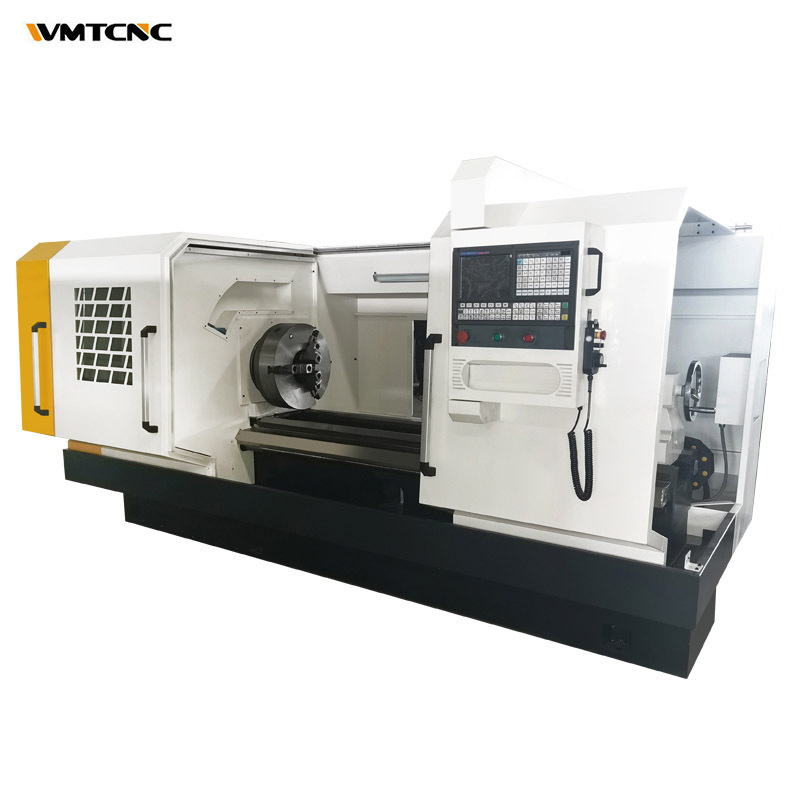

QK1319 CNC pipe threading lathe
-
CNC or Not:
-
CNC
-
Max dia.swing over bed:
-
630mm
-
Automatic Grade:
-
Automatic
-
Accuracy:
-
High accuracy
-
Max.length of work-piece:
-
1500mm
-
Range of spindle speed:
-
L:25-120rpm H:100-500rpm
-
Power (kW):
-
11kw
-
Overall dimensions(L*W*H):
-
3657*1555*1360mm
-
Weight:
-
4000kgs
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
1500
-
Year:
-
New
-
Max. Spindle Speed (r.p.m):
-
120 r.p.m
-
Spindle Bore(mm):
-
200
-
Width of bed (mm):
-
550 mm
-
Spindle Motor Power(kW):
-
2.4
-
Travel (X Axis)(mm):
-
350 mm
-
Travel (Z Axis)(mm):
-
1250 mm
-
Positioning Accuracy (mm):
-
0.02
-
Repeatability (X/Y/Z) (mm):
-
0.01
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
WMTCNC
-
Weight (KG):
-
4900
-
Marketing Type:
-
New Product 2023
-
Product name:
-
QK1319 CNC pipe threading lathe
-
CNC or Not:
-
CNC
-
Max dia.swing over bed:
-
630mm
-
Automatic Grade:
-
Automatic
-
Accuracy:
-
High accuracy
-
Max.length of work-piece:
-
1500mm
-
Range of spindle speed:
-
L:25-120rpm H:100-500rpm
-
Power (kW):
-
11kw
-
Overall dimensions(L*W*H):
-
3657*1555*1360mm
-
Weight:
-
4000kgs
Product Description
Main Features:
CNC pipe thread lathe is a special machine tool for pipe thread turning machining. Its feature is that the spindle bore is
relatively large (usually 130 mm or more), and the spindle box has chucks before and after, in order to facilitate the clamping and processing of large-diameter pipes and rods. Can turn metric, imperial cylindrical, tapered pipe thread, can also be used to replace outer lathes, boring holes, internal and external taper surfaces, and planes, etc. in lathes. The lathes are widely used in the petroleum sector, the gold manufacturing department, chemical industry, hydropower, and geological exploration. Other departments deal with the machining of drill pipes, drill boats, and casings.
relatively large (usually 130 mm or more), and the spindle box has chucks before and after, in order to facilitate the clamping and processing of large-diameter pipes and rods. Can turn metric, imperial cylindrical, tapered pipe thread, can also be used to replace outer lathes, boring holes, internal and external taper surfaces, and planes, etc. in lathes. The lathes are widely used in the petroleum sector, the gold manufacturing department, chemical industry, hydropower, and geological exploration. Other departments deal with the machining of drill pipes, drill boats, and casings.
|
Specification
|
|
QK1319
|
|
|
Max dia.swing over bed
|
|
630mm
|
|
|
Max dia.swing over cross slide
|
|
340mm
|
|
|
Max.length of work-piece
|
|
1500mm
|
|
|
Width of bed
|
|
550mm
|
|
|
Spindle bore
|
|
200mm
|
|
|
Power of spindle motor
|
|
11kw
|
|
|
Mode of spindle speed
|
|
Two gears， smooth adjustment
|
|
|
Range of spindle speed
|
|
L:25-120r/min H:100-500r/min
|
|
|
Max.traverse of X/Z
|
|
X:350mm Z:1250mm
|
|
|
X/Z rapid traverse
|
|
4000mm/min
|
|
|
X-axis motor
|
Speed
|
1500r/min
|
|
|
|
Torgue
|
10N.m
|
|
|
|
Power
|
1.5kw
|
|
|
|
Speed
|
1500r/min
|
|
|
|
Torgue
|
15N.m
|
|
|
|
Power
|
2.3kw
|
|
|
Tailstock quill
|
Diameter
|
100mm
|
|
|
|
Travel
|
250mm
|
|
|
|
Taper
|
Morse NO.5
|
|
|
Electric tool-post
|
Model
|
LDB4-6163A
|
|
|
|
No.of tool stations
|
Vertical four-station
|
|
|
|
Dimension
|
240×240mm
|
|
|
|
Turret indexing time
|
2.6s
|
|
|
Chuck
|
|
K11-500 three jaw chuck
|
|
|
Positioning accuracy
|
|
0.020mm
|
|
|
Repositioning accuracy
|
|
0.010mm
|
|
|
Overall dimensions(L*W*H)
|
|
3657×1555×1360mm
|
|
|
Machine weight
|
|
4.5T
|
|
