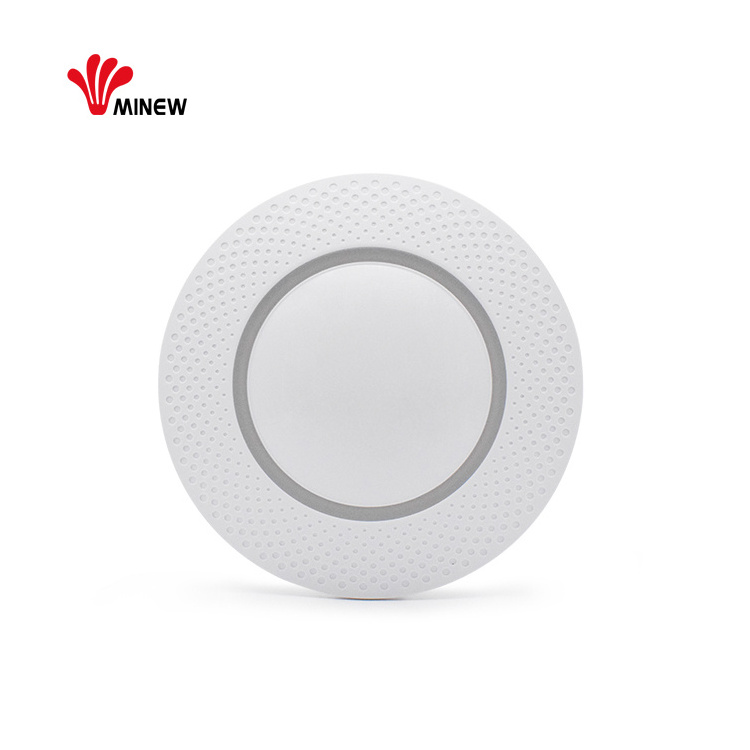

G1 is a Bluetooth low energy (BLE) to Wi-Fi connectivity gateway without the uses of smartphones or apps. The G1 gateway collects the data from iBeacon, Eddystone, BLE sensor and other BLE devices, and then sends to the local server or remote cloud server by HTTP / MQTT protocol over Wi-Fi / Ethernet. The subsequent version G1 Gateway will also implement the connection with BLE devices.

Supports 10/100 Ethernet with 802.3af PoE

Supports firmware upgrade Over-the-Air

Supports HTTP(support SSL/TLS)/MQTT(support SSL/TLS)

Operating temperature: -25℃ to 65℃

WIFI:

Wifi module based on the Mediatek's MT7628/MT7688 575MHz 32-bit Application Processor

2T2R 2.4 GHz with 300 Mbps PHY data rate,802.11b/g/n WiFi

Two USB 2.0 Host Connectors and one TF Card slot

128 Mbyte 16-bit DDR2 RAM

16 Mbyte SPI NOR Flash

RGB LED strip as the status indicator

OpenWrt, Linux distribution for embedded devices.

BLE:

BLE module based on the Nordic's nRF52832 with ARM® Cortex®-M4 64MHz 32-bit processor

BLE module have built-in power amplifier chip,make scanning BLE more sensitive

At least Bluetooth 4.0(Only Bluethooth Low Energy)

Typical Application

iBeacon / Eddystone / other BLE tag receiver

BLE sensor reader / receiver

Asset tracking

Access control management

Advertisement promotion

Indoor location and position

Industrial automation

- Print your logo on the top of gateway;

- Programmer your firmware into gateway;

- Package can be customized if required;

- Prototyping the casing and mold tool design and injection service.
