Fiberglass snake rod sometimes called python rod by its nature passing through under ground ducts by up and down negotiating the duct curvature, thus very convenient to pull the cables, wires inside the duct. What's more, it can be used to located the duct block or damage positions. It has high safety aspects to be applied to underground applications because of its non conductivity of electricity, thus sets a
major safety to site workers.

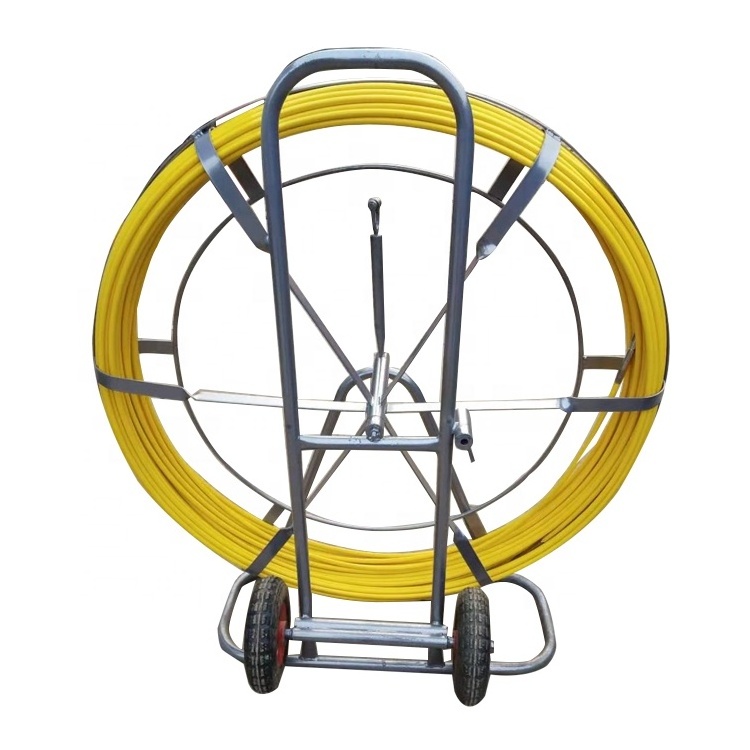

It has been built with rigid sturdy fiberglass tubular fabrication for easy usage at site and can be self coiled in the tubular frame and easily roll like trolley on ground by its wheels fitted at bottom.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
jiujiu
-
Surface Treatment:
-
Fibreglass Reinforced Plastic
-
Product name:
-
Cable pay-off rack
-
Material:
-
Fiber Glass
-
Color:
-
Customized Colors
-
Application temperature:
-
-40~80℃
-
Diameter:
-
11-14mm
-
Length:
-
150-200m
-
Advantage:
-
Higher Strength Light Weight
-
Feature:
-
Durable
-
OEM:
-
Accesptable
-
Tensile strength:
-
46.5Mpa
Quick Details
-
Application:
-
Cable Pulling & Cleaning
-
Technique:
-
Pultrusion
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
jiujiu
-
Surface Treatment:
-
Fibreglass Reinforced Plastic
-
Product name:
-
Cable pay-off rack
-
Material:
-
Fiber Glass
-
Color:
-
Customized Colors
-
Application temperature:
-
-40~80℃
-
Diameter:
-
11-14mm
-
Length:
-
150-200m
-
Advantage:
-
Higher Strength Light Weight
-
Feature:
-
Durable
-
OEM:
-
Accesptable
-
Tensile strength:
-
46.5Mpa
Details Images
Fiberglass snake rod description
|
cifications
|
Rod diameter (mm)
|
Φ4*50
Φ5*50 Φ5*100 Φ6*50 Φ6*100 Φ8*50 Φ8*100 Φ8*150 Φ9*100 Φ10*100 Φ11*100 Φ12*100
|
|
|
Rod length (m)
|
30m~500m
|
|
|
Frame Spec.(mm)
|
1300mm x 450mm x 1330mm
1200mm x 420mm x 1220mm 980mm x 350mm x 1000mm 680mm x 240mm x 700mm 4200mm x 1800mm x 400mm |
|
Materials
|
Fiber glass rod inner,
|
Extruded by fiber glass and high strength resin at high temperature
|
|
|
Fiber glass rod outer
|
High density polyethylene coating
|
|
|
Metal frame
|
Steel with high-temperature sprayed plastic or hot dip galvanized
|
|
Physical properties
|
Fiber glass content
|
75-80%
|
|
|
Density
|
>1.9gr/cm3
|
|
|
Working environment
|
-40°C to +80°C
|
|
|
Minimum pulling strength
|
4000N +/-5%
|
|
|
Consistency of rod
|
137gr/m
|
|
|
Flexural modulus
|
>46.500Mpa
|
|
|
Elongation at break
|
2.5-3%
|
|
|
Min bending radius
|
388mm
|
