Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
FYI
-
Weight:
-
240 KG
-
Product name:
-
Lab ring spinning machine
-
Service:
-
Engineers available to service overseas
-
Diplay:
-
PLC
-
Power supply:
-
220V,50Hz
-
Use:
-
Ring spinning for lab use
-
Keywords:
-
Lab spinning machine
-
Usage:
-
Twsiting Yarn
-
Name:
-
Spinning Machine
Quick Details
-
Marketing Type:
-
New Product 2023
-
Application:
-
Ring spinning
-
Production Capacity:
-
High speed
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
FYI
-
Weight:
-
240 KG
-
Product name:
-
Lab ring spinning machine
-
Service:
-
Engineers available to service overseas
-
Diplay:
-
PLC
-
Power supply:
-
220V,50Hz
-
Use:
-
Ring spinning for lab use
-
Keywords:
-
Lab spinning machine
-
Usage:
-
Twsiting Yarn
-
Name:
-
Spinning Machine

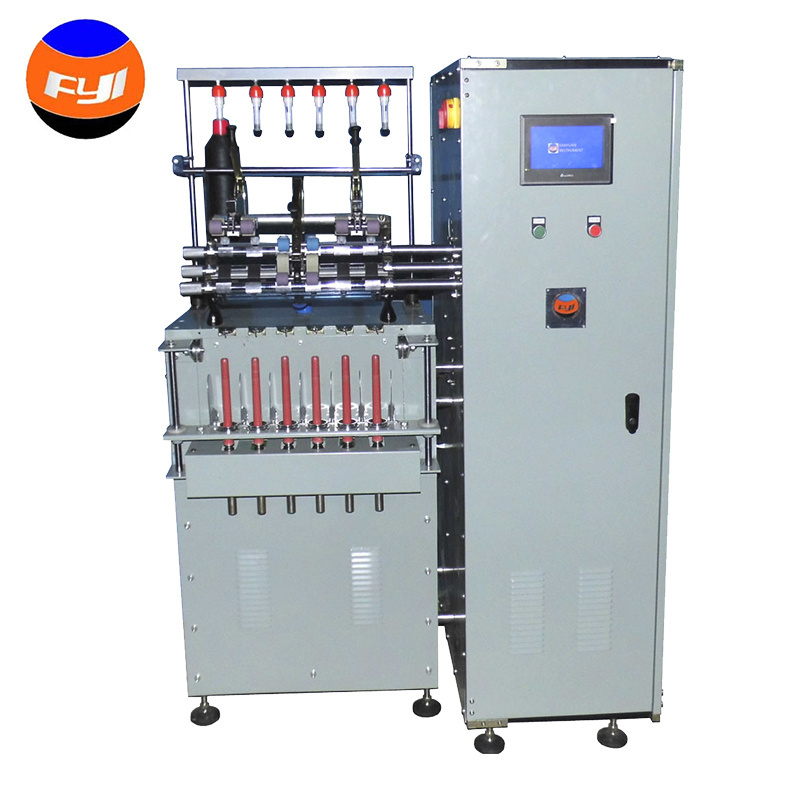

High capacity complete textile machinery Lab Ring Spinning Machine Good quality small mini 6 spindle lab ring spinning machine for wool and cotton
Application of Lab Spinning Machine :
Lab spinning machine i s a ring spinning machine that draws, rewinds, or rolls half-finished roving or sliver into a fine yarn. The roving is made of fine yarn through the drafting of the fine gauze machine and by the drawing and holding of the roving machine.
Ring spinning machine is the main machine of spinning, the output and quality of spinning is a comprehensive reflection of the advantages and disadvantages of each process of spinning process.
Key specification of Lab Spinning Machine :
|
Control mode |
Touch screen & PLC |
|
Number of spindles |
6 |
|
Applicable fiber length |
22~50mm |
|
Draft range |
10~50 |
|
Draft control |
Automatic |
|
Roller diameter |
Front roller: Φ25mm, middle roller: Φ25mm, back roller: Φ25mm |
|
Center distance of rollers |
Front and middle: 43mm
|
|
Pressure mode |
Spring cradle |
|
Twist settable range |
200~2000 twist/m |
|
Twist direction |
S or Z |
|
Max. speed of spindle |
12,000rpm |
|
Spindle gauge |
70mm |
|
Spindle length |
205mm |
|
Ring diameter |
Φ42mm |
|
Yarn density range |
6~99tex (6~100Ne) |
|
Capacity |
Approx. 0.25~1kg/h |
|
Power supply |
AC220V, 50Hz |
