Quick Details
-
Type:
-
Grade 2 Heavy Duty Commercial Door Lock
-
Rose:
-
75mm
-
Function:
-
BK (ET,PS, ST, CL, CM, HT, DM)
-
Finish:
-
SS/32D, SN/15, SC/26D, PB/3, RB/10B...
-
Backset:
-
2-3/4"(70mm) standard, 2-3/8"(60mm) optional
-
Latch:
-
1/2" throw dead latch and spring latch
-
Emergency knob:
-
SUS304
-
Quality:
-
ANSI Grade 2 Exceeds 450,000 Cycles
-
Door Thickness:
-
1-3/8"(35mm) to 2"(50mm)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TRUST
-
Material:
-
Zinc Alloy & SUS304
-
Type:
-
Grade 2 Heavy Duty Commercial Door Lock
-
Rose:
-
75mm
-
Function:
-
BK (ET,PS, ST, CL, CM, HT, DM)
-
Finish:
-
SS/32D, SN/15, SC/26D, PB/3, RB/10B...
-
Backset:
-
2-3/4"(70mm) standard, 2-3/8"(60mm) optional
-
Latch:
-
1/2" throw dead latch and spring latch
-
Emergency knob:
-
SUS304
-
Quality:
-
ANSI Grade 2 Exceeds 450,000 Cycles
-
Door Thickness:
-
1-3/8"(35mm) to 2"(50mm)

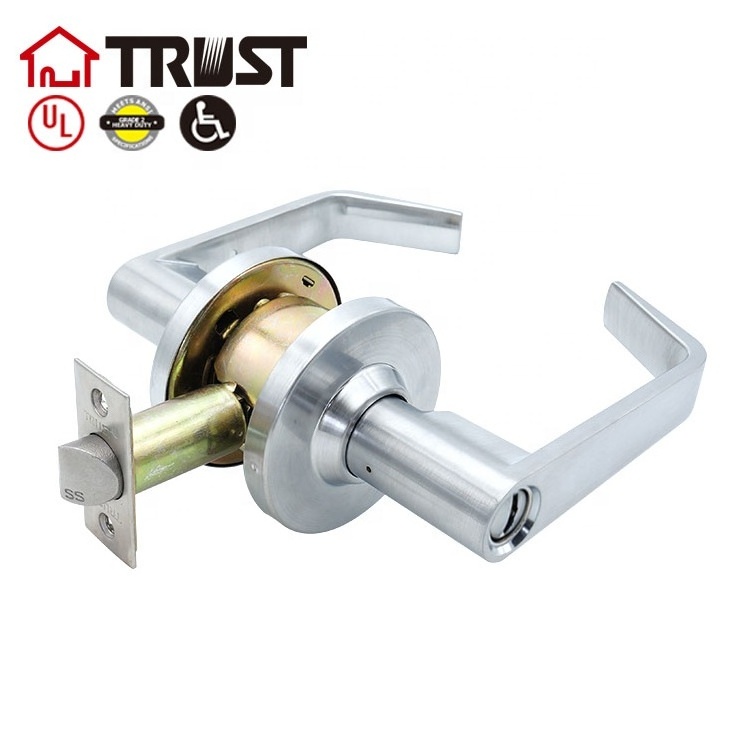

TRUST 44 Series Heavy Duty Non-Handed Commercial Cylindrical Lever Lock Grade 2 UL 3 hrs Door/Office Privacy Function
US Standard ANSI Grade 2 Heavy Duty Commercial Door Lock 4472
**Heavy duty commercial Lever Lock-Meets with ANSI A156.2 Grade 2 Exceeds 400,000 Cycles.
**High Security Level: Thru bolts are provided and recommended for use in high security doors.
1. Cylinder Solid Brass 5 or 6 pin tumbler Removable & rekeyable cylinder
2. Knob/Rosette 304 SS or solid brass , Knob 54mm Diam, Rosette 75mm Diam;
3. Latch:
304SS material tongue & Faceplate; 70mm(2-3/4") as standard; 60mm is optional;
4. Faceplate:
Square corner, standard (LxW): 1" X 2-1/4" (25*57*1.5mm), 1-1/8" X 2-1/4" ( 28.6*57*1.5mm) as optional.
5. Strike:
- heavy gauge T" Shape strike plate LxW: 70x28mm (standard) 2-3/4"(70mm) x 28mmx1.6mm,304SS material.
- Optional ASA strike 4-7/8"(123.8mm) x 1 1/4"(31.7mm) x2.0mm, #430SS material.
6. Backset: 70mm(2-3/4") as standard; 60mm(2-3/8") also available.
7. Door Thick: Fit wood or metal doors from 1-3/8" (35mm) to 2"(50mm) thick as standard;
8. Finish: SS/32D, SN/15, SC/26D, RB/10B, PB/3, AB/5, CP/26 or optional
9. Keyway: SC1, KW1, Ya or C4 optional.
10. Function: ET(Entrance), BK(Privacy), PS(Passage), ST(Storeroom), CL(Classroom), CM( Communication), DM(Dummy)
11. Door Prep: Cross bore 2-1/8"(54mm),Edge bore1"(25mm),Latch face 1"x2-1/4"(25x57mm).
1: We are Specializes in Grade 2 & Grade 3 Knob and Lever Door Lock,Hollow & Solid Lever handle,Mortise Lock Bodyand other Common Hardware accessory for over 10 years in ZhongShan,China.Now We have over 300 staffs and 130,000 Square feet's Factory.
2: We insist Quality and Price frist . I know the high quality and competitive price of Lock products are always attractive. All of our clients from US,Europe,Candan,Australia,Asia and South America are speak highly of our High competitive products quality which meet international Standard and USA ANSI specification for Grade 2 & Grade3.
3: Professional Knowledge about the Lock tool.We have experienced Salesman and engineer. They will give you the most useful suggestion and idea.Fashion and modern design of products always show by our website and attract your eyes.
4 : Serve as the same important.Now the Serve after the deal also important among the modern trade .We will solve all the problem with our true attitude forever.
