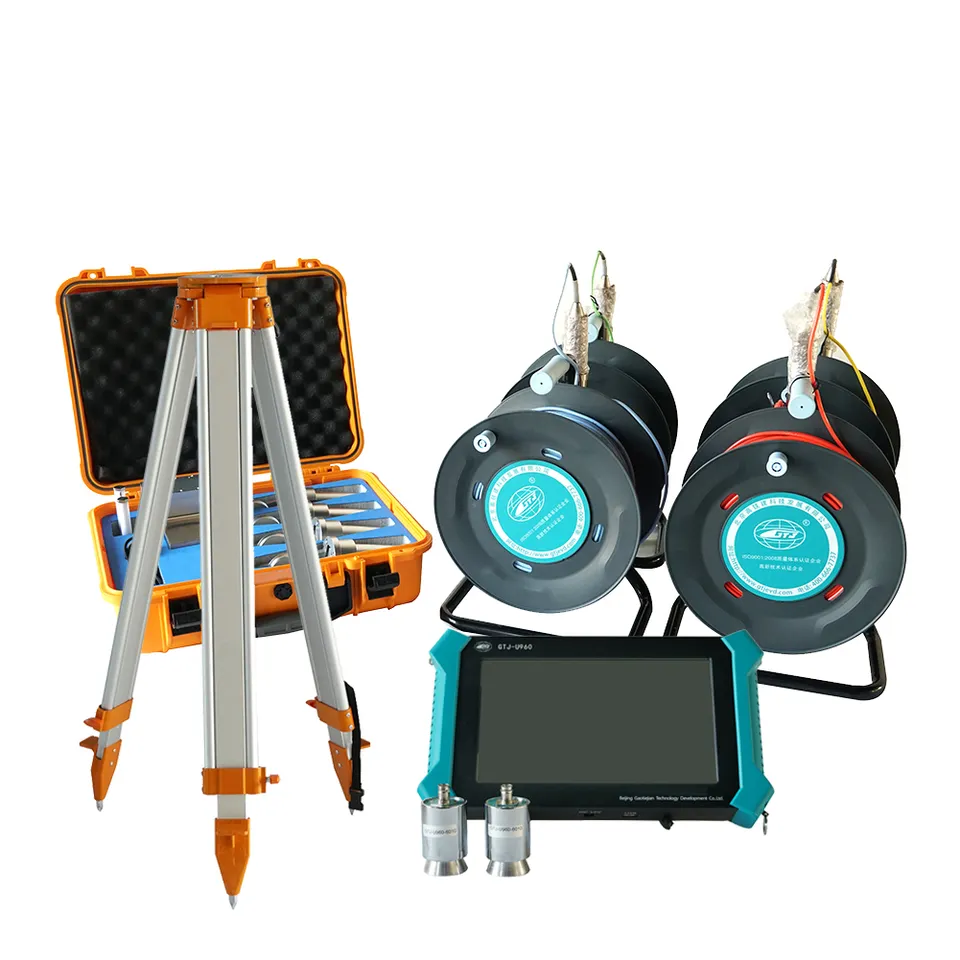

U930 Crosshole Sonic Logging for Pile (double-tube measuring pile)Ultrasonic transmission method for pile integrity
testing;Structural concrete compressive strength, and defect detection;Diaphragm wall integrity testing, which integrates five
functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect detection, crack sounding and
width measurement.Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic
materials such as rock mass and concrete.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
IWIN
-
Model Number:
-
IWIN-U930
-
Product name:
-
Cross Sonic Logging Equipment for Pile Integrity Testing
-
working hours:
-
≥8
-
main control unit:
-
Built-in A8 industrial control motherboard
-
screens:
-
10.1 inch ,TFT
-
Temperature Rang(μs):
-
-10℃~40℃
-
Acoustic time range(μs):
-
±1677700
-
Acoustic time accuracy:
-
0.05
-
Gain accuracy(dB):
-
0.5
-
Power supply:
-
220V ~16V AC/DC
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei
-
Brand Name:
-
IWIN
-
Model Number:
-
IWIN-U930
-
Product name:
-
Cross Sonic Logging Equipment for Pile Integrity Testing
-
working hours:
-
≥8
-
main control unit:
-
Built-in A8 industrial control motherboard
-
screens:
-
10.1 inch ,TFT
-
Temperature Rang(μs):
-
-10℃~40℃
-
Acoustic time range(μs):
-
±1677700
-
Acoustic time accuracy:
-
0.05
-
Gain accuracy(dB):
-
0.5
-
Power supply:
-
220V ~16V AC/DC
Product Display
Products Description
Product function
Characteristic advantage
Newly upgraded wireless cloud transmission function;With stable performance and powerful functions, it is the best choice for users with diverse needs such as engineering inspection, teaching and scientific research;It integrates five functions of pile, strength measurement, defect measurement, sounding and width measurement. Full touch screen operation, simple, convenient, stable and reliable;Multichannel automatic acquisition, automatic recording of high harmony time waveform;The deep recording wheel adopts dustproof and waterproof design.
Parameter table
|
Product model
|
GTJ-U960
|
GTJ-U950
|
GTJ-U930
|
|
|
|
Main control unit
|
Built-in A9 industrial motherboard
|
Built-in A9 industrial motherboard
|
Built-in A8 industrial motherboard
|
|
|
|
Display screen
|
1A inch high brightness T color LCD capacitor screen
|
10 inch high brightness T color LCD capacitor screen
|
10 inch high brightness T color LCD capacitor screen
|
|
|
|
Mode of operation
|
Touch screen
|
Touch screen
|
Touch screen
|
|
|
|
Storage mode
|
Built-in electronic hard disk (>88)+ large capacity disk
|
Built-in electronic hard disk (>8B)+ large capacity disk
|
Built-in electronic hard disk (≥88)+ large capacity disk
|
|
|
|
Data transmission mode
|
(usb transmission, wireless cloud transmission (optional)
|
(usb transmission, wireless cloud transmission (optional)
|
(usb transmission, wireless cloud transmission (optional)
|
|
|
|
Acquisition mode
|
Synchronous and continuous rapid mining
|
Synchronous and continuous rapid mining
|
Single and dual channel automatic continuous fast acquisition
|
|
|
|
Number of channels
|
4 Automatic channel collection
|
3 Automatic channel collection
|
1 transmit +2 receive
|
|
|
|
Number of one-time sections
|
6
|
3
|
2
|
|
|
|
Trigger mode
|
Signal trigger
|
Signal trigger
|
Signal trigger
|
|
|
|
Test mode
|
Flat test, retest, encryption, oblique test
|
Flat test, retest, encryption, oblique test
|
|
|
|
|
Sampling period (US)
|
0.05-409.6 Multi-gear optional
|
0.05-409.6 Multi-gear optional
|
0.05-409.6 Multi-gear optional
|
|
|
|
Acoustic time accuracy (US)
|
0.05
|
0.05
|
0.05
|
|
|
|
Sound time range (USA)
|
Soil 1677700
|
Soil 1677700
|
Soil 1677700
|
|
|
|
Width-measuring function
|
Measuring range: 0-10mm; Measurement accuracy: 0.01m
|
Measuring range: 0-10mm; Measurement accuracy: 0.01m
|
Measuring range: 0-10mm; Measurement accuracy: 0.01m
|
|
|
|
Dynamic range (DB)
|
One hundred and forty-six
|
One hundred and forty-six
|
One hundred and forty-six
|
|
|
|
Band width (KHZ)
|
1-500
|
1-500
|
1-500
|
|
|
|
Receiving sensitivity
|
≤10
|
≤10
|
≤10
|
|
|
|
Gain accuracy (dB)
|
0.5
|
0.5
|
0.5
|
|
|
|
Transmitting voltage (V)
|
125, 250, 500, 1000 four adjustable
|
125, 250, 500, 1000 four adjustable
|
125, 250, 500, 1000 four adjustable
|
|
|
|
Communication interface
|
USB
|
USB
|
USB
|
|
|
|
Working hours (H)
|
≥8
|
≥8
|
≥8
|
|
|
|
Power supply mode
|
Internal lithium battery external 220 V-16 V AC DC
|
Internal lithium battery external 220 V-16 V AC DC
|
Internal lithium battery external 220 V-16 V AC DC
|
|
|
|
Working environment
|
Temperature (-10°C) to +40°C Humidity (RH)
|
Temperature (-10°C) to +40°C Humidity (RH)
|
Temperature (-10°C) to +40°C Humidity (RH)
|
|
|
|
Main engine size
|
335 * 195 * 58
|
335 * 195 * 58
|
335 * 195 * 58
|
|
|
|
Engineering box size
|
400*165*390 2 1120*235*230 1 330*290*470 1
|
400*165*390 2
1120*235*230 1
330*290*470 1
|
330*290*470 1
1120*235*230 1
330*290*470 1
|
|
|
|
Gross product weight
|
51.5 Kg
|
44.5kg
|
37.5kg
|
|
|
Inspection certificate
