Quick Details
-
Voltage:
-
380V 50HZ
-
Power:
-
12KW
-
Dimension(L*W*H):
-
2060x1250x1900mm
-
Weight:
-
4800 kg
-
Model:
-
KBM
-
Speed:
-
120-150pcs/min
-
size:
-
4-24oz
-
Overall Dimension [L*W*H]:
-
2840x1350x1900mm
-
Raw Material:
-
170-350gsm
-
Power Source:
-
380V 3-phase,50Hz
-
Total Power:
-
21kw
-
Working power:
-
15kw
-
Total Weight:
-
4800KG
-
Working Air Source:
-
Airpressure:0.5-0.8MPa; Airoutput: 0.4m/min
Quick Details
-
Production Capacity:
-
150 pcs/min
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
QC
-
Voltage:
-
380V 50HZ
-
Power:
-
12KW
-
Dimension(L*W*H):
-
2060x1250x1900mm
-
Weight:
-
4800 kg
-
Model:
-
KBM
-
Speed:
-
120-150pcs/min
-
size:
-
4-24oz
-
Overall Dimension [L*W*H]:
-
2840x1350x1900mm
-
Raw Material:
-
170-350gsm
-
Power Source:
-
380V 3-phase,50Hz
-
Total Power:
-
21kw
-
Working power:
-
15kw
-
Total Weight:
-
4800KG
-
Working Air Source:
-
Airpressure:0.5-0.8MPa; Airoutput: 0.4m/min
SAMPLE DISPLAY
Products Description

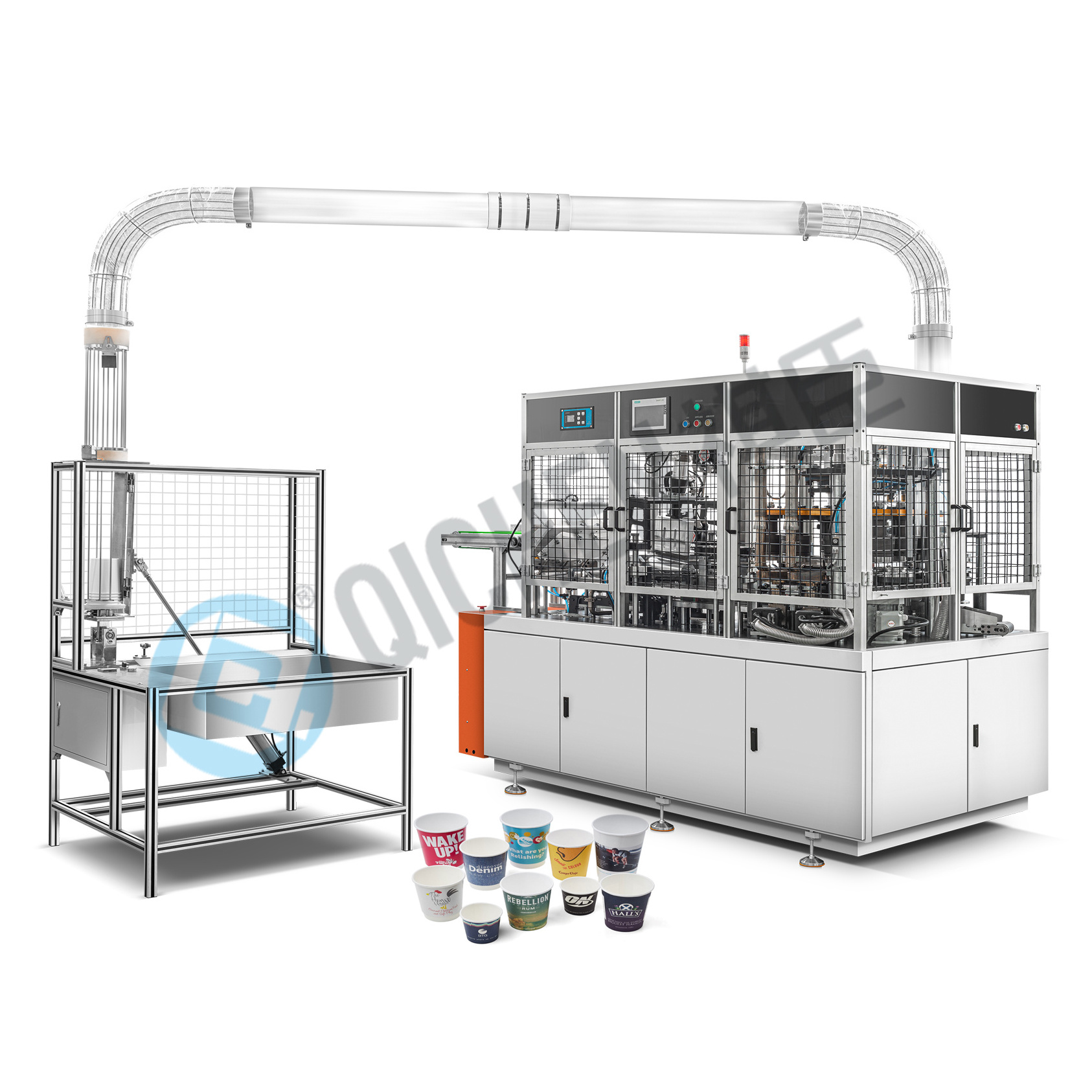

Paper cup machine KBM
* Speed
100-150Pcs/min
* HMI & PLC Program computer control, easy operate, fault auto-stop and easy solution.
* Adopt Open Cam (8-divide) for the dividing moving, compare with index gear box, easy maintenance, stable and reliable, easy
replace broken parts.
* Main mechanism and movement control by quality gears and shaft/axis, which is more efficient than chain axis.
* Only ONE main turntable, more efficient and reliable.
* Self lubricate (automatic oil lubricate),
* 11 sensors detect all steps, any fault auto stop,
* Quality bearing and electronic element, long life,
* HMI & PLC Program computer control, easy operate, fault auto-stop and easy solution.
* Adopt Open Cam (8-divide) for the dividing moving, compare with index gear box, easy maintenance, stable and reliable, easy
replace broken parts.
* Main mechanism and movement control by quality gears and shaft/axis, which is more efficient than chain axis.
* Only ONE main turntable, more efficient and reliable.
* Self lubricate (automatic oil lubricate),
* 11 sensors detect all steps, any fault auto stop,
* Quality bearing and electronic element, long life,
Product Paramenters
|
Number
|
Parameter
|
Numeric value
|
|
1
|
Model
|
KBM
|
|
2
|
Speed
|
100-150Pcs/min
|
|
3
|
Cam Type
|
Open cam
|
|
4
|
Machine Type
|
Paper Cup Machine
|
|
5
|
Cup Height Range
|
Max Height: 115mm
|
|
6
|
Raw Material
|
One or Two Side PE (Or PLA）
|
|
7
|
Power
|
12KW
|
|
8
|
Working Air Source
|
0.35m/min
|
|
9
|
Machine Size[L*W*H]
|
2060x1250x1900mm
|
