Quick Details
-
Brand Name:
-
LANGSHUO
-
Model Number:
-
SYD-0620
-
Ambient temperature:
-
5~50℃
-
Relative humidity:
-
≤85%
-
Packaging Details:
-
Standard Wooden Carton
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LANGSHUO
-
Model Number:
-
SYD-0620
-
Ambient temperature:
-
5~50℃
-
Relative humidity:
-
≤85%
-
Packaging Details:
-
Standard Wooden Carton

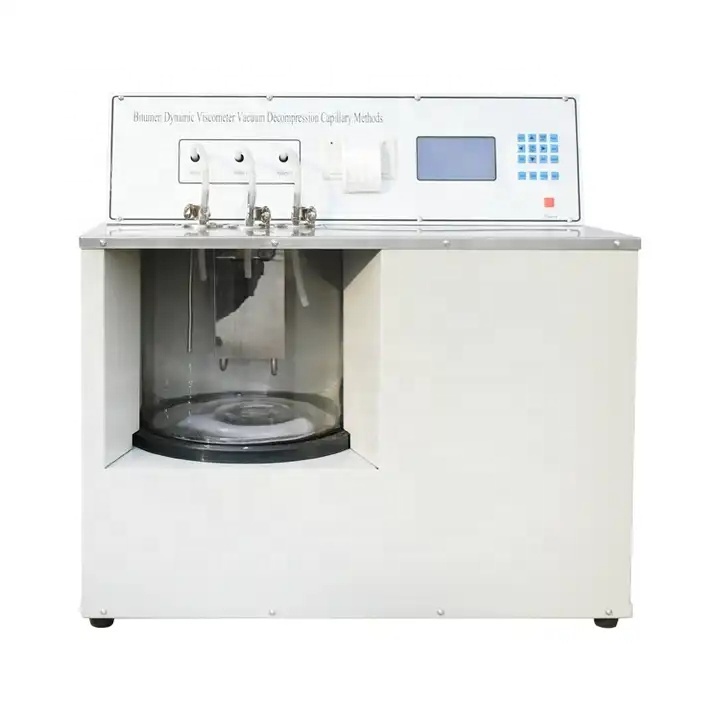

High Precision SYD-0620 Liquid Viscometer Bitumen Dynamic Petroleum Viscosity Instrument
Product Usage and Features
This instrument is suitable for measuring the dynamic viscosity of viscous petroleum asphalt with a vacuum decompression capillary viscometer. Unless otherwise specified, the vacuum degree is 300mmHg.
0036-20. 000Pa.s. This instrument is also suitable for other substances in the range of 0. 0036-20. 000Pa.s by the vacuum capillary method, the test temperature is 60 ℃, the vacuum degree is 300mmHg (40Kpa), and the viscosity is in the range of 0.0036-20.000Pa.s.
0036-20. 000Pa.s. This instrument is also suitable for other substances in the range of 0. 0036-20. 000Pa.s by the vacuum capillary method, the test temperature is 60 ℃, the vacuum degree is 300mmHg (40Kpa), and the viscosity is in the range of 0.0036-20.000Pa.s.
High Precision SYD-0620 Liquid Viscometer Bitumen Dynamic Petroleum Viscosity Instrument
Working Conditions
1. Working power supply: AC220V±10%, 50Hz;
2. Ambient temperature: 5~50℃;
3. Relative humidity: ≤85%;
1. Working power supply: AC220V±10%, 50Hz;
2. Ambient temperature: 5~50℃;
3. Relative humidity: ≤85%;
High Precision SYD-0620 Liquid Viscometer Bitumen Dynamic Petroleum Viscosity Instrument
Parameters
|
Temperature control range
|
0.00~100.00℃.
|
|
Temperature control range
|
±0.1
|
|
Working pressure range
|
300±0.5mmHg
|
|
Timing range
|
0.0~999.9s
|
|
Timing accuracy
|
≤0.05%
|
|
Measuring range
|
about 4.2~580000Pa. s
|
|
Number of samples
|
3 pieces
|
High Precision SYD-0620 Liquid Viscometer Bitumen Dynamic Petroleum Viscosity Instrument
Main Features
1. It has the function of storing and measuring time;
2. It has the function of automatic temperature and vacuum control;
3. With automatic timing function;
High Precision SYD-0620 Liquid Viscometer Bitumen Dynamic Petroleum Viscosity Instrument
Application
