Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HERO
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
2500*2400*1800MM
-
Weight:
-
2300 kg
-
Max. width of unwinding:
-
1100mm
-
Max. diameter of unwinding:
-
800mm
-
Min.width of slitting:
-
30mm
-
Max. diameter of rewinding:
-
600mm
-
Max. speed:
-
450m/min
-
Total power:
-
7kw
-
Power supply:
-
380V/50HZ
-
Overall dimension(L*W*H):
-
2500*2400*1800mm
-
After-sales service:
-
Engineer Avilable Service Machine Overseas
Quick Details
-
Type:
-
Slitting Rewinder
-
Production Capacity:
-
100 Set/Sets per Month
-
Max. workable width:
-
1300mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HERO
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
2500*2400*1800MM
-
Weight:
-
2300 kg
-
Max. width of unwinding:
-
1100mm
-
Max. diameter of unwinding:
-
800mm
-
Min.width of slitting:
-
30mm
-
Max. diameter of rewinding:
-
600mm
-
Max. speed:
-
450m/min
-
Total power:
-
7kw
-
Power supply:
-
380V/50HZ
-
Overall dimension(L*W*H):
-
2500*2400*1800mm
-
After-sales service:
-
Engineer Avilable Service Machine Overseas

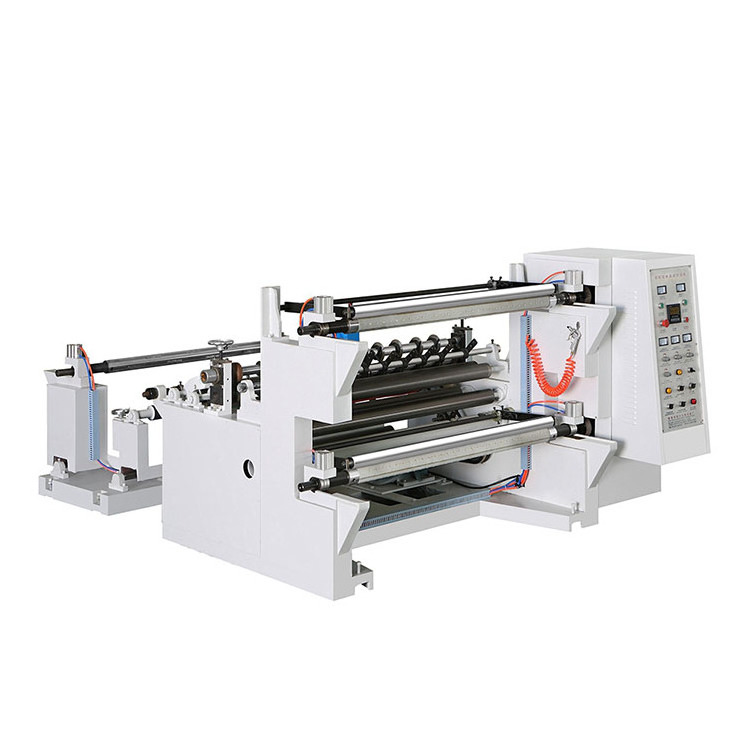

thermal kraft paper nonwoven fabric slitting rewinding machine mini roll stretch film bopp tape slitting machine for non woven
Products Description
Brief Introduction
The slitting machine is mainly used to cut a large roll of paper, film, non-woven fabric, aluminum foil, mica tape and other thin materials into small rolls of different widths before and after printing. It also has the function of checking product quality.
Main Features
1.
Air shaft for unwinding, it is much convenient to change shaft and centering correctly.
2.
Magnetic powder brake unwind, automatic constant tension.
3.
Unwind shaft is installed in the rolling bearing to reduce the mechanical resistance to minimum.
4.
Error correction system takes automatic photoelectric tracking method.
Main Technical Parameter
1. Suitable Slitting Materials: BOPP/PET/PVC/Paper/Complex Film/Laminated Aluminum Film
2.
Thickness of Material :0.012~0.15mm
3.
Max. Mechanical Speed: 180m/min
4.
Max. Slitting and Rewinding Speed: 160m/min
|
Type
|
HRFQ-700A
|
HRFQ-1100A
|
HRFQ-1300A
|
|
Max.Width of Mother Roll
|
700mm
|
1100mm
|
1300mm
|
|
MAX.Diameter of Mother Roll
|
Φ600mm
|
Φ600mm
|
Φ600mm
|
|
Width of Final Roll
|
30-600mm
|
30-600mm
|
30-600mm
|
|
Slitting and
Rewinging Speed |
5-160m/min
|
5-160m/min
|
5-160m/min
|
|
Tolerance of EPC
|
<±0.5mm
|
<±0.5mm
|
<±0.5mm
|
|
Total Power
|
2.7kw
|
3.5kw
|
3.5kw
|
|
Weight of Machine
|
1200kg
|
1500kg
|
1800kg
|
|
Overall Dimension
|
2000×1110×1400mm
|
2400×1110×1400mm
|
2600×1110×1400mm
|
More than the above three specifications, can be customized according to your needs
