Quick Details
-
Model Number:
-
HBSS-19
-
Wire Gauge:
-
1.8-2.8mm
-
Name:
-
Galvanized Wire
-
Common wire diameter:
-
2.2mm, 2.5mm 2.6mm
-
Coil weight:
-
50kg/coil
-
Tensil:
-
550-800MPA
Quick Details
-
Function:
-
making hangers
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SHENGSEN
-
Model Number:
-
HBSS-19
-
Wire Gauge:
-
1.8-2.8mm
-
Name:
-
Galvanized Wire
-
Common wire diameter:
-
2.2mm, 2.5mm 2.6mm
-
Coil weight:
-
50kg/coil
-
Tensil:
-
550-800MPA

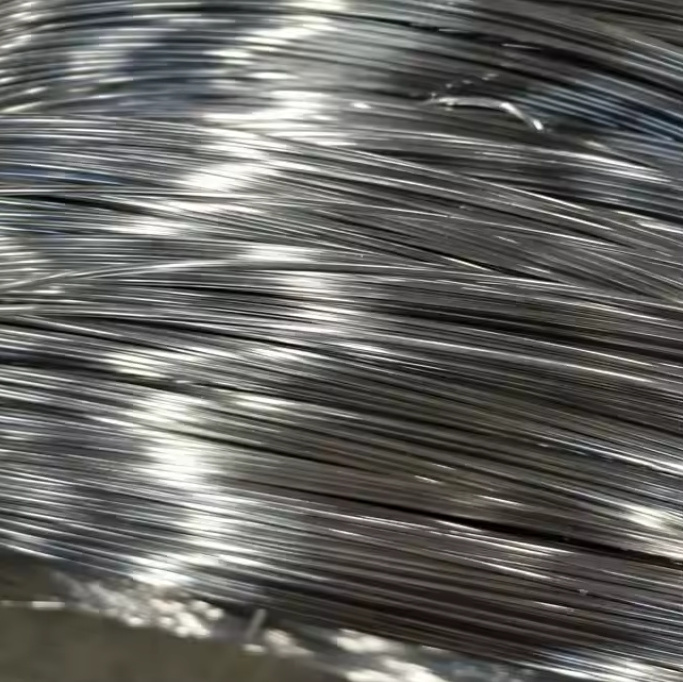

Galvanized Wire for hinger
Galvanized Wire is divided into electro galvanized wire and hot dipped galvanize iron wire. Galvanized wire is also called galvanized iron wire, zinc coated iron wire, low carbon galvanized steel wire, soft bright iron wire. We are the real factory and sell the galvanized wire directly by our factory.
Use:
Electro galvanized wire is mainly used in construction, making of wire nails and wire ropes, express way fencing, binding of flowers and wire mesh weaving. It is mainly used in making nail, construction, communication equipment, medical treatment instrument, express way fencing, binding of flowers, brush, wire mesh weaving, wire redrawing, sieving mesh, craftwork, etc.
Materials: (a). Mild steel wire (b). bullet wire (c). high-carbon steel wire.
Wire gauge size: BWG8# 14# 16# 18# 20# 21# 22#
Processing :
First draw (the material of wire rod to the right wire diameter0---Wire Annealing---Rust Removing--- Acid Washing--- Boiling--- Drying--- Zinc Feeding--- Wire Coiling.
Zinc coating: 8-15g/mm2 electro galvanized, 30-70g/mm2 hot dip galvanized, 100-500g/mm2 heavy duty galvanized zinc coat.
Elongation: 10-15% for low carbon steel wire
Tensile strength: 350-550n/mm2 soft, 550-950n/mm2 hard drawn, 1000-2600n/mm2 high tensile strength.
|
Gauge |
SWG
|
BWG
|
Gauge |
SWG
|
BWG
|
|
0 |
8.230 |
8.636 |
26 |
0.457 |
0.457 |
|
1 |
7.620 |
7.620 |
27 |
0.417 |
0.406 |
|
2 |
7.010 |
7.214 |
28 |
0.376 |
0.356 |
|
3 |
6.401 |
6.579 |
29 |
0.345 |
0.330 |
|
4 |
5.893 |
6.045 |
30 |
0.315 |
0.305 |
|
5 |
5.385 |
5.588 |
31 |
0.295 |
0.254 |
|
6 |
4.877 |
5.156 |
32 |
0.274 |
0.229 |
|
7 |
4.470 |
4.572 |
33 |
0.254 |
0.203 |
|
8 |
4.064 |
4.191 |
34 |
0.234 |
0.178 |
|
9 |
3.658 |
3.759 |
35 |
0.213 |
0.127 |
|
10 |
3.251 |
3.404 |
36 |
0.193 |
0.102 |
|
11 |
2.946 |
3.048 |
37 |
0.173 |
* |
|
12 |
2.642 |
2.769 |
38 |
0.152 |
* |
|
13 |
2.337 |
2.413 |
39 |
0.132 |
* |
|
14 |
2.032 |
2.108 |
40 |
0.122 |
* |
|
15 |
1.829 |
1.829 |
41 |
0.112 |
* |
|
16 |
1.626 |
1.651 |
42 |
0.102 |
* |
|
17 |
1.422 |
1.473 |
43 |
0.091 |
* |
|
18 |
1.219 |
1.245 |
44 |
0.081 |
* |
|
19 |
1.016 |
1.067 |
45 |
0.071 |
* |
|
20 |
0.914 |
0.889 |
46 |
0.061 |
* |
|
21 |
0.813 |
0.813 |
47 |
0.051 |
* |
|
22 |
0.711 |
0.711 |
48 |
0.041 |
* |
|
23 |
0.610 |
0.635 |
49 |
0.031 |
* |
|
24 |
0.559 |
0.559 |
50 |
0.025 |
* |
|
25 |
0.508 |
0.508 |
|
|
