Quick Details
-
Ink Type:
-
Black, blue, Red and Other Color Ink, fast dry ink
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Voltage:
-
AC 100V-240V, 50/60HZ, 1.6A Maximum
-
Dimensions(L*W*H):
-
212 * 135 * 120mm
-
Weight:
-
50kg(includingKGKGKGKGKGKGKGKGKG
-
Marketing Type:
-
Latest Product
-
Machinery Test Report:
-
Provide CE Certificate
-
Core Components:
-
Printing Head
-
Product name:
-
Industrial Inkjet Printer
-
Print Lines:
-
1-8 lines
-
Print Speed:
-
40m/s
-
Data Capacity:
-
2G SD card
-
Control:
-
2-8 inch colorful LCD screen
-
Font Height:
-
2.7mm,3.6mm,5.5mm,8mm,10mm,12.7mm
-
Continuous Printing Time:
-
up to 7 hours
-
Print Material:
-
plastic/paper/metal/glass
-
Print Height:
-
1-18mm
Quick Details
-
Print Dimension:
-
Other
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
Black, blue, Red and Other Color Ink, fast dry ink
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Voltage:
-
AC 100V-240V, 50/60HZ, 1.6A Maximum
-
Dimensions(L*W*H):
-
212 * 135 * 120mm
-
Weight:
-
50kg(includingKGKGKGKGKGKGKGKGKG
-
Marketing Type:
-
Latest Product
-
Machinery Test Report:
-
Provide CE Certificate
-
Core Components:
-
Printing Head
-
Product name:
-
Industrial Inkjet Printer
-
Print Lines:
-
1-8 lines
-
Print Speed:
-
40m/s
-
Data Capacity:
-
2G SD card
-
Control:
-
2-8 inch colorful LCD screen
-
Font Height:
-
2.7mm,3.6mm,5.5mm,8mm,10mm,12.7mm
-
Continuous Printing Time:
-
up to 7 hours
-
Print Material:
-
plastic/paper/metal/glass
-
Print Height:
-
1-18mm

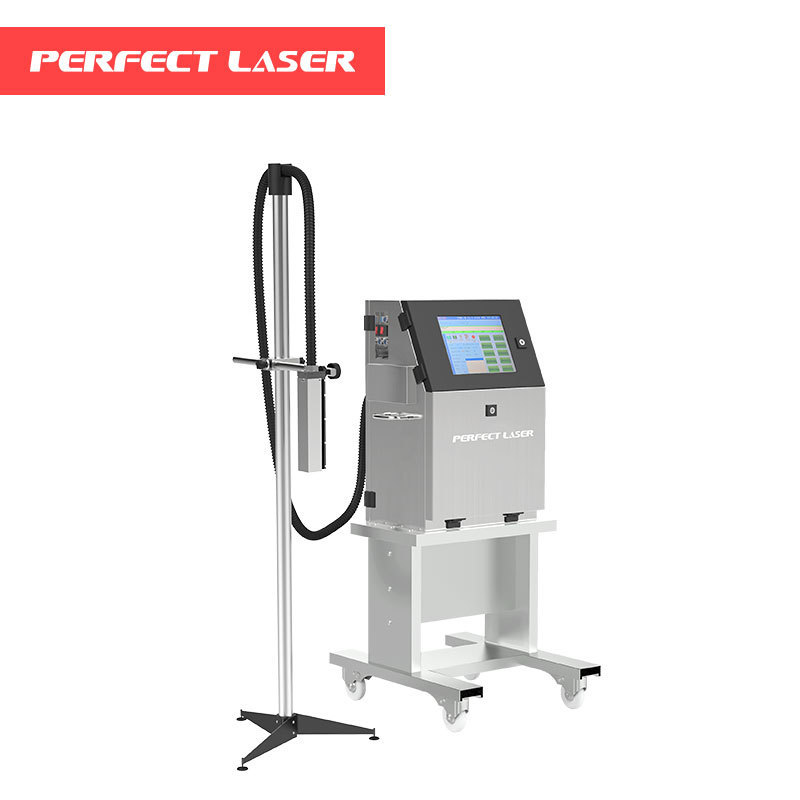

Perfect Laser- Large Format Bottle Sticker Wood Paper Plastic Logo Numbers Date Code QR Inkjet Printers Printing Machines Price
（Model: PM-100）
Contact: Emma Skype: perfectlaser020_1 Wahtsapp/MP: +86 138 8603 4275
Product Description
Perfect Laser is the manufacturer of small character inkjet printers. This model PM-100 small character inkjet printer is a single-chip controlled discontinuity marking system.
It works by applying pressure to the ink in the system by controlling the internal gear pump or supplying compressed gas from outside the machine, ejecting ink through dozens of UM nozzles. Electric ink droplets are deflected in the deflection electric field formed by the deflection electrodes, ejected from the nozzles, and printed at different positions on the surface of the product to form various desired characters, patterns, and other marks.
The small character inkjet printer can also be called life-span ink jet printer, industrial inkjet printer machine, ink-jet printer label, inkjet industrial printer, industrial label printer, barcode label printer and so on.
Main Features:
1.The small character inkjet printer print character size can be adjusted: the font width, height, appropriate range are all can be adjusted and you can also bold any font.
2. High degree of automation: automatic change of date, batch, and serial number to achieve unmanned printing process.
3.Industrial inkjet printer can permanently print the information you need on the surface of different shapes (including plane and curved surface), such as instructions, trademarks, batch numbers, and date of manufacture.
4. The material quality of the fuselage is excellent, for example, the power supply is provided by the most famous Chinese aviation, the pump is imported from Germany, the electronic chip is supplied by Phillips, and the pipeline is also imported from Switzerland.
5. Using a simple and clear operation interface, the operation is more convenient, and personnel training costs can be reduced.
Specification
|
Machine Type
|
Industrial Inkjet Printer
|
|
|
||
|
Model Number
|
PM-100
|
PM-200
|
PM-300
|
||
|
Print Lines
|
1-4 Lines
|
1-5 Lines
|
1-6 Lines
|
||
|
Advantage
|
Colorful LCD Touching Screen
|
Colorful LCD Touching Screen
|
Colorful LCD Touching Screen
|
||
|
Print Height
|
1-15mm (Adjustable)
|
|
|
||
|
Print Distance
|
0-4cm
|
|
|
||
|
Print Speed
|
4.5m/s(5×7pixel)
|
|
|
||
|
Interface
|
In Chinese & English, With Editing Function
|
|
|
||
|
Store Information
|
40 pcs of Jet Printing Information
|
|
|
||
|
Jet Ink Available
|
Black, blue, Red and Other Color Ink
|
|
|
||
|
Font Widened
|
1~9 Times
|
|
|
||
|
Print Content
|
Numbers, Chinese Character, Letter, Logo, Serial Numbers, Random Numbers etc. With in 32×2560pixel.
|
|
|
||
|
Fixed Length Print Function
|
Any Unit, Any Length.
|
|
|
||
Machine Details
Samples&Application
The industrial inkjet printer is widely used:
1. Printing of batch numbers and dates of various kinds of printed matters: such as trademarks, labels, IC cards, membership cards, tickets, certificates, etc.
2. Electronic and electrical: Such as various electronic components and various electronic products, semi-finished products such as batteries, LCD liquid crystals, PCB boards, radiators, inoculation connectors, cable surface and so on.
3. Food industry: packaging of various canned foods, condiments, edible oils, various biscuits and boxed foods.
