Quick Details
-
Brand Name:
-
Hyde-Maosheng
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Product Name:
-
Paddy Separator Machine Grain Seed Cleaning Machine Gravity Table
-
Rated Capacity:
-
3 t/h (beans) seed cleaning plant
-
Application:
-
Seeds, cereal grains, beans, melon seeds, oil seeds, garden seeds etc.
-
Total Power:
-
~42 kW
-
Main Beans Processing Equipment:
-
Vibro screener, destoner, belt gravity separator, packing machine
-
Auxiliary Beans Conveying System:
-
Bucket elevator, conveyor, feeder, flow piping
-
Dust Removal System:
-
Blower, dust collector, air pipings
-
Other Auxiliary Equipment:
-
Temp. storage bins, steel structure and electric control system
-
Cleaning Efficiency:
-
99%
-
Certification:
-
ISO9001:2008, CE, BV, CO
Quick Details
-
Type:
-
Grain Processing Plant
-
Use:
-
Gravity Table
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hyde-Maosheng
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Product Name:
-
Paddy Separator Machine Grain Seed Cleaning Machine Gravity Table
-
Rated Capacity:
-
3 t/h (beans) seed cleaning plant
-
Application:
-
Seeds, cereal grains, beans, melon seeds, oil seeds, garden seeds etc.
-
Total Power:
-
~42 kW
-
Main Beans Processing Equipment:
-
Vibro screener, destoner, belt gravity separator, packing machine
-
Auxiliary Beans Conveying System:
-
Bucket elevator, conveyor, feeder, flow piping
-
Dust Removal System:
-
Blower, dust collector, air pipings
-
Other Auxiliary Equipment:
-
Temp. storage bins, steel structure and electric control system
-
Cleaning Efficiency:
-
99%
-
Certification:
-
ISO9001:2008, CE, BV, CO
KAIFENG HYDE MACHINERY CO., LTD.
MAOSHENG GROUP
u 50 YEARS MANUFACTURING EXPERIENCE SINCE 1976.
u CHINA TOP 10 GRAIN PROCESSING MACHINERY MANUFACTURING COMPANY.
u MEMBER OF 13 CHINA NATIONAL STANDARDS DRAFTER IN GRAIN PROCESSING INDUSTRY.
u 75 PATENTED TECHNOLOGIES AND PRODUCTS.
u 600,000 SQUARE METER PRODUCTION AREA.
u OVER 100 EXPERIENCED ENGINEERS, RESEARCH STAFF AND TECHNICIANS.
u STATE-OF-THE-ART FACILITIES. ADVANCED IMPORTED CNC MACHINES FOR FUNCTION PARTS.
u FULL RANGE OF SERVICE, FROM SINGLE MACHINE TO TURNKEY SYSTEMS IN GRAIN AND FLOUR INDUSTRY.
u MACHINERY AND EQUIPMENT QUALITY TESTED BY DOMESTIC AND GLOBAL MARKET, RICH INSTALLATION AND TROUBLE-SHOOTING EXPERIENCE.

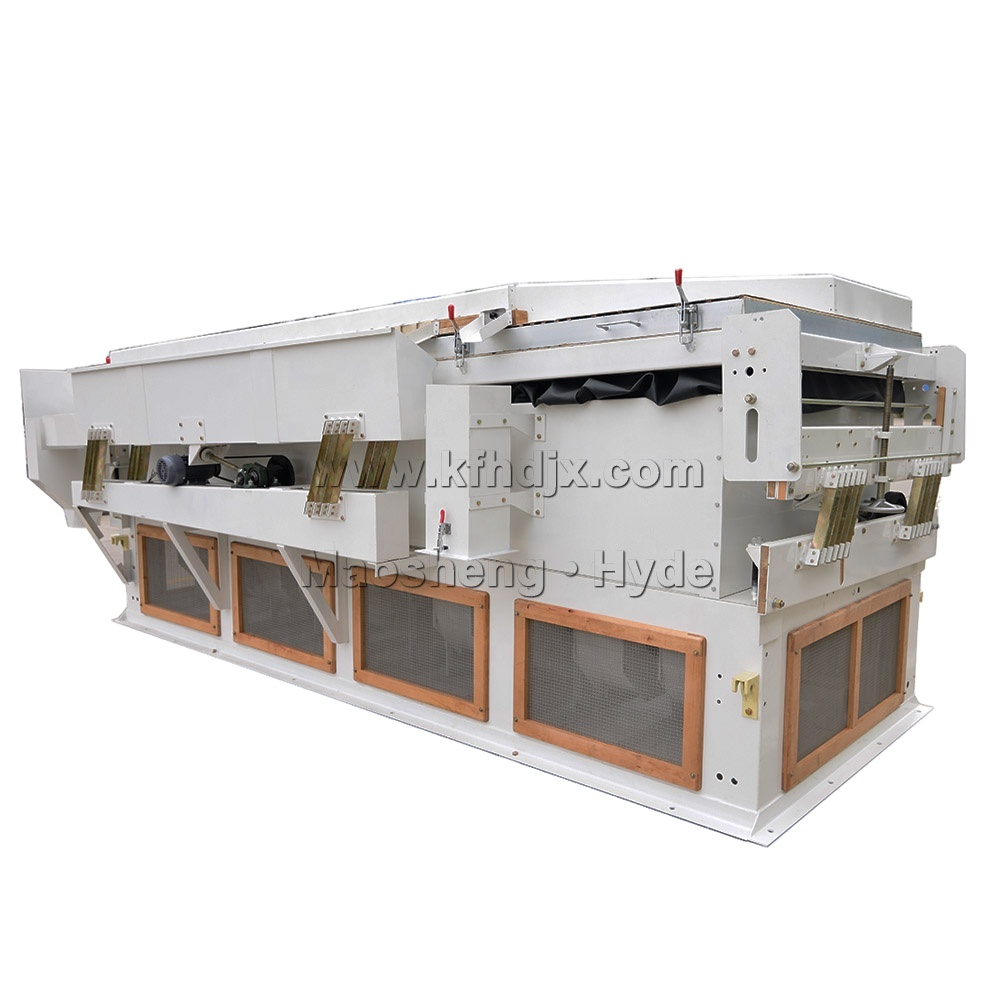

5XZ Gravity Separator :
1) Function: fine cleaning, sorting, separating to remove bad, immature, insect damaged, moldy and germinated seeds, impurities, and admixtures such as same-size stones but with different specific weight.
2) Application: granular grains and seeds.
3) Capacity: 3t/h, 5t/h, 10t/h, 15~20t/h (wheat).
Gravity Separator, also known as gravity separation table, specific gravity separator, or density separator , is key processing machines for the perfect separation of products which are already treated by air screen cleaner and indented cylinder.
Wide Application of 5XZ Seed Gravity Separator:
Wheat Seed Cleaning Machine Agricultural Machinery Other Farm Machine Gravity Separator Maize Beans Gravity Table
5XZ series gravity separator is widely used to remove impurities, admixture, insect damage and immature kernels from cereal grains such as wheat, barley, oilseed rape, peas, beans, cocoa beans, hazelnuts, linseed.
Paddy Separator Machine Grain Seed Cleaning Machine Beans Gravity Table.
Variable Screen Configuration:
| Screen Specification (mesh) | Processing Material |
| 10 | Beans, Peas, Maize |
| 16 | Rice, Wheat, Oats |
| 30 | Alfalfa, Clover, Vegetable Seeds |
| Silk | Small grass seeds |
Working Principle Of 5 XZ Gravity Separator:
Wheat Seed Cleaning Machine Agricultural Machinery Other Farm Machine Gravity Separator Maize Beans Gravity Table
Seeds and grains can be separated and graded by the suspension and friction characteristics.
Seeds flow over the inclined vibrating screen covered rectangular deck, in which pressurized air is forced through causing the material to be suspended and stratify according to its specific weight. The heavy particles float uphill while the light particles travel downhill.
Rectangular deck makes the particles travel a longer distance, ensuring the cleaner separation of light and heavy particles and the lowest percentage of middlings, improving the quality of the end product.
Advantages of 5XZ Gravity Separator:
Wheat Seed Cleaning Machine Agricultural Machinery Other Farm Machine Gravity Separator Maize Beans Gravity Table
Hyde 5XZ seed gravity separators are designed with accuracy in separation of as slight as 0.5% difference in specific density.
Optimal effects rely on the precise adjustment of feed rate, screen deck inclination (lengthwise and sidewise), vibration speed and air volume .
Structural Features:
1) Heavy duty and robust steel structural frame to absorb the vibrations.
2) Fans are dynamically balanced with individual adjustable controller for each fan for precise control of air flow and easy maintenance.
3) Cellular vertical air distribution device mounted under the deck make the air lifting evenly.
4) Square woven mesh screen made of steel wire with no bottom fabric ensures air passing through no dead band.
5) Variable feed speed, deck inclination, vibration speed and air volume by individual control units.
6) Safe guards to all moving parts ensure the safe operation.
7) Environmentally friendly with screen dedusting cover, low noise.
Special Features:
1) Built-in fans are air-conditioner fans with lower noise, higher pressure and larger amount of wind.
2) Larger motor for heavy seed.
3) Self-lubrication system can be added.
4) Stainless steel available for edible products.
Technical Specification
of 5XZ Seed Gravity Separator:
| Item | Unit |
Specification |
||||
| Model | 5XZ-3 | 5XZ-5 | 5XZ-10 | 5XZ-15/20 | ||
| Dimension (L x W x H) | mm | 2050×1350×1200 | 3840×2110×1710 | 4300×2300×2500 | 5100×2300×2700 | |
| Total Weight | kg | 1650 | 1900 | 2150 | 3500 | |
| Rated Capacity | t/h | 3.0 | 5.0 | 10.0 | 15~20 | |
| Total Power | kW | 7.45 | 9.55 | 14.7 | 21.3 | |
| Amplitude | mm | 7 | 7 | 7 | 7 | |
| Dip Angle | ° | 30 | 30 | 30 | 30 | |
| Frequency | 1/s | 300~800 | 300~800 | 300~800 | 300~800 | |
| Screen Area | m2 | 2.24 | 3.4 | 5.36 | 8 | |
| Selection Efficiency | % | ≥98.5 | ≥98.5 | ≥98.5 | ≥98.5 | |
| Cleaning Efficiency | Light | % | ≥95 | ≥95 | ≥95 | ≥95 |
| Heavy | % | ≥90 | ≥90 | ≥90 | ≥90 | |
5XZ Seed Gravity Separator in Seed Cleaning Plants:
