Quick Details
-
Brand Name:
-
EBASEE
-
Model Number:
-
EBS5G
-
IP level:
-
IP20
-
Item:
-
Isolating Switches
-
Rated insulation voltage:
-
230/400V
-
Breaking Capacity:
-
63A
-
Standard:
-
IEC60947-3
-
Website:
-
www.ebasee.com
-
Pole:
-
1Pole,2 Pole,3 Pole,4 Pole
-
Phase:
-
Single Phase,Three Phase
-
Packaging:
-
Paper Box
-
Service:
-
OEM OED
-
Sample:
-
Available
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
240/415V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
EBASEE
-
Model Number:
-
EBS5G
-
IP level:
-
IP20
-
Item:
-
Isolating Switches
-
Rated insulation voltage:
-
230/400V
-
Breaking Capacity:
-
63A
-
Standard:
-
IEC60947-3
-
Website:
-
www.ebasee.com
-
Pole:
-
1Pole,2 Pole,3 Pole,4 Pole
-
Phase:
-
Single Phase,Three Phase
-
Packaging:
-
Paper Box
-
Service:
-
OEM OED
-
Sample:
-
Available
Function

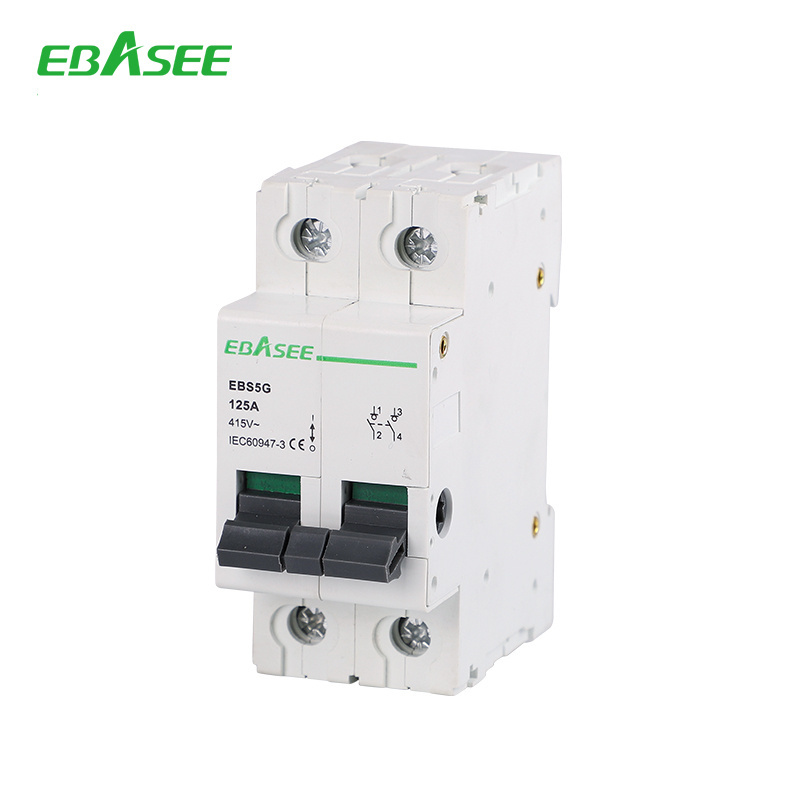

EBS5G is also know as isolating switch HL30.
n Capable of switch electric circuit with load
n Adaptable to padlock device
n Contact position indication
n Capable of quickly releasing stored energy operation
n High short-circuit current withstand capacity
n Used as main switch for household or similar installation
Technical Parameter
|
Model name |
|
EBS5G |
|
Standard |
|
IEC60947-3 |
|
Poles |
|
1P, 2P, 3P, 4P |
|
Rated current In(A) |
|
16, 25, 40, 63 |
|
Rated voltage Un(V) |
|
230/400V AC 50/60Hz |
|
Rated short-circuit making capacity |
|
6kA |
|
Rated withstand current |
|
1kA within 1sec |
|
Connection capacity |
|
Rigid conductor 25mm 2 |
|
Connection terminal |
|
Screw terminal Pillar terminal with clamp |
|
Installation |
|
Installed on 35mm DIN rail |
Applicable Working and bus bar connection
|
Ambient temperature |
|
-5~+40℃ , the average value cannot exceed to +35 ℃ within 24h |
|
Altitude |
|
≤ 2,000m |
|
Relative humidity |
|
≤ 95% |
|
Pollution level |
|
II . |
|
Installation location |
|
Mount on the place where has no obvious vibration or impact |
