- Product Details
- {{item.text}}
Quick Details
-
Product name:
-

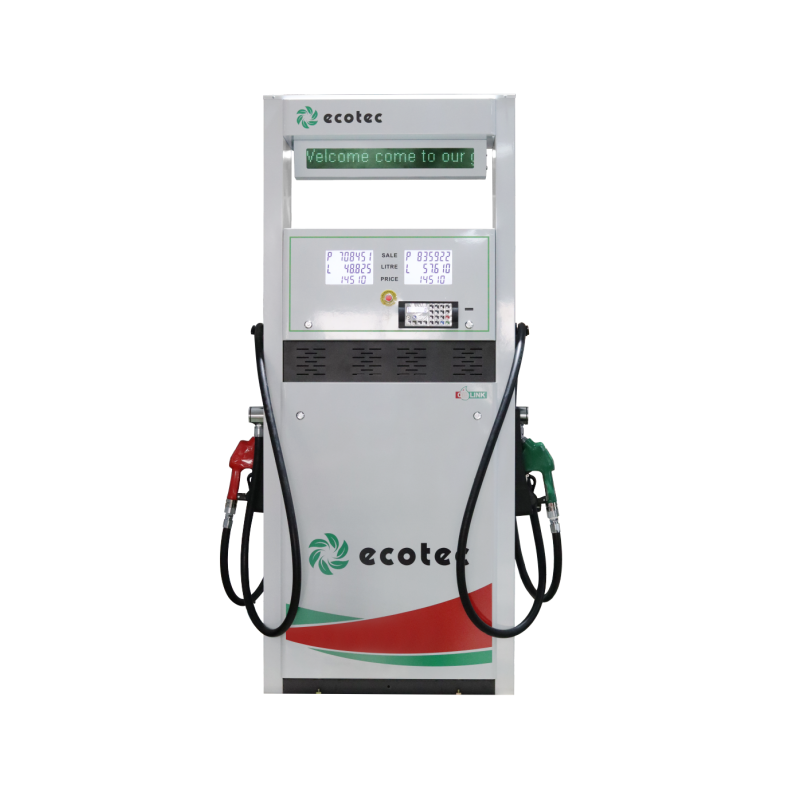

Fuel Dispenser
-
Trademark:
-
ECOTEC
-
HS Code:
-
84136100
-
Model:
-
E224
-
Certificates:
-
ISO9001
-
Voltage:
-
110V/220V/380V
-
Flow Rate:
-
5lpm-120lpm
-
Specification:
-
Steel
-
Display:
-
4 Display
-
Transport Package:
-
Standard Carton or Wooden for Transportation
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ecotec
-
Model Number:
-
E224
-
Product name:
-
Fuel Dispenser
-
Trademark:
-
ECOTEC
-
HS Code:
-
84136100
-
Model:
-
E224
-
Certificates:
-
ISO9001
-
Voltage:
-
110V/220V/380V
-
Flow Rate:
-
5lpm-120lpm
-
Specification:
-
Steel
-
Display:
-
4 Display
-
Transport Package:
-
Standard Carton or Wooden for Transportation
Ecotec fuel dispenser can be designed for varies nozzle number, pump available for Tokheim, Tatsuno, Bennett, flow meter available for Tatsuno, bennett, Gilbarco and Wayne Flow meter, options for both .suction and submersible, nozzle front and nozzle side, media player and automation
Ecotec are able to design and manufacture any kind of shape with any function or standard, customer's design, color, logo and all the special request are welcomed, also we can keep all the products with same performance
| ump | Type | Optional |
| Inlet Pressure | ≥54kPa. | |
| Flow rate (L/min.) | 55±5 | |
| Suction Distance (m) | 6(vertical meter) / 50(horizontal meter) | |
| Flow Meter | Type | Optional |
| Accuracy | ±0.2% | |
| Motor | Voltage(V) | 110V/220V/380V,50Hz/60Hz |
| Capacity(hp) | 1HP(0.75kw) | |
| Input Voltage | 110V/220V/380V,50Hz/60Hz | |
| Nozzle | Auto Shut-off Nozzle | |
| Environmental Condition | -40ºC~~+55ºC | |
| Control Type | Solenoid Vale Control Type | |
| Preset | Function Provided(Small LCD Indicator) | |
| Display(Counter) | Type | LCD and Bright Backlight |
| Display(Counter) | Digit of Volume | 0~~999,999(6 Digits),Decimal point can be changed |
| Digit of Amount | 0~~999,999(6 Digits),Decimal point can be changed | |
| Digit of Unit price | 0~~9999(4 Digits),Decimal point can be changed | |
| Digit of Total Range | 0~~99,999,999,99 | |
| Optional Display | Type | LCD and Bright Backlight |
| Digit of Volume | 0~~99,999,999(8 Digits),Decimal point can be changed | |
| Digit of Amount | 0~~99,999,999(8 Digits),Decimal point can be changed | |
| Digit of Unit price | 0~~999999(6 Digits),Decimal point can be changed | |
| Digit of Total Range | 0~~99,999,999,99 | |
| Totalizer | 1~~9,999,999 | |
| Hose | 4.5m | |
| Weight | 205kg | |
| Dimension(L×W×H) | 1060*600*2200(mm) | |
| Dimension(L×W×H)Of Qty of Container | 40ft: 44 20ft: 22 | |
Standard Carton or Wooden for transportation
Warranty : 12 months
