HKT LoRaWAN smart door lock remote wireless control mobile APP application + IC card + password + key Smart Lock smart Door Lock

Product Overview

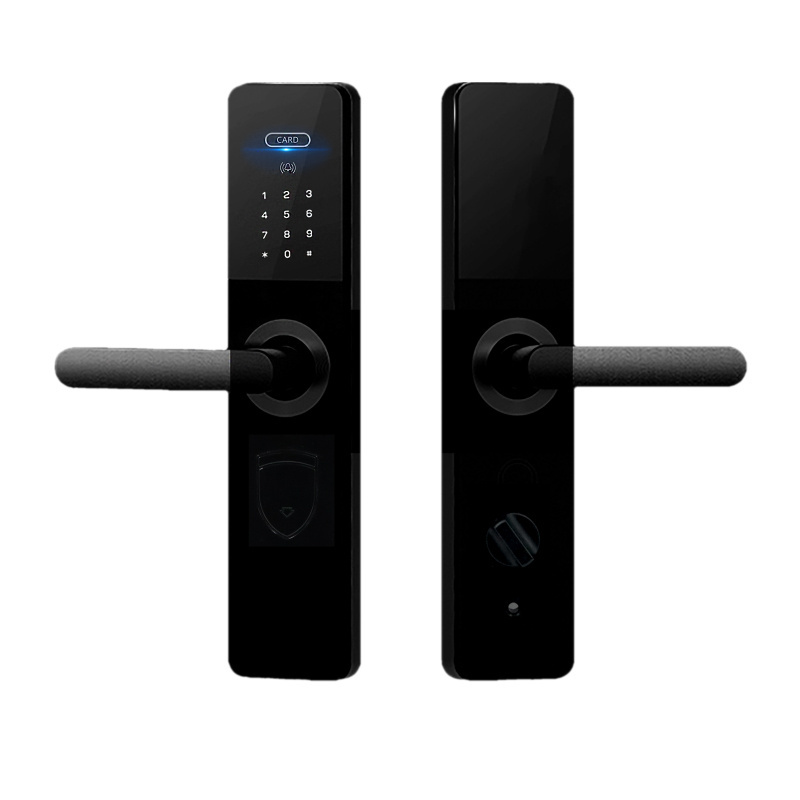

SDL-100 is an intelligent networked door lock with remote control function . The door lock has a built - in communication module supporting LoRaWAN 1.0.2 communication protocol , which can realize remote password distribution , password management , card management , remote reporting of door lock status and other management functions . It also opens APIs to integrate with third - party application systems , providing users with a convenient and fast management channel . At the same time , the door lock is simple and elegant in appearance , fast and convenient in installation , and simple and convenient in platform connection . It has been used in batch in smart apartments , rental houses , smart schools and other occasions .

Support password preset

Temporary password distribution is supported, and the arrival rate is 100%

You can use APP to set the lock quickly and easily

User password can be added through APP

Alarm information push can be received through APP

Information records can be viewed through APP:

1. Press the front handle to open the door

2. Locking information of upper advance handle

3. Locking information of rear lock safety button

Performance Parameter

Lock body: GB 6068 mechanical lock body

Lock cylinder: Grade C

Material: zinc alloy solid handle

Suitable door thickness: 40mm~80mm

Heaven and earth hook: optional

Input power: 4 1.5V "AA" alkaline batteries

Energy saving design: extra long standby for more than 15 months (calculated by 10 times/day)

Impact vibration test: 15g 11ms, three times per axial direction

Salt spray test: 140 hours

Working temperature: - 25 ℃ ~55 ℃

Operating humidity: 20% RH~85% RH

Storage temperature: - 40 ℃ ~60 ℃

Storage humidity: < 85% RH

Product size (except handle): 330mm × 72mm × 25mm

P roduct Dimension

Unit: mm, Tolerance: ±0.2mm.

Basic Function

Support 16 digit virtual password unlocking to prevent peeping , Support the setting of the normally open function, and do not automatically lock when closing the door

Support one click restart without clearing local settings

Support voice prompt of low battery

Support Micro USB emergency power supply

Support to lift the handle outside the door to realize the locking , Support to rotate the safety button inside the door to lock the door

Technical Indicators

Standard LoRaWAN 1.0.2 communication protocol

Support EU868/US915/AS923

Docking with cloud platform

PC side Web management platform and mobile side WeChat and APP applications

Unlock: mobile phone application, password, card (including ID card), mechanical key unlock

Quantity: 200-500/gateway

Locking: lift the handle outside the door; Twist the anti lock knob Alarm information push can be received through APP

Local alarm: anti skidding alarm, continuous error alarm, key unlocking alarm

Power supply: four No. 5 batteries

Power: door lock voice prompt, mobile phone application terminal reminder

Emergency : USB emergency power supply

Provide open APIs to integrate with third-party application systems (such as hotel booking system)

Door locks can be registered individually or in batches

Packing List
