Quick Details
-
Power Source::
-
Manual
-
Capacity::
-
0.5t-10t
-
Load chain::
-
G80
-
Lifting height::
-
1 to 10 m
-
Color::
-
Black, Yellow, Orange, White, Blue
-
Chain painting::
-
Galvanzied or Black coating
-
Application::
-
Construction Site Lifter
-
Hook::
-
Forged
-
Brand::
-
LOMBA or OEM
Quick Details
-
Model Number:
-
VD
-
Place of Origin:
-
Guangdong, China
-
Product name::
-
Chain Hoist
-
Power Source::
-
Manual
-
Capacity::
-
0.5t-10t
-
Load chain::
-
G80
-
Lifting height::
-
1 to 10 m
-
Color::
-
Black, Yellow, Orange, White, Blue
-
Chain painting::
-
Galvanzied or Black coating
-
Application::
-
Construction Site Lifter
-
Hook::
-
Forged
-
Brand::
-
LOMBA or OEM

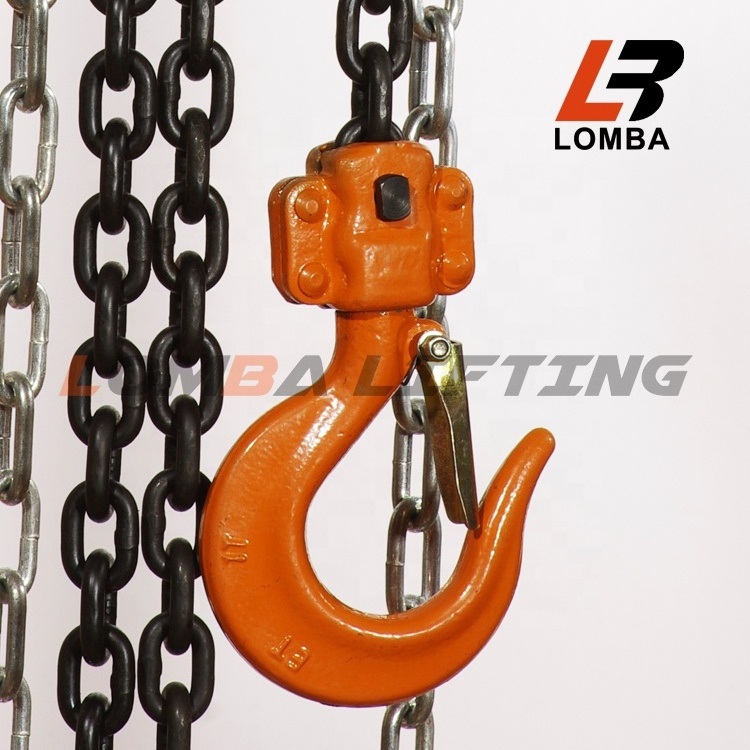

VD Manual Operated Chain Fall Engine Hoist Block And Tackle Lift
Technical Benefits
1. SLH-E type, robust all steel construction;
2. Capacity ranges from 0.5t to 10t;
3. Brand heavy duty and compact design to meet all pertinent world standard;
4. Reliable disc brake, premium grade alloy load chain and zinc plated hand chain as standard;
5. Drop -forged and expertly heat treated hooks for great strength and long wearing.
|
Model |
SLH-0.25E |
SLH-0.5E |
SLH-1E |
SLH-1.5E |
SLH-2E |
SLH-3E |
SLH-5E |
SLH-10E |
|
|
Capacity(t) |
0.25 |
0.5 |
1.0 |
1.5 |
2 |
3 |
5 |
10 |
|
|
Standard lift(m) |
2.5 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
|
|
Running Test load(kn) |
3.1 |
6.2 |
12.5 |
18.7 |
25 |
37.5 |
62.5 |
125 |
|
|
Chainpull to lift full load(N) |
190 |
200 |
27 |
343 |
387 |
416 |
375 |
392 |
|
|
No.of falls of load chain |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
4 |
|
|
Load chain diameter (mm) |
4 |
5 |
6 |
7.1 |
8 |
7.1 |
9 |
9 |
|
|
Dimensions(mm) |
A |
104 |
117 |
133 |
178 |
178 |
155 |
164 |
164 |
|
B |
100 |
121 |
150 |
154 |
154 |
197 |
253 |
382 |
|
|
C |
230 |
285 |
325 |
390 |
395 |
450 |
603 |
768 |
|
|
D |
30 |
36 |
38 |
48 |
48 |
50 |
64 |
85 |
|
|
K |
23 |
27 |
28 |
35 |
35 |
40 |
50 |
64 |
|
|
Net weight(kg) |
5 |
8.5 |
11 |
16 |
18.5 |
24 |
37 |
73.5 |
|
|
Packing measurement(cm) |
17x13x12 |
22x15x19.5 |
23x18x19.5 |
28x18x19.5 |
28x21x24 |
32x21x26 |
40x21x31 |
50x41x21 |
|
|
Extra weight per meter of extra lift(kg) |
0.9 |
1.36 |
1.57 |
2.17 |
2.3 |
3.2 |
4.6 |
8.2 |
|
