Quick Details
-
Brand Name:
-
YK
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
LED Lighting Waterproof High Airflow M6*1.0mm Screw in Vent
-
IP:
-
IP67/IP68 can be customized
-
membrane material:
-
e-PTFE
-
Certificate:
-
ISO9001 / ROHS/CE/SGS
-
MOQ:
-
100
-
Temperature resistance:
-
-40℃ ~ +125℃
-
Water entry pressure:
-
-120mbar(>1M)
-
Airflow:
-
129.2ml/min (p=1.25mbar)
-
Color:
-
Black
Quick Details
-
Port Size:
-
M6 *1.0mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
YK-PO1M06P3A-C38F
-
Brand Name:
-
YK
-
Standard or Nonstandard:
-
Standard
-
Product name:
-
LED Lighting Waterproof High Airflow M6*1.0mm Screw in Vent
-
IP:
-
IP67/IP68 can be customized
-
membrane material:
-
e-PTFE
-
Certificate:
-
ISO9001 / ROHS/CE/SGS
-
MOQ:
-
100
-
Temperature resistance:
-
-40℃ ~ +125℃
-
Water entry pressure:
-
-120mbar(>1M)
-
Airflow:
-
129.2ml/min (p=1.25mbar)
-
Color:
-
Black

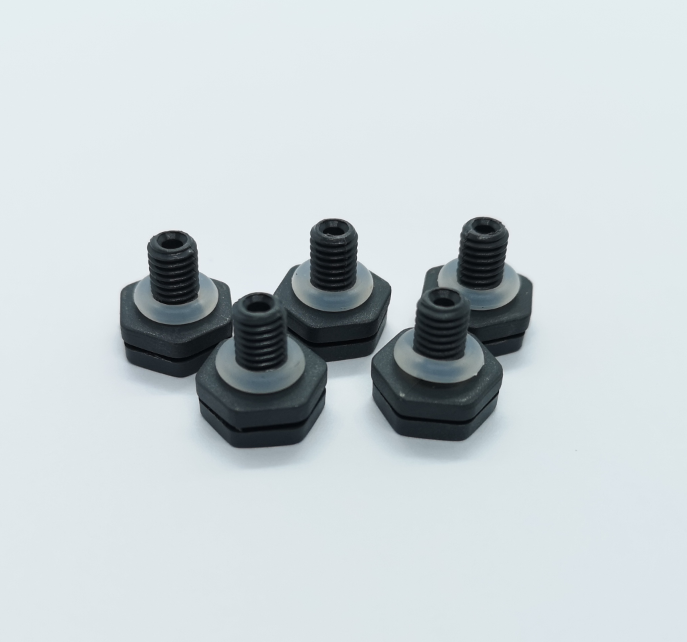

LED Lighting Waterproof High Airflow M6*1.0mm Screw in Vent
Benefit for Outdoor Equipment
1.Vent in high airflow to balance the pressure between outside and inside of the enclosure and lower down the strain for the housing
2.Inserting the oleophobic and hydrophobic membrane into the PP body to make it chemically inert and UV resistant.
3. It is easy to install which is just to screw into the housing, and with the silica sealing ring at the opening to ensure the air
tightness
4.Evidently reduces fog and condensation
5.The e-PTFE membrane can stop the salt crystal and vapor permeability to make it a long service life and free from breakdown or maintenance even under harsh working environment
LED application special waterproof protective products, basing on the single LED wick assembling installation, and high durabilities such as high Temperature,, balancing pressure and preventing condensation. Not only with convenient installation construction, practical price and high value, increase LED longevity.
| Company Name | Huizhou Youkun Electronic Technology Co., Ltd |
| Focus on | Professional protective vent development and manufacture |
| Product Features |
waterproof , oil-resistant , sound through , decompression , anti-explosion , radiating and filtration in e-PTFE |
| Export Country | Europe, North America, South America, Middle East, Southern-east Asia, etc |
| Website | https://you-kun.en.alibaba.com/ |
| OEM & ODM | Yes |
| Operation Principle | Customer focus, Quality first, Credit foremost |
Product Description
YK-PWVM06-D38B
is Screw Waterproof Vent valve that made of PC.
It reaches IP67 and conforms with RoHS certificate after test and inspection. With e-PTFE membrane inserted inside, it performs a very good resistance of UV and salt fog .
Product performance
|
Items |
Product D etails |
|
P/N |
YK-PO3M06P3A-C38F |
|
Size |
M6*1.0 |
|
Main material |
PC |
|
Membrane |
E- ptfe |
|
Color |
Black |
|
Workmanship |
One time forming |
|
Seal ring |
O-ring (silica gel) |
|
Airflow |
≥170ml/min p=10Kpa |
|
Temperature |
-40 ℃ —125 ℃ |
|
IP Rate |
IP67 |
|
Water Resistance |
12Kpa (> 1m ) |
