- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
SpeedyBee F405 V3 Stacks
-
USB Port Type:
-
Type-C
-
Barometer:
-
Built-in
-
OSD Chip:
-
AT7456E chip
-
BetaFlight Camera Control Pad:
-
Yes(CC pad on the front side)
-
TVS Protective diode:
-
Yes
-
ESC Telemetry:
-
UART R5
-
Size:
-
30.5 x 30.5mm
-
Dimension:
-
45.6(L) * 44(W) * 15.8mm(H)
-
Weight:
-
23.5g
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Speedybee
-
Model Number:
-
DV-SPB360
-
Product name:
-
SpeedyBee F405 V3 Stacks
-
USB Port Type:
-
Type-C
-
Barometer:
-
Built-in
-
OSD Chip:
-
AT7456E chip
-
BetaFlight Camera Control Pad:
-
Yes(CC pad on the front side)
-
TVS Protective diode:
-
Yes
-
ESC Telemetry:
-
UART R5
-
Size:
-
30.5 x 30.5mm
-
Dimension:
-
45.6(L) * 44(W) * 15.8mm(H)
-
Weight:
-
23.5g
Products Description
|

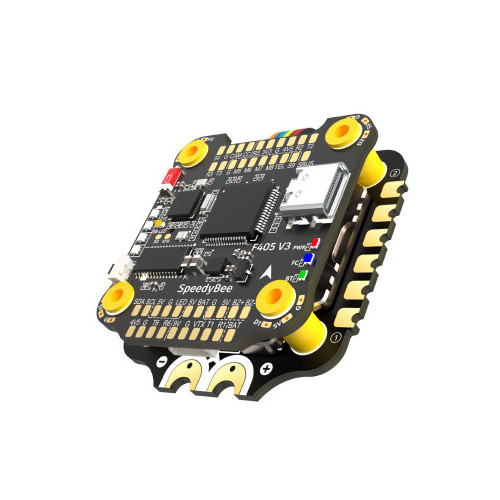

SpeedyBee F405 V3 30x30 Flight Controller
|
|
SpeedyBee BLS 50A 30x30 4-in-1 ESC
|
|
||
|
MCU
|
STM32F405
|
Firmware
|
BLHeli_S J-H-50
|
||
|
IMU(Gyro)
|
BMI270
|
Continuous Current
|
60A * 4
|
||
|
USB Port Type
|
Type-C
|
Burst Current
|
80A(10 sec)
|
||
|
Barometer
|
Built-in
|
TVS Protective diode
|
Yes
|
||
|
OSD Chip
|
AT7456E chip
|
External Capacitor
|
1000uF Low ESR Capacitor(In the package)
|
||
|
Current Sensor Input
|
Supported. For SpeedyBee BLS 60A ESC, please set scale = 400 and Offset = 0.
|
ESC Protocol
|
DSHOT300/600
|
||
|
RSSI Input
|
Supported. Named as RS on the front side.
|
Power Output
|
VBAT
|
||
|
Smart Port / F.Port
|
Not supported
|
ESC Telemetry
|
Not supported
|
||
|
Firmware Target Name
|
SPEEDYBEEF405V3
|
Mounting
|
30.5 x 30.5mm( 4mm hole diameter)
|
||
|
Mounting
|
30.5 x 30.5mm( 4mm hole diameter)
|
Dimension
|
45.6(L) * 44(W) *8mm(H)
|
||
|
Dimension
|
41.6(L) x 39.4(W) x 7.8(H)mm
|
Weight
|
13.8g
|
||
|
Weight
|
9.6g
|
|
|
||
