Manufacturer Hot Sealing Machine Poly Mailer Plastic Courier Packaging Bag Making Machine

Manufacturer Hot Sealing Machine Poly Mailer Plastic Courier Packaging Bag Making Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $9900

≥3 Sets

US $9500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangxi, China

Brand Name:: Dexinda

Model Number:: KDBF-35

Voltage:: 3 PHASE 380V 50HZ

Dimension(L*W*H):: 4800*1250*1700mm

Weight:: 900 KG

Marketing Type:: New Product 2023

Name:: Courier bag making machine

Suitable material:: HDPE/LDPE/LLDPE/biodegradable

PLC:: FATEK

Main motor:: Jiangsheng

Total Power:: 5 KW

Inverter:: Delta From Taiwan

Bag forming speed:: 15-150 pcs/min

Bag Width:: 100-800 mm

Bag Thickness:: 0.03-0.15 mm

After Warranty Service:: Field maintenance and repair service

Quick Details

Machine Type:: SEALING MACHINE

Bag Type:: courier bag / dhl bag

Material:: biodegradable material

Place of Origin:: Jiangxi, China

Brand Name:: Dexinda

Model Number:: KDBF-35

Voltage:: 3 PHASE 380V 50HZ

Dimension(L*W*H):: 4800*1250*1700mm

Weight:: 900 KG

Marketing Type:: New Product 2023

Name:: Courier bag making machine

Suitable material:: HDPE/LDPE/LLDPE/biodegradable

PLC:: FATEK

Main motor:: Jiangsheng

Total Power:: 5 KW

Inverter:: Delta From Taiwan

Bag forming speed:: 15-150 pcs/min

Bag Width:: 100-800 mm

Bag Thickness:: 0.03-0.15 mm

After Warranty Service:: Field maintenance and repair service

Product Overview

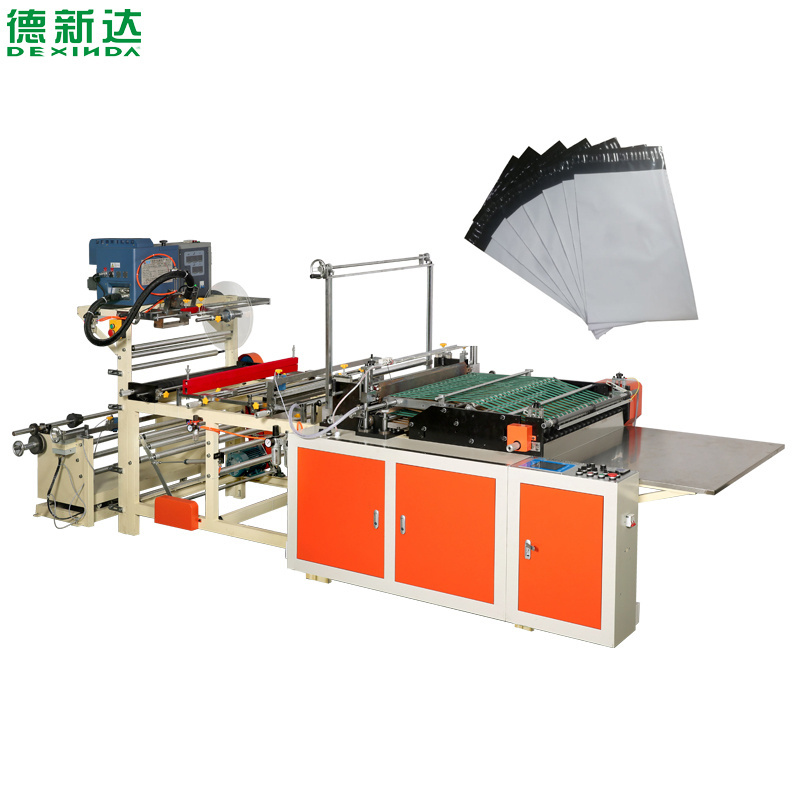

Dexinda biodegradable material express pouch bag making machine with spray glue

The courier bag making machine has been shown 3 times in Chinaplas.We keep breakthrough in technology and performance and had developed into our 4th generation.It is recognized among the domestic and foreign clients in the professional courier bag making industry.Now it is updated to All-in-One machine,with the function of auto-loading,bill pocket sealing,hot melt gluespraying,sealing & cutting,all process will be finished in one machine ro production efficiency rapidly.

In terms of hardware,the machine adopts Taiwan computer servo control system,programmable custom PLC. Using sensitive electric eye from Germany,with automatic alarming when color code disappears,effectively reduce operating loss.With funtion such as up-down rolls changing device to adhere the service concept of customer damands.

FEATURES AT A GLANCE

Bag width:100-800 mm

Bag thickness:0.03-0.15 mm

Main motor power:0.75 KW

Bag forming speed:15-150 pcs/min

Machine size: 4800*1250*1700 mm

Weight:3,000 kg

Products Description

PRODUCT SPECIFICATIONS

Product name	Courier bag making machine
Model number	BF-35
Brand	Dexinda
Power supply	3 PHASE 220V 50HZ
Servo motor	1.5KW (Delta,Taiwan)
Servo driver	1.5KW (Delta ,Taiwan)
Main motor	0.75KW (Jiangsheng)
Main inverter	0.75KW (Delta)
Conveyer belt motor	0.37kw
Conveyer belt inverter	0.37kw
Bag width	100-800 mm
Bag length	100-800 mm
Bag forming machine	15-150 pcs/min
Touch screen operating panel-Weinview-Taiwan	1 set
PLC -YONGHONG-Taiwan	1 set
Back feeding motor (Yatai)	0.37 KW
Back feeding intervet (Yatai)	0.37 KW
Heat-sealing knife	35 inch
Auto punching device	2 positions,but not include punching mold
312 color tracking electric senser-Yatai	1 set
Correcting machine	35 inch
Hot melt glue applicator	1 set
EPC device	1 set
Machine size	480012501700mm
