Quick Details
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Microscope
-
Viewing Head:
-
Siedentopf hingedbinocular viewing head
-
Eyepiece:
-
WF10*/18
-
Illumination:
-
S-LED Illumination,brightness adjustable
-
Nosepiece:
-
Quadruple nosepiece
-
Focusing:
-
Coaxial coarse & fine adjustment
-
Stage:
-
Double layers mechanical stage
-
Condenser:
-
Abbe condenser NA1.25
-
Centering:
-
Centering Telescope
-
Power Supply:
-
AC110/220V±10%, 50/60Hz
Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
BIOBASE
-
Model Number:
-
BMM1000
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Microscope
-
Viewing Head:
-
Siedentopf hingedbinocular viewing head
-
Eyepiece:
-
WF10*/18
-
Illumination:
-
S-LED Illumination,brightness adjustable
-
Nosepiece:
-
Quadruple nosepiece
-
Focusing:
-
Coaxial coarse & fine adjustment
-
Stage:
-
Double layers mechanical stage
-
Condenser:
-
Abbe condenser NA1.25
-
Centering:
-
Centering Telescope
-
Power Supply:
-
AC110/220V±10%, 50/60Hz

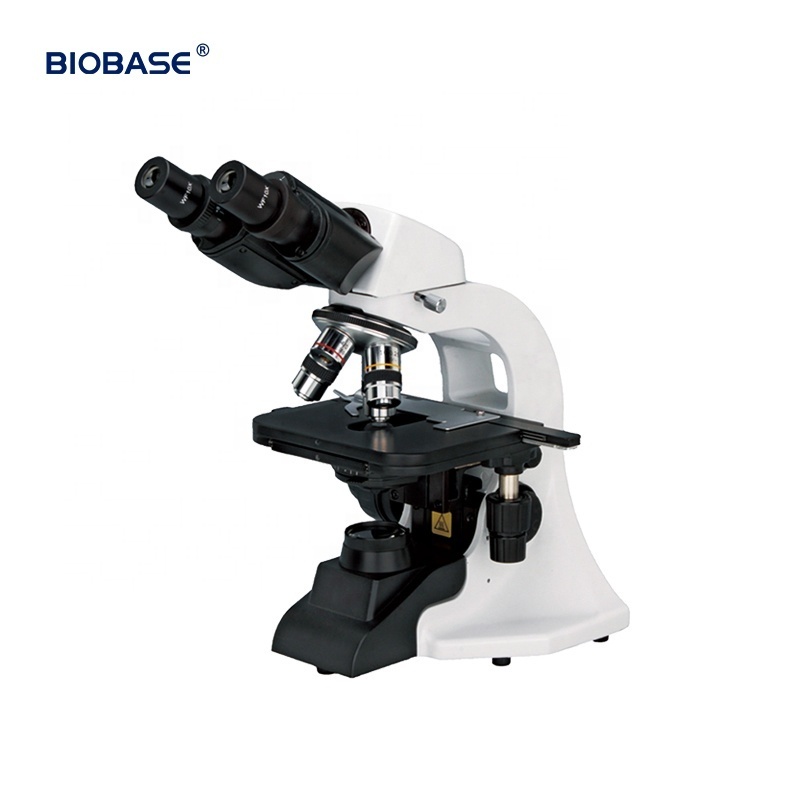

Product Overview
Product Description
|
Model
|
|
BMM-1000
|
BMM-2000
|
|
|
Viewing Head
|
Siedentopf hingedbinocular viewing head, inclined at 30°, 360° rotatable,Interpupillary 47~75mm
|
√
|
√
|
|
|
|
Siedentopf hinged trinocular viewing head, inclined at 30°, 360° rotatable,Interpupillary 47~75mm
|
●
|
●
|
|
|
Eyepiece
|
WF10×/18
|
√
|
|
|
|
|
P16×/11
|
●
|
|
|
|
|
WF10×/20
|
|
√
|
|
|
|
WF15×/16
|
|
●
|
|
|
Objective
|
Achromatic objective 4×,10×,40×,100×
|
√
|
|
|
|
|
Plan achromatic objective 4×,10×,40×,100×
|
●
|
|
|
|
|
Infinite plan achromatic objective20×,60×
|
|
●
|
|
|
|
Infinite plan achromatic objective 4×,10×,40×,100×
|
●
|
√
|
|
|
Nosepiece
|
Quadruple nosepiece
|
√
|
|
|
|
|
Backward quadruple nosepiece
|
|
√
|
|
|
|
Backward quintuple nosepiece
|
|
●
|
|
|
Focusing
|
Coaxial coarse & fine adjustment, rang 22mm , fine division 0.002mm
|
√
|
√
|
|
|
Stage
|
Double layers mechanical stage 132*142mm, cross travel 75*40mm
|
√
|
|
|
|
|
Rectangular 230*150mm stage, cross travel 78*54mm, using low-positioned X/ Y coaxial control knob
|
|
√
|
|
|
Condenser
|
Abbe condenser NA1.25 with aperture diaphragm
|
√
|
√
|
|
|
Illumination
|
S-LED Illumination,brightness adjustable
|
√
|
√
|
|
|
|
12V/ 20W Halogen lamp, brightness adjustable
|
●
|
●
|
|
|
|
Kohler illumination
|
●
|
●
|
|
|
Power Supply
|
AC110/220V±10%, 50/60Hz
|
√
|
√
|
|
|
Accessories
|
Photo attachment, video attachment, dark field condensor only for BMM1000 optional
|
●
|
|
|
|
|
Polarization set, phase contrast kit
|
|
●
|
|
|
Package Size
|
323*264*440(BMM-1000), 380*260*510(BMM-2000)
|
√
|
√
|
|
|
Gross Weight
|
6.5kg(BMM-1000), 10kg(BMM-2000)
|
√
|
√
|
|
