Quick Details
-
Model Number:
-
Smart Line
-
Product name:
-
indoor outdoor stand set active mini line array
-
Frequency Response(full range speaker):
-
100Hz-18kHz (-10dB)
-
Frequency Response(subwooferr):
-
35Hz-200Hz (±3dB) 30Hz-200Hz (-10dB)
-
Power handling(full range speaker):
-
LF:300W; HF:80W
-
Power handling(subwoofer):
-
AES:700W PEAK:2800W
-
Full range speaker driver:
-
2x8" dual coaxial neodymium drivers
-
Subwoofer driver:
-
2x15" drivers
-
Nominal impedance(full range speaker):
-
HF/LF:16Ω/16Ω
-
Nominal impedance(subwoofer):
-
4Ω
-
Application:
-
Musice festival,Hotel,Stadium,Theater,Church
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VA
-
Model Number:
-
Smart Line
-
Product name:
-
indoor outdoor stand set active mini line array
-
Frequency Response(full range speaker):
-
100Hz-18kHz (-10dB)
-
Frequency Response(subwooferr):
-
35Hz-200Hz (±3dB) 30Hz-200Hz (-10dB)
-
Power handling(full range speaker):
-
LF:300W; HF:80W
-
Power handling(subwoofer):
-
AES:700W PEAK:2800W
-
Full range speaker driver:
-
2x8" dual coaxial neodymium drivers
-
Subwoofer driver:
-
2x15" drivers
-
Nominal impedance(full range speaker):
-
HF/LF:16Ω/16Ω
-
Nominal impedance(subwoofer):
-
4Ω
-
Application:
-
Musice festival,Hotel,Stadium,Theater,Church
Product Description

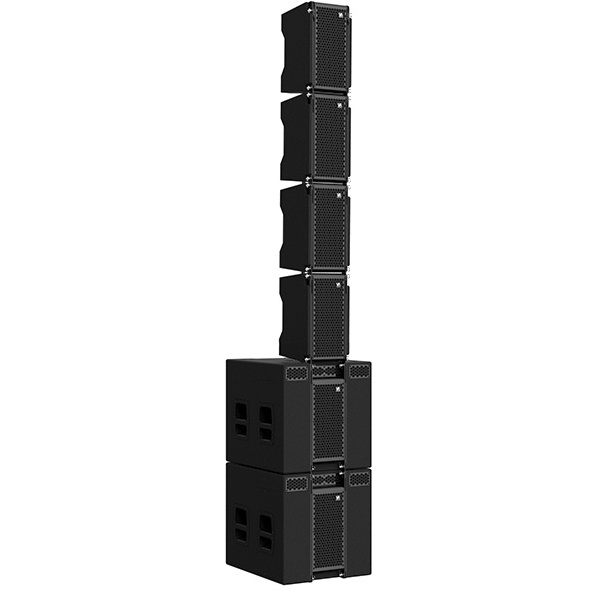

High quality dual 8 inch line array speakers indoor outdoor stand set active mini line array
FULL RANGE SPEAKER--SMART LINE
>
Dual coaxial active line array speaker
> Small size, light weight, single person can operate bass and treble coaxial structure, concentrated sound image
> Full neodymium magnetic speaker driver reduces speaker weight
> High sensitivity driver provides greater SPL and headroom
> Preset multiple processor parameter modes to meet the use of different venues
> With IP44 waterproof rating
> Small size, light weight, single person can operate bass and treble coaxial structure, concentrated sound image
> Full neodymium magnetic speaker driver reduces speaker weight
> High sensitivity driver provides greater SPL and headroom
> Preset multiple processor parameter modes to meet the use of different venues
> With IP44 waterproof rating
ACTIVE SUBWOOFER--SMART SUB
>
Active subwoofer
> Lightweight, small size
> Four-point hanging system speaker
> Preset multiple processor parameter modes to meet the use of different venues
> Lightweight, small size
> Four-point hanging system speaker
> Preset multiple processor parameter modes to meet the use of different venues
Applications:
High-end conference performance
Banquet Hall
Music festival performance
Stadium
Theater
Church
High-end conference performance
Banquet Hall
Music festival performance
Stadium
Theater
Church
Specification
|
|
Smart Line
|
Smart Sub
|
|
|
Connector
|
2 x Speakon NL4
|
|
|
|
Cabinet material
|
15mm birch plywood
|
|
|
|
Finish
|
Black polyurea paint
|
|
|
|
Grill
|
Black epoxy porous steel mesh and sound-transparentacoustic mesh cotton
|
|
|
|
N.W
|
14KG
|
47kg
|
|
|
G.W
|
15.5KG
|
49.5KG
|
|
|
Cabinet size(w*h*d)
|
429*235*300mm
|
550*500*600mm
|
|
|
Package size(w*h*d)
|
525*395*335MM
|
650*600*700MM
|
|
