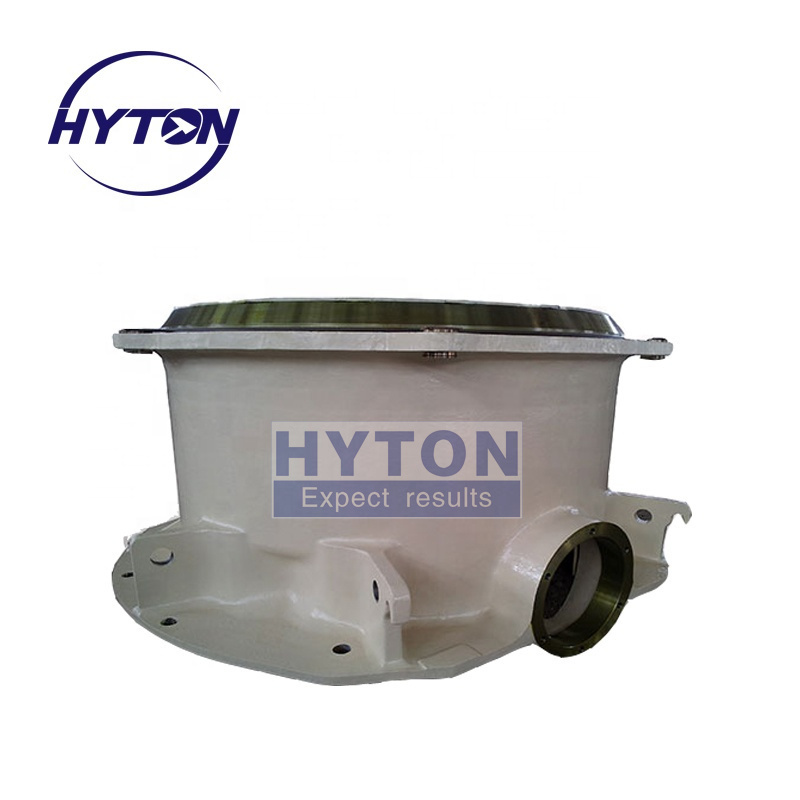

mining machine replacement parts main frame assembly HT-1093040131 suit HP400 HP500 cone crusher spares

mining machine replacement parts main frame assembly HT-1093040131 suit HP400 HP500 cone crusher spares

FOB Reference Price: Get Latest Price

≥1 Pieces

US $15000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: main frame

Quality:: 100% suit original quality

Certificate:: ISO 9001

Part Number:: HT-1093040131

Weight:: 7793kgs

Application:: hp series cone crusher

Model:: hp400 cone

Quick Details

Weight (KG):: 6808

Place of Origin:: Jiangsu, China

Brand Name:: hyton

Product name:: main frame

Quality:: 100% suit original quality

Certificate:: ISO 9001

Part Number:: HT-1093040131

Weight:: 7793kgs

Application:: hp series cone crusher

Model:: hp400 cone

Product Description

mining machine replacement parts main frame assembly HT-1093040131 suit HP400 HP500 cone crusher spares

All of our cone crusher main frame is backed by our Quality Guarantee and are shipped only after meeting our rigorous quality standards. We are committed to meeting your replacement parts need in a professional and efficient manner. We have a larger inventory of wear parts for immediate deliveries. 100% drawing, same wear parts, but 1/3 price.

Product Name	Main frame
Part Number	HT-1033785560
Net Weight	7793kgs
Material	Cast steel
Processing Type	casting
Machine Type	suit hp500 cone crusher
Warranty	one year
Certificate	ISO9001

Products Pictures

Suitable Model

Multi-cylinder Cone Crusher Spare Parts

Mainly suitable models:
HP100,HP200,HP300,HP400,HP500,HP700,HP800,HP4,HP5,HP6

Usual part numbers:
HT- 1033781826 ,HT- 1033785560 ,
HT- 7018307006 ,HT- N18307023 ,
HT- 1093050142 ,HT- 1093040131 ,
HT- 7018307007 ,HT- 7090008016 ,
HT- N90008147 ,HT- N90008102 ,
HT- N90008151 ,HT- N90008103 ,
HT- 1033785794 ,HT- N90008135 ,

HT- N18307025, HT- N98000210,

Main Frame ASSY

Pos.	Part Number	Description	OTY	Net Weight
1	HT-1033785560	main frame	1	7793
2	HT-1033785560	protection plate	4	3
3	HT-1022139802	bushing	6	2.3
4	HT-1070589817	shim	1	4.2
5	HT-1070589815	shim	1	2
6	HT-1070589813	shim	1	1
7	HT-1070589811	shim	1	0.5
8	HT-1057605167	thrust bearing	1	42
9	HT-N01632014	washer	6	0.01
10	HT-N01540213	HXGNL socket head	6	0.058
11	HT-1063518950	gland ring	1	4
12	HT-7008010103	activator	1	0.1
13	HT-7008010102	glue	1	0.38
14	HT-1038069595	arm guard	3	100
15	HT-7008010050	glue	1	0.1
16	HT-7008010051	activator	1	0.2
17	HT-N01602100	eccentric retaining ring	6	0.18
18	HT-1063915542	frame ring	1	12
19	HT-1048516296	liner	1	27.6
20	HT-1002098744	plug	1	0.2
21	HT-1068867278	main shaft	1	1113
22	HT-N21900353	main frame liner	1	555

Related Products

Click what you want

Packing and Shipping

After goods packaged well , we need only 1 day ship good to shanghai port ,which means that most of the spare parts you bought from Hyton ,it will get your port within 30 days all around the world if ship by sea.

FAQ

1,Q: Are you a trading company or factory ?

A: We are a factory since 2004, has been specializing in this industry for more than 16 years.

2,Q: How long is your delivery time?

A:Our lead time is generally 20 days and exact time to be finalized on receiving of finalized order.

3,Q:What kind of products do you make?

A: We specialize in mining machinery parts, such as jaw plates, concaves, mantles,main frame, main shaft, counterweight liners and more.

4,Q:Do you offer the supporting service for technology and engineering ?

A: Yes. our engineering team can measure products at mining site, they also can make more reasonable design for the crusher parts.

5,Q:how do you deal with quality problem?

A: we adhere to "Be honest people create perfect product" development principle since our foundation. Every single product is strictly checked and well packed before delivery. If something goes wrong when you use our products, please send us photos and the machine. This will help us to identify where the problem is. If it is a quality problem, we will compensate you and do something correspondingly to avoid the same problem next time. If the problem is caused by misuse,we will provide our technical advice for your reference.
