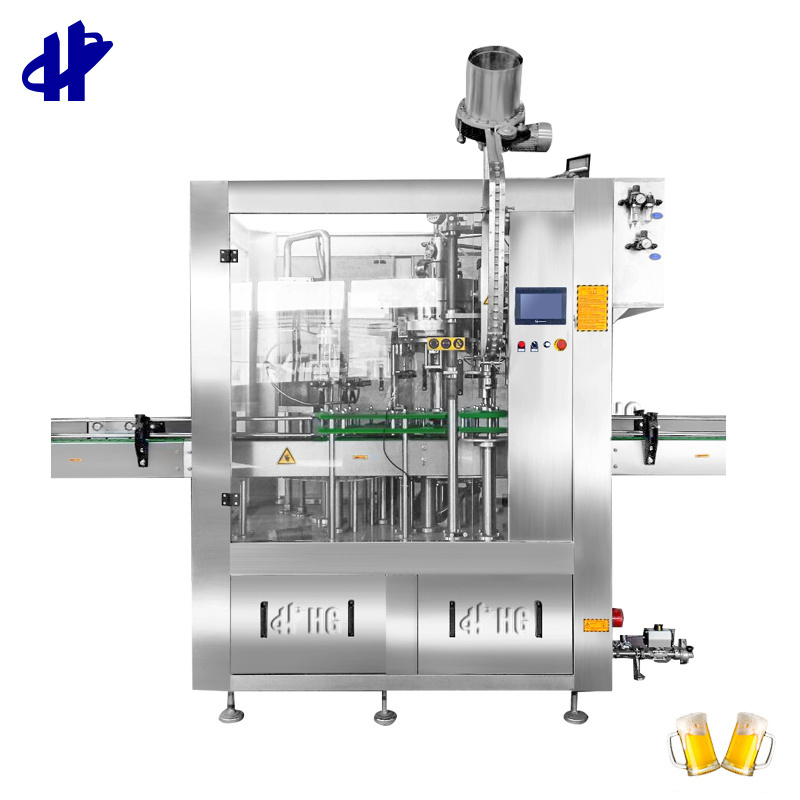

China automatic good price small carbonated scale soda beer drinking mineral water bottling machine

China automatic good price small carbonated scale soda beer drinking mineral water bottling machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $5000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Filling Accuracy:: ±6mm

Voltage:: Customized

Place of Origin:: Shandong, China

Brand Name:: HG

Dimension(L*W*H):: 1520*1125*2350mm

Weight:: 1300 KG

After-sales Service Provided:: Engineers available to service machinery overseas

Name:: Beer filling line

Bottle type:: Glass bottle

Capacity:: 500-800BPH

Quick Details

Machinery Capacity:: 500BPH, 800BPH

Packaging Material:: Metal

Filling Material:: Beer, Milk, Water, Juice

Filling Accuracy:: ±6mm

Voltage:: Customized

Place of Origin:: Shandong, China

Brand Name:: HG

Dimension(L*W*H):: 1520*1125*2350mm

Weight:: 1300 KG

After-sales Service Provided:: Engineers available to service machinery overseas

Name:: Beer filling line

Bottle type:: Glass bottle

Capacity:: 500-800BPH

China automatic good price small carbonated scale soda beer drinking mineral water bottling machine

Item	Parameters	Item	Parameters
Washing heads	6	Vacuum pump	0. 20m3/h
Filling heads	6	Power	main motor: 1.5KW hopper motor: 0 .18KW vacuum pump motor: 1.1 KW chain motor: 0.37KW
Capping heads	1	Dimensions	152011252350mm
Capacity	500-800BPH	N.W.	1500Kg
Bottle type	height:150~ 300mm bottle neck:50~85mm bottle diameter: 50-75mm	Working voltage AC	It can be customized by the customers' electrical conditions.
Air consumption	0.2m3/min(0.4~0.6Mpa)	Control voltage DC	It can be customized by the customers' electrical conditions.
CO2consumption	1.6kg/l000L	Frequency converter	SIEMEMS
Water consumption	0. 8m3/h	PLC	SIEMEMS
Touch screen	Weinview	Pneumatic element	SMC

6-6-1 Glass Bottle Fillng Machine

6-6-1 type beer bottle washing filling capping monoblock is designed combined with the actual situation in our country after the introduction and absorption that comes from Germany technologies. It adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of taking small space, high precision in liquid level. Adopt Siemens automatic controlling system, realizing trinity of the machines, and control the rinsing , filling and capping process.

Automatic beer bottle rinsing, filling , capping triblock machine main parts are automatic electronic control filling valve,
vacuum, preparation of pressure (Co2), the photoelectric liquid level detection, automatic filling process, CIP cleaning system, bottle deformation pieces, easy-won parts.

40-40-10 Glass Bottle Beer Filling Machine

The machine is adopts counter pressure filling technology, this machine is specially designed for beer filling. The machine has the advantages of high speed, reliable output, compact design and stable operation. The machine suitable for medium or large capacity breweries.

16-16-6 Glass Bottle Beer Filling Machine

The 16 heads filling machine designed by HG Company adopts the counter pressure filling technology which can perfectly realize the requirments of twice vacuum, Co2 injection. The machinealso adopts 3in 1 compact design, easy to operate and maintain.

8-8-3 Glass Bottle Filling Machine

The machine is the latest design of the beer filling machine 3 in 1 type. It adopts external filling valves, all filling valves were hung on outside of the beer tank which has no contact with the beer inside. The can guarantee the beer won't have any bacteria infection risk. More stable and reliable than original design.

Advantage :

1). Capacity:500-800BPH.
2). External filling valve: more stable and sanitary.
3). Two times of vacuuming: keep your beer pure, prolong its shelf life.
4). All-mechanical transmission: it will be more stable.
5). Mechanical three capping heads: worked more harmoniously.
6). With foaming device: keep the beer quality.

Item	Production capacity	Filling method	Material	Dimensions
HG-GZ-4-4-1	240-360BPH	Isobaric filling	SUS304	15505501750mm
HG-GZ-6-6-1	500-800BPH	Isobaric filling	SUS304	152011252350mm
HG-GZ-8-8-3	800-1000BPH	Isobaric filling	SUS304	185016002500mm
HG-GZ-16-16-6	2000BPH	Isobaric filling	SUS304	230019002500mm
HG-GZ-40-40-10	8000-10000BPH	Isobaric filling	SUS304	420030002700mm

1.Q:Does your company have foreign installation experience? A: Yes, our company has installation experience in USA, Canada, Europe, Australia, Malaysia, Myanmar, South Africa etc.

2.Q: Do you have a professional engineer or after-sales team in our country? A: Yes, our equipment is sold to 150 countries and areas and we have our local after-sales service personnel in Europe, America and Asia.

3.Q:How can you guarantee the delivery date of the equipment after we place the order? A: The delivery time can be ensured through Alibaba Credit Insurance orders.

4.Q:What payment methods are supported? A：T/T, L/C, Credit Card, VISA, Apple device, Western Union.

5. Q: How long the warranty will be? A: 3 years warranty for the whole tank and the main equipment, 1 year for the accessories and auxiliaries. 1 Year warranty for filling machine.

6.Q: How about the installation and training? A: We can supply the installation and training. There are two options. The first option: We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side. The second option: On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, the buyer afford the transportation cost.

7.Q: Can I be your company's sales agent? A: Yes, it’s our pleasure. We very much welcome you to join us. Please contact us to discuss specific details.

8). The price does not include electrical appliances, etc.
