Quick Details
-
Color:
-
Customized
-
Conductor:
-
8
-
Jacket:
-
PVC/LSZH/WDZ-PVC/LDPE
-
Certification:
-
CE /RoHS/CCC/TLC/ISO9001/TUV
-
Conductor Material:
-
99.99% bare copper/CCA/CCS
-
Length:
-
100m/200m/300m/305m 1000ft
-
Application:
-
cctv/cumputer/cabling system/Multimedia/Industrial
-
Insulation:
-
0.915 HDPE/LDPE
-
Package:
-
pull box packing or as requested
Quick Details
-
Brand Name:
-
GHT
-
Model Number:
-
UTP
-
Place of Origin:
-
Guangdong, China
-
Color:
-
Customized
-
Conductor:
-
8
-
Jacket:
-
PVC/LSZH/WDZ-PVC/LDPE
-
Certification:
-
CE /RoHS/CCC/TLC/ISO9001/TUV
-
Conductor Material:
-
99.99% bare copper/CCA/CCS
-
Length:
-
100m/200m/300m/305m 1000ft
-
Application:
-
cctv/cumputer/cabling system/Multimedia/Industrial
-
Insulation:
-
0.915 HDPE/LDPE
-
Package:
-
pull box packing or as requested

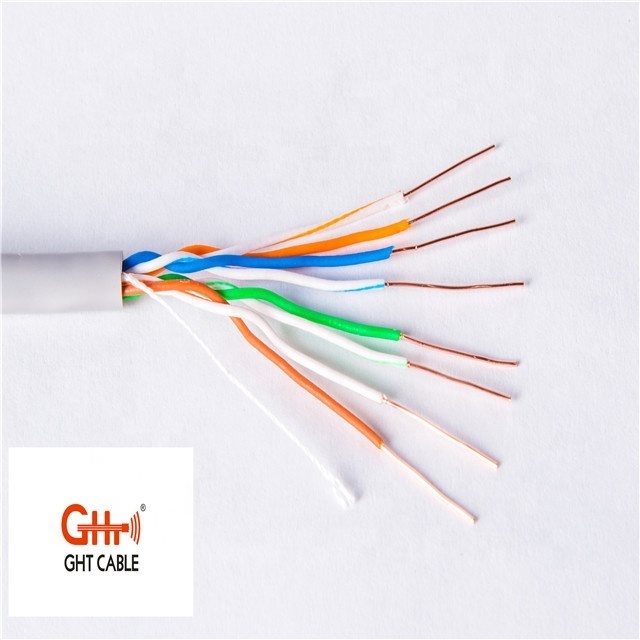

100M / 200M / 305M/1000FT UTP Cat5e 24AWG Lan Cable 4 pairs price CU/CCA
Specifications:
|
Model |
Cat5e UTP Cable |
|
Conductor Size |
23AWG Or Stranded 7x0.12mm/7x0.16mm/7x0.20mm |
|
Conductor Material |
Bare copper/CCA/CCS |
|
Nu m ber Of Conductor |
4P |
|
Shi elded |
UTP/FTP/STP/SFTP /SSTP |
|
Indoor / Outdoor |
Single jacket(PVC) / Double jacket(PVC+PE) |
|
Insulation Dia |
0.90±0.02mm HDPE/LDPE |
|
Number of pairs: 4 pairs |
Pair1: Orange/White Orange Pair2: Blue/ White Blue Pair3: Green/ White Green Pair4: Brown/White Brown |
|
Jacket Material |
PVC, ROHS PVC, LSZH PVC |
|
DC Resistance(Max.) |
9.5Ω/100m |
|
DC Resistance Imbalance |
2.50% |
|
Working Capacitance(Max.) |
5.4nF/100m |
|
Insulation Resistance |
10000MΩ.km |
|
Transmission Velocity |
65% |
|
Operating Tempera ture |
-20 °C - +75 °C |
|
PVC Jacket Color |
As client’s request. |
Application:
Ethernet ; 10 Base-TX ; ATM ; Trunk Cabling ;
Widely apply to network wiring structure and transmission media,such as audio,video,digital communication,message and so on.
| Length*Width*Height(cm) | 1*20GP(ROLLS) | 1*40HQ(ROLLS) | |
| CAT5e indoor | (2pcs)43*35*35cm | 1040 | 2560 |
| CAT5e outdoor | (2pcs)49*37*37.5cm | 800 | 1950 |
| CAT6 indoor | (2pcs)47*39.5*40cm | 727 | 1800 |
| CAT6 outdoor | (2pcs)47*41*40cm | 690 | 1728 |
