Quick Details
-
Weight:
-
10KG, 10kg
-
Size:
-
0.05/Set
-
Power:
-
0
-
Weight (KG):
-
10 kg
-
Product name:
-
UPVC Filter
-
Type:
-
Waste Water Treatment System
-
Capacity:
-
2500L/H
-
Filter Media:
-
PP cartridge
-
Cartridge size:
-
10 inch
-
Model Number:
-
3DC1
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
stark
-
Material:
-
Carton, UPVC/PVC
-
Weight:
-
10KG, 10kg
-
Size:
-
0.05/Set
-
Power:
-
0
-
Weight (KG):
-
10 kg
-
Product name:
-
UPVC Filter
-
Type:
-
Waste Water Treatment System
-
Capacity:
-
2500L/H
-
Filter Media:
-
PP cartridge
-
Cartridge size:
-
10 inch
-
Model Number:
-
3DC1
-
After Warranty Service:
-
Video technical support
Product Description

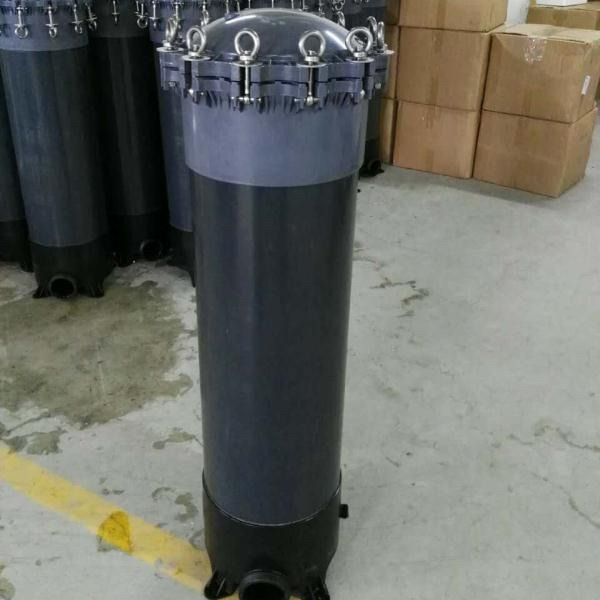

UPVC Filter housing Multi Bag Water PP Cartridge Filter Housing With Stainless steel Ring 20 inches 5 Cores filter
UPVC cartridge filter housings(3nos/5nos/8nos/9nos)
FRP cartridge filter housings(18nos)
UPVC cartridge filter housings
Pall filter housings
High Flow Purification Systems
Tubular Backwashing filters
Details Images
Specification
Different bolts and Pressure Gauge are available
Cartridge filter(3nos and 5nos)
|
(3nos/5nos)
|
Type
|
Bolts
|
Sealing Material
|
Pressure Gauge
|
|
|
B series
|
BP=/Plastics BS1=SS304\SS304 BS2=SS316\SS316
|
E=EPDM
S=Silicon V=Viton |
P1=SS Pressure Gauge
P2=PP Pressure Gauge |
|
|
|
|
|
|
|
|
C series
|
C1=SS304/SS304
C2=SS316 /SS316 |
|
|
|
|
|
|
|
|
Cartridge filter(8nos and 9nos)
|
(8nos/9nos)
|
Bolts
|
Sealing Material
|
Pressure Gauge
|
|
|
|
|
|
|
|
BP=Plastics
|
E=EPDM S=Silicon V=Viton
|
P1=SS Pressure Gauge
P2=PP Pressure Gauge |
|
|
BS=SS316
|
|
|
|
|
BI=Iron
|
|
|
Cartridge filter is a filter system wish high precision. It consists of the housing and cartridge elements, mainly used in pretreatment. It can be widely used in electronic industry, sewage treatment, beverage, foods, pure
water treatment, also it can acts as home water purification equipment.
|
Type
|
|
Material
|
Size
|
Cartridges
pcs
|
Cartridges
size
|
In/Out(mm)
|
Max pressure
|
|
|
|
|
|
|
|
|
|
|
|
|
MK-5DC1
|
MK-3DC1
|
UPVC
|
dia25-H465
|
5/3
|
10''
|
DN40/
ANSI1.5''
(W=365)
DN50
/ANSI2''
(W=540)
|
A=0.4MPA
|
|
|
MK-5DC2
|
MK-3DC2
|
|
dia25-H715
|
|
20''
|
|
|
|
|
MK-5DC3
|
MK-3DC3
|
|
dia25-H965
|
|
30''
|
|
B/C=0.6MPA
|
|
|
MK-5DC4
|
MK-3DC4
|
|
dia25-H1215
|
|
40''
|
|
|
|
Note:
It can install all material; all precision's cartridge 5 PCS or 3 PCS, which LD. is 28-30mm, O.D. is 60-70mm.
The highest working temperature is 45 C, The size of the two holes in the lid of the filter is Gl/4". If the thread of the pressure gauge is metric standard, should add an adaptor.
Cartridge filter(8 or 9 rounds)
It can install all material; all precision's cartridge 9 PCS or 8 PCS, which LD. is 28-30mm, O.D. is 60-70mm.
The highest working temperature is 45 °C, The size of the two holes in the lid of the filter is Gl/4". If the thread of the pressure gauge is metric standard, should add an adaptor.
|
Type
|
|
Material
|
Size
|
Cartridges
pcs
|
Cartridges
size
|
In/Out
(mm)
|
Drainer
(mm)
|
Max
pressure
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MK-9DC2
|
MK-8DC2
|
UPVC
|
0315-H745
|
9/8
|
20”
|
DN80
/
ANSI3''
|
DIN1/2''
or
ANSI1/2''
|
0.6MPA
(86PSI)
|
|
|
MK-9DC3
|
MK-8DC3
|
|
0315-H995
|
|
30''
|
|
|
|
|
|
MK-9DC4
|
MK-8DC4
|
|
0315-H1245
|
|
40"
|
|
|
|
|
Product Superiority
1.All the parts of this series filters are made of UPVC material.
2.The inlet and outlet are in the same line, which connected with the pipe is adopt a 3" union.
3.The distribution system of HPCF filters is distributed from bottom to top.Water is well-proportioned with small strike to cartridges and air is easy to be discharged.
4.The bottom system of HPCF filter is designed together as a whole with the top localizer & closure system.
Cartridges are easy to be installed, push down and closed, preventing leaking inside.
5.The lid and the body are connected using eyebolts flange method, Ensure a good seal performance, and ensure the filter can stand higher pressure.
6.HPCF filter is corrosion resistant, It can be used in SS-none-replace field.
