Quick Details
-
Ice storage capacity:
-
customized
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CBFI
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
1000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Cooling way:
-
Water Cooling/Air Cooling
-
Refrigerant:
-
R404a/R22
-
Daily Capacity:
-
1~50 tons
-
Ice Making Cycle:
-
16~22 min
-
Ice Diameter:
-
22mm,28mm,35mm
-
Ice Length:
-
30~55mm
-
Expansion Valve:
-
Danfoss from Denmark
-
Solenoid Valve:
-
Castel from Italy
-
PLC:
-
Siemens from Germany
Quick Details
-
Ice Shape:
-
Flake Ice
-
Voltage:
-
380V-50Hz-3P and other
-
Power:
-
Customized
-
Ice storage capacity:
-
customized
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CBFI
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
1000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Cooling way:
-
Water Cooling/Air Cooling
-
Refrigerant:
-
R404a/R22
-
Daily Capacity:
-
1~50 tons
-
Ice Making Cycle:
-
16~22 min
-
Ice Diameter:
-
22mm,28mm,35mm
-
Ice Length:
-
30~55mm
-
Expansion Valve:
-
Danfoss from Denmark
-
Solenoid Valve:
-
Castel from Italy
-
PLC:
-
Siemens from Germany
Product Description
The ice rake system is generally used in conjunction with ice making equipment and installed in the ice storage cold storage. It can effectively use space to store ice. When a large amount of ice is needed in a short time, the ice storage cold storage can automatically deliver ice to meet the demand for ice.
Main Features
1. The ice rake machine adopts modular design, which is easy to assemble and maintain; the parts are processed by CNC machine tools with high precision and avoid welding defects.
Main Features
1. The ice rake machine adopts modular design, which is easy to assemble and maintain; the parts are processed by CNC machine tools with high precision and avoid welding defects.
2. Using high-precision bearings imported from Japan, the mechanism runs smoothly and has long service life.
3. One key to start the ice storage mode. After the ice cubes fall into the ice storage, the ice rake automatically runs according to the signal instructions provided by the sensor, and automatically stops when the ice storage reaches the maximum.
4. One-button start of the ice release mode, the ice blocking door opens automatically, the ice rake runs automatically according to the signal instruction provided by the sensor, and automatically stops after the ice output is completed, and the ice blocking door returns to its position.
5. Smart electric control screen, simple and easy to use.
6.Monitoring equipment is installed in the cold storage, which can check the working conditions of the equipment in real time, which is convenient for maintenance and management and safe production.
Why Choose Us?
1.CBFI have strong R&D engineer team and supply high quality and steady products.
Why Choose Us?
1.CBFI have strong R&D engineer team and supply high quality and steady products.
2.CBFI have strict products quality control system.
3.CBFI unique flake ice evaporator processing technology.
4.CBFI have unique technology on the ice scrape blade.
Flake Ice Applications
The ice flake machine is a leader in fast and large-scale refrigeration projects, and is widely used in supermarket food
preservation, fishery protection, food processing, concrete cooling, etc.
The ice flake machine is a leader in fast and large-scale refrigeration projects, and is widely used in supermarket food
preservation, fishery protection, food processing, concrete cooling, etc.
Successful Project
Product Parameters
|

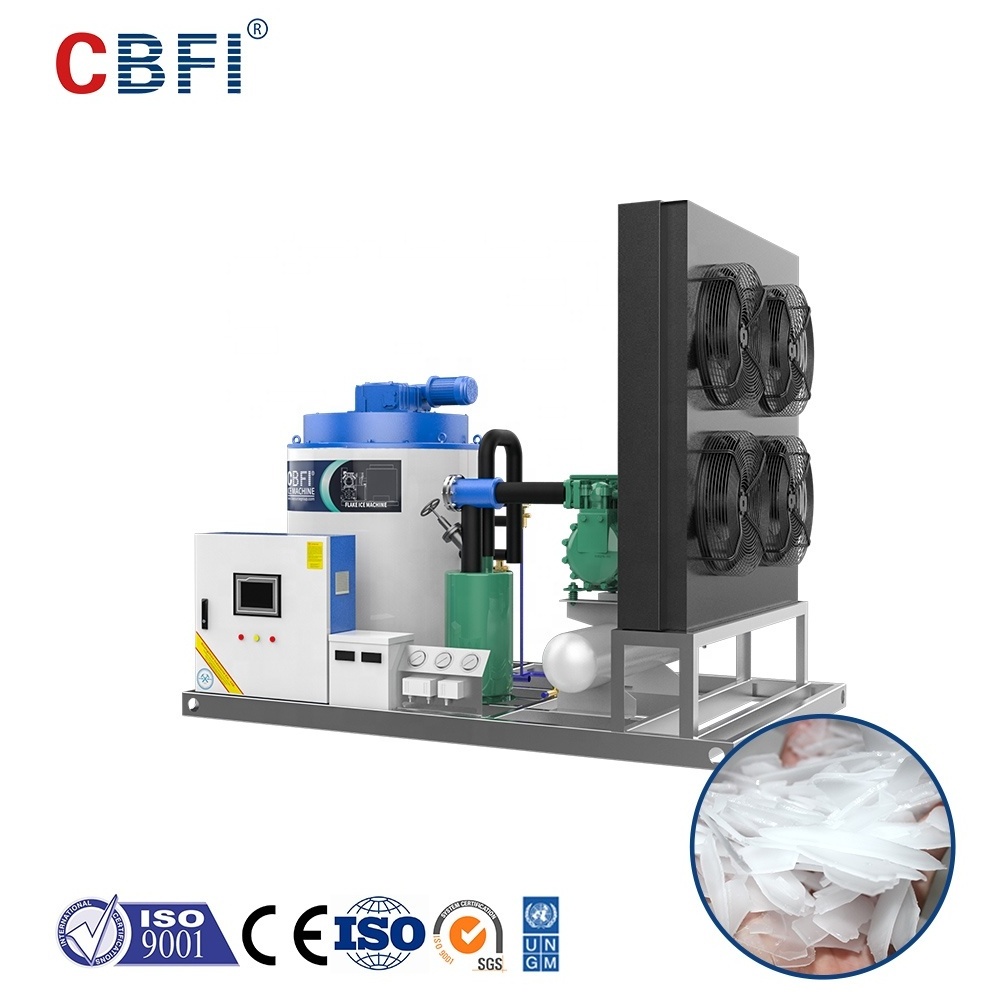

Flake Ice Machine Parameters
|
|
|
|
|
|
|
|
|||||||
|
Model
|
Daily Output (T/24h)
|
Cooling method
|
Compressor Power
|
Fan Power for Cooling Tower
|
Cooling Pump Power
|
Unit Size
(L*W*H mm)
|
Unit N.W. (KG)
|
|||||||
|
BF 500
|
0.5
|
Air
|
4.1 kw
|
--
|
--
|
1280*800*800
|
160
|
|||||||
|
BF 1000
|
1
|
Air
|
7.44 kw
|
--
|
--
|
1320*900*900
|
210
|
|||||||
|
BF 2000
|
2
|
Air
|
10 kw
|
--
|
--
|
1750*1100*1050
|
360
|
|||||||
|
BF 3000
|
3
|
Water
|
8.45 kw
|
0.37 kw
|
1.5 kw
|
1500**1250*1260
|
1000
|
|||||||
|
BF 5000
|
5
|
Water
|
13.49 kw
|
0.75 kw
|
2.2 kw
|
1900*1500*1470
|
1100
|
|||||||
|
BF 6000
|
6
|
Water
|
19.94 kw
|
0.75 kw
|
2.2 kw
|
1900*1500*1470
|
1100
|
|||||||
|
BF 8000
|
8
|
Water
|
24.2 kw
|
1.5 kw
|
2.2 kw
|
2400*1900*1860
|
1300
|
|||||||
|
BF 10000
|
10
|
Water
|
33.8 kw
|
1.5 kw
|
4 kw
|
2500*2000*1860
|
1500
|
|||||||
|
BF 15000
|
15
|
Water
|
44.5 kw
|
1.5 kw
|
4 kw
|
3350*2150*1960
|
3200
|
|||||||
|
BF 20000
|
20
|
Water
|
64 kw
|
1.5 kw
|
5.5 kw
|
3400*2220*2230
|
4200
|
|||||||
|
BF 25000
|
25
|
Water
|
76.5 kw
|
2.2 kw
|
5.5 kw
|
3700*2250*2510
|
4600
|
|||||||
|
BF 30000
|
30
|
Water
|
93.7 kw
|
2.2 kw
|
7.5 kw
|
4700*2250*2520
|
5000
|
|||||||
|
BF 40000
|
40
|
Water
|
118 kw
|
2.2 kw
|
7.5 kw
|
5000*2300*2700
|
7500
|
|||||||
|
1. Compressor brand: Bizter / Hanbell; Refrigerant: R22/R404R.* Power supply: voltage 380 V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately)
2. Operating conditions: T (water supply):20℃, T (ambient): 32℃, T (condensing): 38℃, T (evaporating): -20℃。 3. Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature. 4. The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there is any technical change. |
|
|
|
|
|
|
|
|||||||
Packing process
Ice maker machine
1. Standard wooden case.
2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine come into use, customer only need prepare power for the machine. 4. All required components for install the machine will be provide.
