Quick Details
-
Dimension(L*W*H):
-
965X762X914 MM
-
Weight:
-
490 KG, 490lbs/220kg
-
Flywheel diameter:
-
24"/610 mm
-
Flywheel thickness:
-
3/4"/19 mm
-
Tractor:
-
20-50 HP
-
3-point:
-
Cat 1
-
PTO input:
-
540 rpm
-
Dimensions:
-
29"x37"x38" / 737x940x965 mm
-
PTO shaft with clutch:
-
Included
-
20"/40" container:
-
36 / 72 pcs
Quick Details
-
Use:
-
Remove the stump
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rima
-
Dimension(L*W*H):
-
965X762X914 MM
-
Weight:
-
490 KG, 490lbs/220kg
-
Flywheel diameter:
-
24"/610 mm
-
Flywheel thickness:
-
3/4"/19 mm
-
Tractor:
-
20-50 HP
-
3-point:
-
Cat 1
-
PTO input:
-
540 rpm
-
Dimensions:
-
29"x37"x38" / 737x940x965 mm
-
PTO shaft with clutch:
-
Included
-
20"/40" container:
-
36 / 72 pcs
Product Description
Product Application

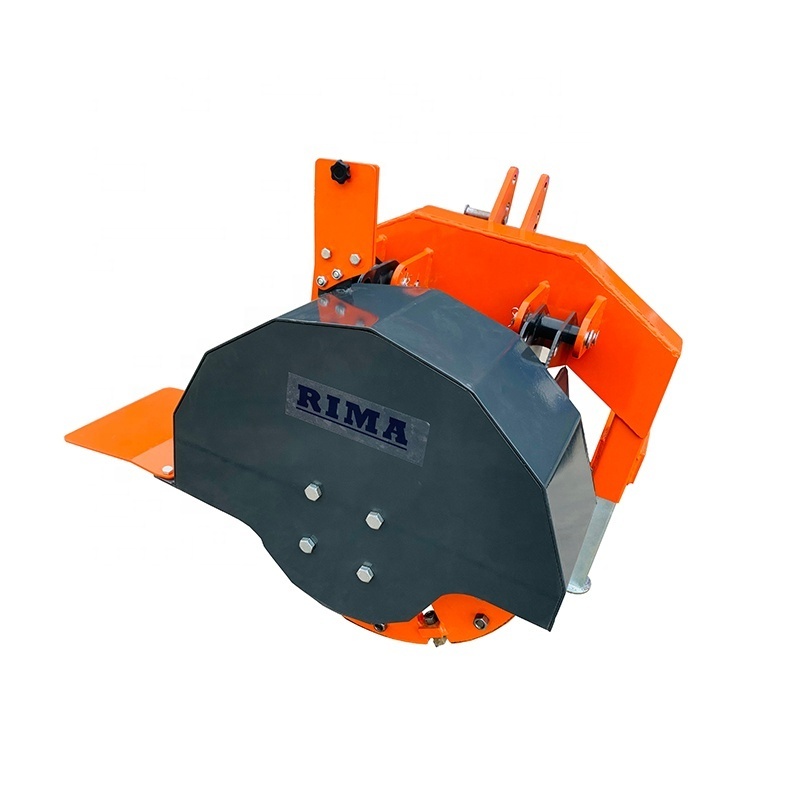

The RG24 PTO powered stump grinder connects directly to your tractors 3 point hitch system and is equipped with a large 24″ (61cm) diameter solid steel grinding flywheel and 34 tungsten carbide cutting teeth to make the removal of tree stumps a breeze! These extremely rugged stump grinders are engineered to deliver optimal performance when paired with tractors containing 20-50HP at the PTO and will easily grind up to 6″ (15cm) below the ground to remove roots and prepare the ground for grading or grass.
Product Description
The RG24 PTO powered stump grinder connects directly to your tractors 3 point hitch system and is driven by the PTO shaft. The large 24″ (61cm) diameter 3/4″ (2cm) thick solid steel grinding flywheel is equipped with 34 tungsten carbide cutting teeth. Designed for tractors with PTO power ranging from 20-50HP. Removing stumps on your property is now possible with the RG24 PTO drive stump grinder. It will grind up to 6″ (15cm) below the ground to remove roots and prepare the ground for grading or grass. Equipped with a chainsaw holder for easy transportation while moving around your property. The RG24 stump grinder is also quick attach compatible making hook up to your tractor quick and easy for customers equipped with a quick attach receiver.
Tractor Requirements
The RG24 stump grinder is designed to work on tractors with a PTO shaft. The stump grinder works best on tractors featuring PTO shafts that are independent of the tractors transmission drive system. This allows the operator to control the speed of the tractor independently and separately to the PTO speed. Since the tractor pulls the grinder through the stump, the rate at which the tractor moves is important and should be independent of the PTO shaft. Operating the RG24 stump grinder at 540 RPM is required.
PTO Shaft
Included with the RG24 Stump Grinder is a slip clutch style PTO shaft.
Included with the RG24 Stump Grinder is a slip clutch style PTO shaft.
Main Specification
|
PTO Stump grinder RG24
|
|
|
|
|||
|
Model
|
RG24
|
Dimensions
|
29”x37”x38” / 737x940x965 mm
|
|||
|
Flywheel diameter
|
24”/610 mm
|
PTO shaft with clutch
|
Included
|
|||
|
Flywheel thickness
|
3/4”/19 mm
|
Weight
|
490 lbs / 220 kg
|
|||
|
Tractor
|
20-50 HP
|
Packing size
|
965x762x914 mm
|
|||
|
3-point
|
Cat 1
|
20”/40” container
|
36 / 72 pcs
|
|||
|
PTO input
|
540 rpm
|
|
|
|||
