Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
Zc-PD123
-
Max. Current:
-
30A
-
Certification:
-
CE
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
220V
-
Place of Origin:
-
ZHE
-
Brand Name:
-
OEM
-
Model Number:
-
Zc-PD123
-
Max. Current:
-
30A
-
Certification:
-
CE
Features:

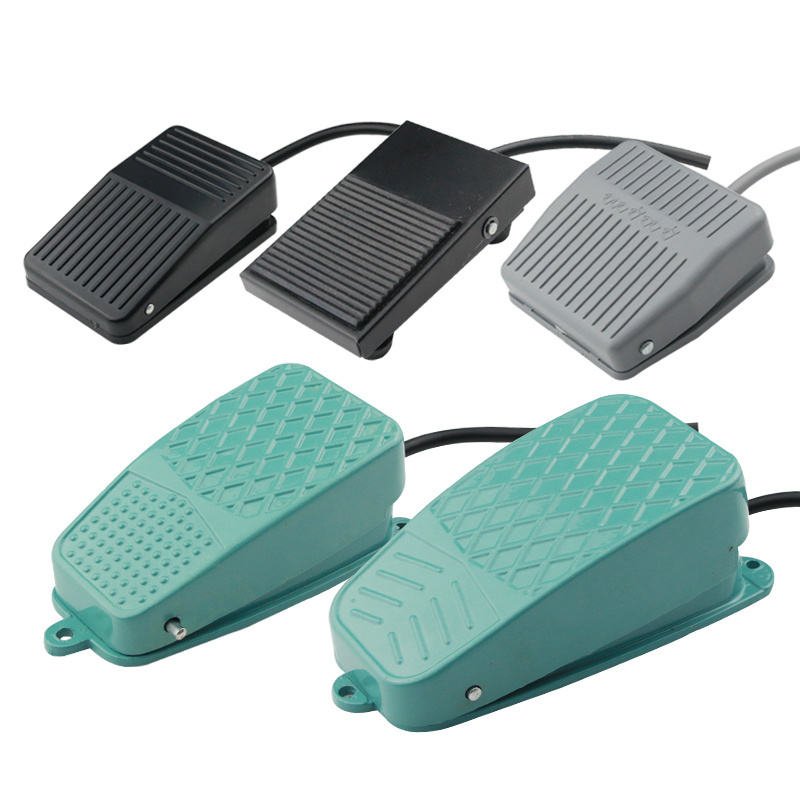

High strength, reliable, and safe universal pedal switch
Metal series shell, such as engineering plastic, steel panel, aluminium alloy etc.
Plastic series shell , can OEM/ODM
Widely used for industrial automation equipment, transport, pressing, medical treatment, test and etc.
Product characteristics
|
Types |
Model |
Rating |
Internal switch |
Contact |
Action force |
Material |
|
Standard type Reset type |
FS-101 |
10A 250VAC |
V type micro switch |
1A1B |
1.2kg |
Plastic |
|
FS-102 |
15A 250VAC |
TM-1704 |
1A1B |
1.1kg |
||
|
FS-3 |
15A 250VAC |
V type micro switch |
2A2B |
1.2 kg |
Aluminum cast |
|
|
FS-3S |
15A 250VAC |
TM1704 |
2A2B |
1.1kg |
||
|
Standard type Alternate action |
FS-105 |
6A 250VAC |
Imported alternative switch |
PUSH ON PUSH OFF |
2kg |
Plastic |
|
FS-106 |
6A 250VAC |
Imported micro switch |
PUSH 1A PUSH 1B |
1.5 kg |
||
|
Small type Fixed type |
FS-201 |
10A 250VAC |
V type micro switch |
1A1B |
0.7 kg |
Plastic |
|
FS-01 |
10A 250VAC |
1A1B |
0.7 kg |
|||
|
FS-1 |
10A 250VAC |
1A1B |
0.9 kg |
Iron |
||
|
Protective cover type |
FS-302 |
15A 250VAC |
TM1704 |
1A1B |
3.2 kg |
Aluminum cast |
|
FS-305 |
6A 250VAC |
Imported alternative switch |
PUSH ON PUSH OFF |
3.1 kg |
||
|
FS-306 |
6A 250VAC |
Imported micro switch |
PUSH 1A PUSH 1B |
3.5 kg |
||
|
FS-502 |
15A 250VAC |
TM-1704 |
1A1B |
3.2 kg |
||
|
FS-602 |
15A 250VAC |
Button spring switch |
2*1A1B |
2.8 kg |
||
|
FS-702 |
15A 250VAC |
TM1704 |
2*1A1B |
3.2 kg |
||
|
Large type |
FS-402 |
15A 250VAC |
TM1704 |
1A1B |
3.2 kg |
|
|
FS-802 |
15A 250VAC |
TM1704 |
2*1A1B |
3.2 kg |
Specifications
1.FS-2 FS-3 FS-4 FS-5 Pedal Switch
2.with high quality micro switch, made in Japan micro switch is optional
3.CE
Feature
1.Foot Switch,Foot Switch
2.Rated voltage:125V/250V/380V
3.Rated current;10A/5A/3A
4.Working temperature:-25 degree-+45 degree
5.Mechanical endurance:≥ 500,000 times
6.Electrical endurance:≥ 100,000 times
The pedal/foot switch of out company is charaterized in safety,solidness and easy operation, and multi-function. After delicate designs, Its guard cover base and pedal are made of high strength Aluminium alloys, and enginnering plastics enhanced flame retard. It features outstandly resistance to impact,vibration,wearing,chemical corrosion and flame. Since the tradition rotating axle drive has been improved into the plunger drive.
Its life has been prolonged and the high reliability .It is equipped with micro switch inside, with the contact form of 1a+1b. the micro switch can also be increased conveniently to the contact form of 2a+2b. the stable contact resistance has ensured very good performance under controlled logical current signals. The product surface is attached with eye-catching warning labels with a view to ensuring safe-use.
The product is widely used in pressing machine. Punching equipments, benders, Spot welders. Various automatic mechanical equipments, medical instruments and other field.
