Quick Details
-
Voltage:
-
380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Allraise
-
Dimension(L*W*H):
-
1380*1200*1020mm
-
Weight:
-
760 KG, 760kg
-
Name:
-
Automatic Roll To Roll Sticker Label Laminating Machine
-
Model:
-
ZM-500BJ
-
Maximum roll diameter:
-
650mm
-
Roll laminating width:
-
100mm(min)~460mm(max)
-
Core diameter:
-
76mm
-
Hot roller length:
-
500mm
-
Laminating speed:
-
6~65m/min
-
Hot roller heating method:
-
Heating oil
-
HTF model:
-
NO.320
Quick Details
-
Packaging Type:
-
Film
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Hydraulic
-
Voltage:
-
380V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Allraise
-
Dimension(L*W*H):
-
1380*1200*1020mm
-
Weight:
-
760 KG, 760kg
-
Name:
-
Automatic Roll To Roll Sticker Label Laminating Machine
-
Model:
-
ZM-500BJ
-
Maximum roll diameter:
-
650mm
-
Roll laminating width:
-
100mm(min)~460mm(max)
-
Core diameter:
-
76mm
-
Hot roller length:
-
500mm
-
Laminating speed:
-
6~65m/min
-
Hot roller heating method:
-
Heating oil
-
HTF model:
-
NO.320
Products Description

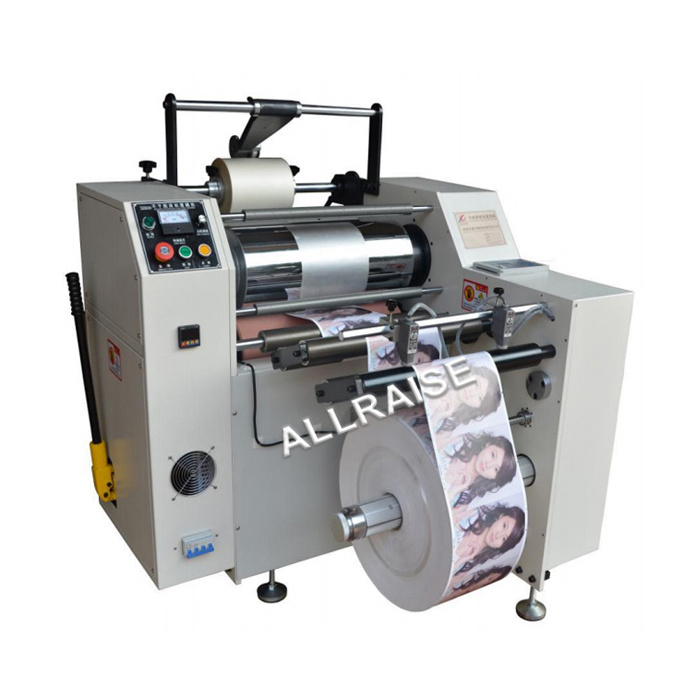

Automatic Roll To Roll Sticker Label Laminating Machine Film Laminating Machine Adhesive Labels Lamination Machinery
|
Name
|
BJ-500 Roll to Roll Label Heat Laminate Machine (Correcting)
|
|
|
Model
|
BJ-500
|
|
|
Max. Rewind diameter
|
550mm
|
|
|
Roll laminating width
|
100mm（min）～420mm（max）
|
|
|
Core Diameter
|
76mm
|
|
|
Hot Roller length
|
500mm
|
|
|
Laminating Speed
|
6～55m/min
|
|
|
Laminating Temperature
|
80-130℃
|
|
|
Heating Way
|
Heating oil
|
|
|
Heat conducting oil Model
|
320#
|
|
|
Voltage and Power
|
380V,6KW
|
|
|
Overall Dimension
|
1380×1200×1060mm
|
|
|
Weight
|
0.7t
|
|
|
Standard configuration
|
Cutting membrane knife group or dusting roller device
|
|
|
Note
|
The film temperature can be customized according to customer demand.
|
|
|
Minly applicable to Cardboard,Coated Paper, synthetic Paper,PP reel materials the lamination.
|
|
|
|
It can save the self-adhesive glossy film laminating cost by about 45%.
It can save the self-adhesive coarse film laminating cost by about 50%. It can save the self-adhesive laser film laminating cost by about 60%. |
|
|
Related Products
Contact us
Package&Shipping
|
Packaging
|
By container or standard export packing per machine
|
|
Delivery time
|
15-30 days after payment received
|
