Quick Details
-
Brand Name:
-
Jinhui
-
Model Number:
-
811
-
Type:
-
putty
-
Hardness:
-
84 shore D
-
Color:
-
Iron
-
Compress strength:
-
96.8 MPA
-
Tensile strength:
-
32.2 MPA
-
Shear strength:
-
20.5 MPA
-
Temperature range:
-
-50-168 oC
Quick Details
-
CAS No.:
-
mixture
-
Other Names:
-
adhesive for cast iron
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jinhui
-
Model Number:
-
811
-
Type:
-
putty
-
Hardness:
-
84 shore D
-
Color:
-
Iron
-
Compress strength:
-
96.8 MPA
-
Tensile strength:
-
32.2 MPA
-
Shear strength:
-
20.5 MPA
-
Temperature range:
-
-50-168 oC

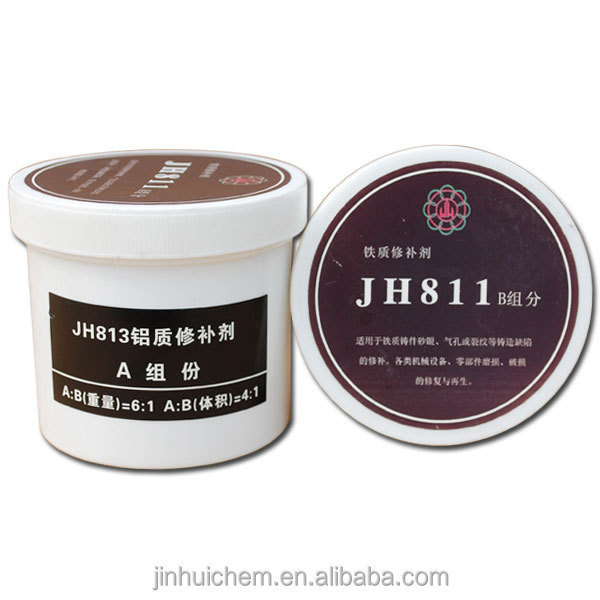

Epoxy Cast Iron putty 811
1, Rebuild and repair of porous, crackle on casting iron surface.
2, Wear and corrosion resistance ,similar to original material colors.
3, Can be drilled,tapped and machined after curing.
Typical application
For rebuild and repair of porous,crackle on casting iron surface. Provides superior adhesion and resistance to impact, and wear under typical dry service temperatures of –60°C to +168°C
DIRECTIONS FOR USE
1. Aggressively clean surface to be repaired and abrasive pad. If possible, use wire brush with cleaner.
2. Add hardener to resin. Mix material thoroughly using a circular lifting motion being sure to mix along the bottom and sides. Avoid whipping air into the mixture.
3. Trowel material onto prepared surface.
4. At 25°C (77°F) working time is 10 minutes and material is functional in 8 hours.
|
Product |
Container |
Color |
Density (g/cm³) |
Tensile shear strength (N/mm 2 ) |
Compress strength (Mpa) |
Tensile strength (Mpa) |
Pear strength (Mpa) |
Hardness (Shore D) |
Temperature (°C) |
|
811 |
500g |
Iron |
1.62 |
20.5 |
96.8 |
32.2 |
56.5 |
84 |
-60~160 |
|
812 |
500g |
Grey |
1.68 |
22 |
105.3 |
37.8 |
58.3 |
84 |
-60~160 |
|
813 |
250g |
Alum |
1.41 |
22.5 |
99.2 |
32.6 |
51.6 |
82 |
-60~160 |
|
814 |
250g |
copper |
1.53 |
21 |
90.6 |
35.9 |
51.4 |
81 |
-60~160 |
Inner package: 500g
