- Product Details
- {{item.text}}
Quick Details
-
use for:
-
greeting cards,sound boxes, ultra-thin plastic boxes, hand bags
-
Speaker:
-
27mm/ 29mm/ 40mm Metal
-
Battery:
-
3pcs AG10 or AG13
-
Product name:
-
pre-recording sound module
-
Components:
-
PCB board, IC, Speaker, Microphone, Recorder, Player, Button
-
Memory:
-
128mb-32gb
Quick Details
-
Place of Origin:
-
Guangdong, China
-
component:
-
PCB+Speaker + battery
-
Volume:
-
80db
-
use for:
-
greeting cards,sound boxes, ultra-thin plastic boxes, hand bags
-
Speaker:
-
27mm/ 29mm/ 40mm Metal
-
Battery:
-
3pcs AG10 or AG13
-
Product name:
-
pre-recording sound module
-
Components:
-
PCB board, IC, Speaker, Microphone, Recorder, Player, Button
-
Memory:
-
128mb-32gb

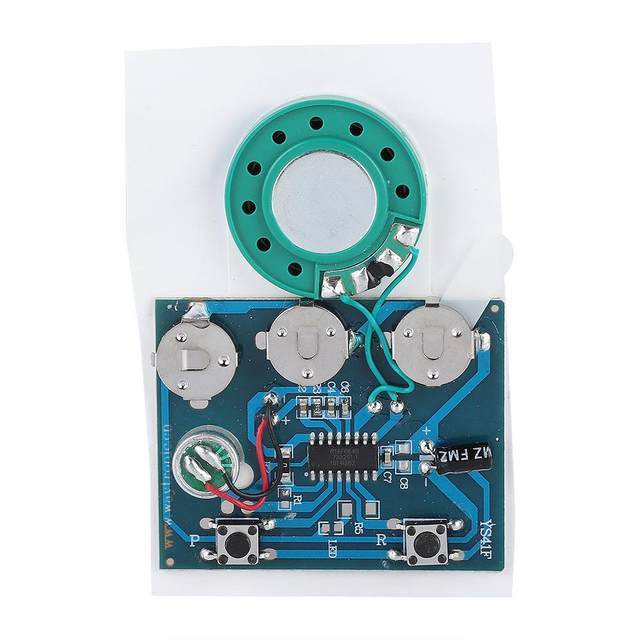

Custom Pre-recording and Recordable sound module card for musical card with led light mini voice recorder chip
•The Sound modules has many options for audio play, mainly a simple push button or slide switch, other activation ways can also be achieved such as light, motion or impact.
•Meet CE RoHS REACH quality standard.
• Component included PCB, 3pcs AG10 cell battery, microphone, wires, speaker and buttons
•The sound duration, speaker type, activation all accept customized
• Record your own sounds,voice,messages or music or any sound effects, add on the greeting cards, gifts and toys or other products, enhance attractive and competitiveness.
•OEM/ODM is OK ! Welcome to contact us !
•More information, welcome your inquire and email!
Specification
| Item name | recordable sound module for greeting card |
| Used for | greeting cards,toys, gifts, gifts package,promotional items |
| To use | press record button to record,press other to play |
| Sound duration | 15/30/60/120 seconds, accept custom |
| Speaker type | 40 mm plastic speaker |
| Customized | size,shape,sound duration,speaker type all accept customized |
| Lifespan | more than 500 times |
| Quality standard | CE ROHS REACH Phthalate-free |
| Battery | 3pcs AG10 button cell batteries |
| Type |
Logic ICs |
Programmable Greeting Card Animal Sound Module Custom a sound ic mp3 sound voice recorder music chip
1. 30 s recordable sound module, with speaker, microphone and button.
2. You can re-record your message at any time.
3. This is the perfect module for you to express your feelings to your friends, lovers and family.
4. Three kinds of styles, which are key control, photosensitive control, wired dual control buttons for your choice.
5. Application to the production of creative gifts, such a homemade postcard, Gift box, cake box, Flower box, chocolate boxes.
Specifications:
Power supply: button element
Control method: keyboard control, photosensitive control, wired dual button control (optional)
Audio output: 0.5 W / 16 Ohm
Recording time: 30 s
Change method: multiple entry
Module size (L * W): 50 * 40 mm / 1.97 * 1.57 inches; Speaker size: 30 mm / 1.18 inches
Gross weight: 50 g
Instruction:
1. Click the record button, and then start recording after the “beep”. After 30 seconds, there is a double “beep, beep”, which means the end of the recording.
2. press the play button to play the recording after recording is completed; Press the play button to stop playback when playing a recording. (For cooking, keyboard controls or wired two-button control modules)
3. This module will play your recording when illuminated, after all the recordings are finished; And stop playing when you stay away from the light. (For cookingPhotosensitive control module)
Parcel list:
1 x voice recording module with 3Button elementS
