1. Automatic design completely according to the chemical capability of raw material and candom molding craftwork, compact facility flow.
2. According to the theory of hot air moving up, the oven adopts tunnel drying way to reclaim the hot wind by circulating mixture that gets the best effect at the minimum power.
3. Utilize the effective heating space and the hot-wind circulation theory to reduce the cost; multi PID intelligent controlled temperature systems make the error cannot exceed ±5, even heated and good brightness.
4. High output, special union joint design, easy to replace mould, picks up the circular speed.
5. Automatic vibrant drip or uniform latex system makes glove excellent and uniform thickness.
6. Adopt the special fire-resistant chain; pick up yield speed, advanced output.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
65m*3m*4.5m
-
Weight:
-
55000
-
Power (kW):
-
70
-
Product name:
-
Condom Making Machine
-
Application:
-
Make Latex Dipping Condom
-
Name:
-
Condom Production Line
-
Number of molds installed:
-
5400pcs
-
Production capacity:
-
350000/24h
-
Keywords:
-
condom making machine fully automatic
-
Usage:
-
condom making equipment
-
Function:
-
latex condom making machine
-
Key words:
-
make condom machine
-
Key word:
-
condom maker machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YG/OEM
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
65m*3m*4.5m
-
Weight:
-
55000
-
Power (kW):
-
70
-
Product name:
-
Condom Making Machine
-
Application:
-
Make Latex Dipping Condom
-
Name:
-
Condom Production Line
-
Number of molds installed:
-
5400pcs
-
Production capacity:
-
350000/24h
-
Keywords:
-
condom making machine fully automatic
-
Usage:
-
condom making equipment
-
Function:
-
latex condom making machine
-
Key words:
-
make condom machine
-
Key word:
-
condom maker machine
Economical and Practical Condom Porduction Line Automatic Latex Condom Making Machine
Product Description

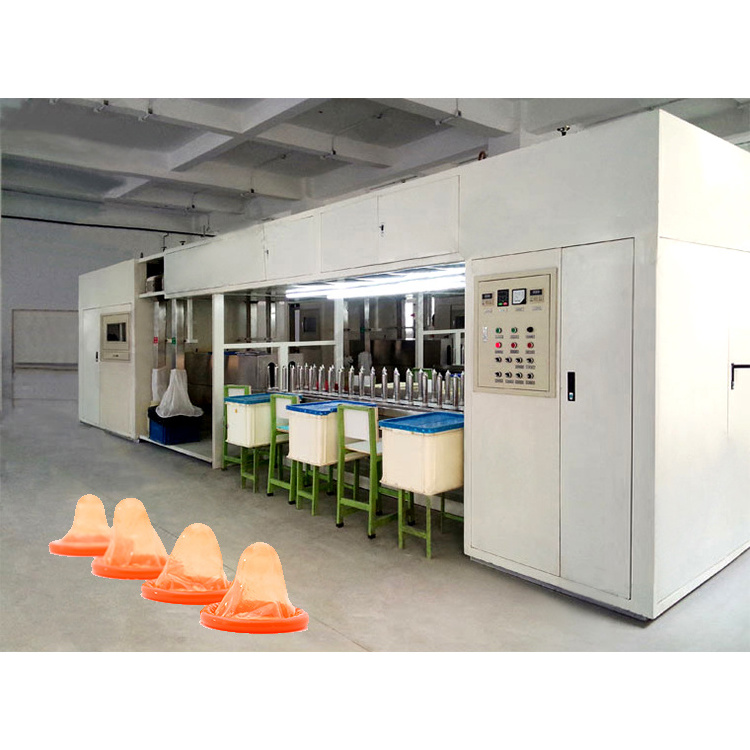

Automatic Latex Condom Making Machine
Technical Parameters
|
Production Line Size
|
Length 65m×Width 3m×Height 4.5m or Customized
|
|
Production Capacity
|
350,000 pcs/24h or Customized
|
|
Number of Installed Molds
|
5400pcs
|
|
Chain Length of Production Line
|
215M
|
|
Mold Spacing
|
80mm
|
|
Chain Speed
|
0-10m/min
|
|
Voltage
|
380V,50HZ
|
|
Drive Motor Power
|
3*2.2Kw
|
|
Power Consumption
|
70KW
|
|
Heat Energy Consumption (steam)
|
1T/h
|
|
Water Consumption
|
6T/h
|
|
Soft Water Consumption
|
10T/24h
|
Product Advantage
Technical features of vertical dipping and vertical flap drying condom equipment:
1. Adopting advanced three-step impregnation process technology, advanced process layout and diversified process production adjustment.
2. The ammonia water swelling process is cancelled and the longer alkaline water tank design is changed to achieve the effect of swelling and leaching, which is environmentally friendly and economical.
3. The template is made of 304 stainless steel, the whole chain is driven by three hosts, and the frequency conversion speed control is used to make the equipment run smoothly.
4. The whole machine is ceiling made of stainless steel plate and sealed with plastic steel.
5. The equipment has been fully, effectively and reliably designed to prevent head bubbles, backflow, crooked necks, curling, pinholes, etc.
6. It can produce all kinds of ordinary and special-shaped condoms such as smooth, granular, threaded, and colorful condoms.
7. All rubber materials used in production are pressure conveyed by fully enclosed stainless steel pipelines.
8. Energy-saving design of the film drying structure, which consumes 19.5kg of standard coal per 10,000 condoms.
9. De-filming with clean water and continuous pickling to fully ensure the cleanliness of molds and equipment.
10. Mix powder on the machine, dehydrate, and directly dry after vulcanization, making the production operation more energy-saving and simpler.
