Quick Details
-
Power:
-
1.1-7.5kw
-
Min. Lifting Height:
-
4m
-
Table Size:
-
As your demand
-
Overall Dimensions:
-
As your demand
-
Weight:
-
500 kg
-
After-sales Service Provided:
-
Online support
-
Power Source:
-
AC DC or Diesel
-
Tyre:
-
Pneumatic rubber tire, Solid rubber tire, or Polyurethane
-
Paint:
-
Epoxy paint
-
Emergency Decline Valve:
-
Include
-
Spillover Valve:
-
Include
-
Table Material:
-
Pattern steel board
-
Organ Cover:
-
Include
-
Certification:
-
CE ISO
-
Scissor Lift Tube:
-
High strength rectangular tube
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YunTian
-
Power:
-
1.1-7.5kw
-
Min. Lifting Height:
-
4m
-
Table Size:
-
As your demand
-
Overall Dimensions:
-
As your demand
-
Weight:
-
500 kg
-
After-sales Service Provided:
-
Online support
-
Power Source:
-
AC DC or Diesel
-
Tyre:
-
Pneumatic rubber tire, Solid rubber tire, or Polyurethane
-
Paint:
-
Epoxy paint
-
Emergency Decline Valve:
-
Include
-
Spillover Valve:
-
Include
-
Table Material:
-
Pattern steel board
-
Organ Cover:
-
Include
-
Certification:
-
CE ISO
-
Scissor Lift Tube:
-
High strength rectangular tube
Mini Hydraulic lift platform tables car lift for sale
Application place
Mini Hydraulic Scissor Lift Table 2000kg is a special design for special people and building. Mini Hydraulic Scissor Lift Table 2000kg can also used to lift or vertical transmission cargo to the specified height. Mini Hydraulic Scissor Lift Table 2000kg is usually installed in a pit that we can design and teach you to make. If not convernient, you can also use the Guide Rail instead of the pit.
Main Body Structure of Mini Hydraulic Scissor Lift Table 2000kg
1. Fence: Usually 900mm with electricity protective device and a door can easily open and close manually.
2.Handle: You can press it if the power is off to avoid the worker hurt.
3.
Manual Switch:
Two manual switchs which can be controlled both on the table and ground.
4.Distribution box: Include the "up","down" and "pause" button.
5.Scissor lift structure: High strengthen rectangular tube to ensure lifting steady and safely.
6.Table Material :
The pattern steel board against slipping.
7.Organ Cover: To be installed to against the dust and damp.
Technology Datas of Mini Hydraulic Scissor Lift Table 2000kg
|
Model |
Table size |
Capacity |
Net lifting height |
Min height |
Total dimension |
|
SGY1-1.5 |
1200×1200mm |
1T |
1.5m |
560mm |
1200×1200×560mm |
|
SGY0.3-2.9 |
1400×750mm |
0.3T |
2.9m |
710mm |
1400×750×710mm |
|
SGY 2-4 |
1600×1600mm |
2T |
4 m |
670mm |
1600×1600×670mm |
|
SGY 0.3-5 |
1800×1200mm |
0.3T |
5m |
760mm |
1800×1200×760mm |
|
SGY 1-1.5 |
2000×1500mm |
1T |
1.5m |
520mm |
2000×1500×520mm |
|
SGY 1-4.2 |
2000×2000mm |
1T |
4.2m |
850mm |
2000×2000×850mm |
|
SGY 3-3.5 |
2000×2000mm |
3T |
3.5m |
800mm |
2000×2000×800mm |
|
SGY 2-5 |
2200×1500mm |
2T |
5m |
1050mm |
2200×1500×1050mm |
|
SGY 1.5-8.5 |
2400×1600mm |
1.5T |
8.5m |
1450mm |
2400×1600×1450mm |
|
SGY 2-3.5 |
2400×2000mm |
2T |
3.5m |
780mm |
2400×2000×780mm |
|
SGY 3-7 |
2500×1400mm |
3T |
7m |
1250mm |
2500×1400×1250mm |
|
SGY 5-5 |
2800×2000mm |
5T |
5m |
1020mm |
2800×2000×1020mm |
|
SGY 2-4.5 |
2800×2600mm |
2T |
4.5m |
810mm |
2800×2600×810mm |
|
SGY 2-2 |
3000×1300mm |
2T |
2m |
600mm |
3000×1300×600mm |
|
SGY 1-5.8 |
3000×2400mm |
1T |
5.8m |
770mm |
3000×2400×770mm |
|
SGY 3-7 |
3000×2500mm |
3T |
7m |
1080mm |
3000×2500×1080mm |
|
SGY 4-1.65 |
3200×1850mm |
4T |
1.65m |
600mm |
3200×1850×600mm |
|
SGY 28-1.9 |
4000×3500mm |
28T |
1.9m |
800mm |
4000×3500×800mm |
|
SGY 2.5-6 |
4500×2200mm |
2.5T |
6m |
1000mm |
4500×2200×1000mm |
|
SGY 4-3.15 |
5000×2400mm |
4T |
3.15m |
700mm |
5000×2400×700mm |
|
SGY 3-2.8 |
6000×3500mm |
3T |
2.8m |
750mm |
6000×3500×750mm |
|
SGY 4-1 |
6000×2000mm |
4T |
1m |
420mm |
6000×2000×420mm |
|
SGY 3.5-6 |
6000×2800mm |
3.5T |
6m |
850mm |
6000×2800×850mm |
|
SGY 6.5-4.2 |
8000×3000mm |
6.5T |
4.2m |
850mm |
8000×3000×850mm |
Safety Precautions of Mini Hydraulic Scissor Lift Table 2000kg :
- Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
- Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
- Emergency decline valve: it can go down when you meet an emergency or the power off.
-
Anti-dropping device: Prevent falling of platform
Warranty of Mini Hydraulic Scissor Lift Table 2000kg :
- 12 months from delivery apart from artificial damage.
- Free lifelong technical service

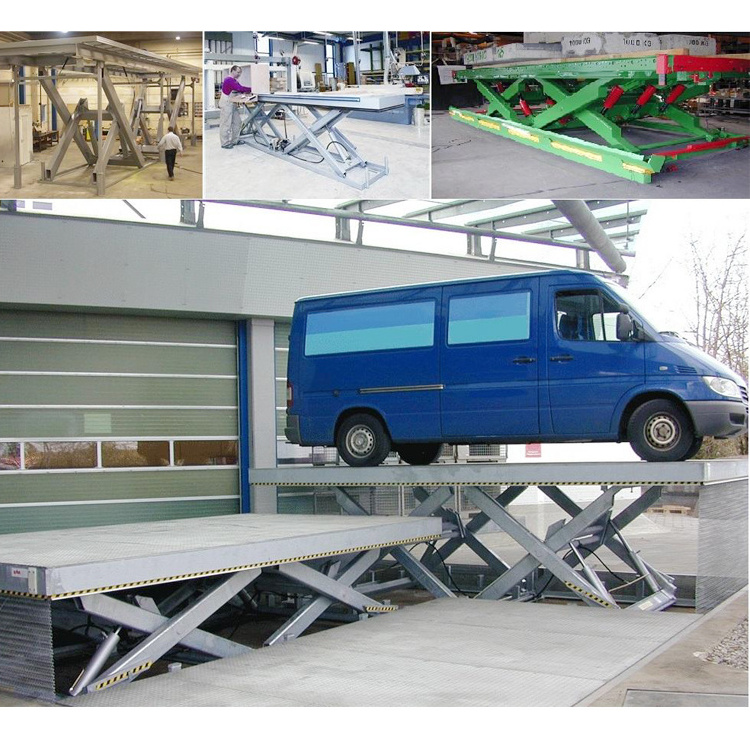

Detail Pictures of Mini Hydraulic Scissor Lift Table 2000kg
