Quick Details
-
Filling Accuracy:
-
99
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MEITAR
-
Dimension(L*W*H):
-
2200X2100X2200MM
-
Weight:
-
2500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
aerosol can filling machine line
-
Filling speed:
-
2400-3600cans/H
-
Liquid Filling volume:
-
10-750ml
-
Gas filling volume:
-
10-750ml
-
Filling accurancy:
-
≤±1%
-
Keywords:
-
aerosol filling mchine
Quick Details
-
Machinery Capacity:
-
2000BPH
-
Packaging Material:
-
Metal
-
Filling Material:
-
Other
-
Filling Accuracy:
-
99
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MEITAR
-
Dimension(L*W*H):
-
2200X2100X2200MM
-
Weight:
-
2500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
aerosol can filling machine line
-
Filling speed:
-
2400-3600cans/H
-
Liquid Filling volume:
-
10-750ml
-
Gas filling volume:
-
10-750ml
-
Filling accurancy:
-
≤±1%
-
Keywords:
-
aerosol filling mchine
Product Description

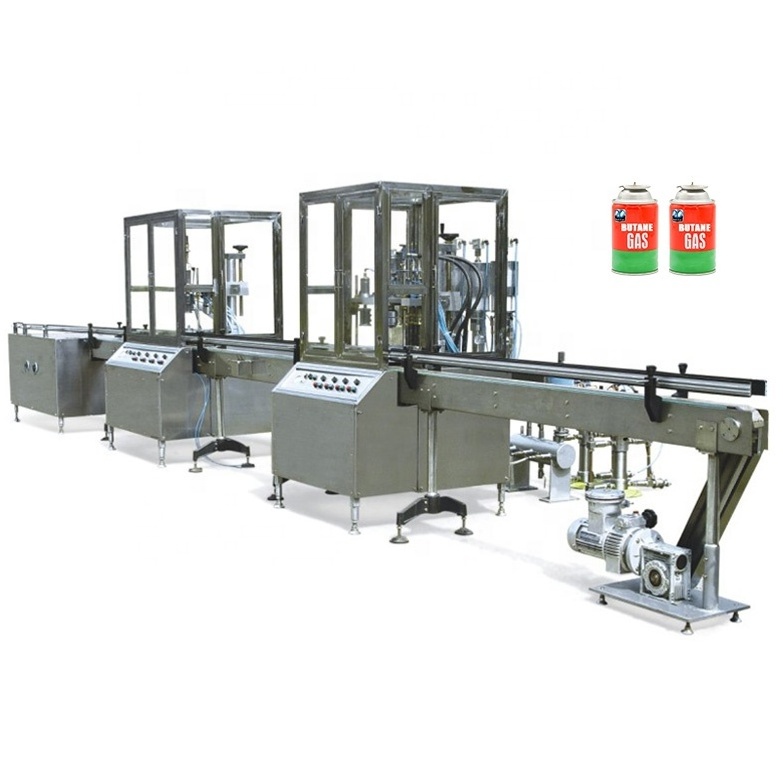

Automatic Aerosol LPG propane Butane Gas Cartridge Filling Machines
consist of 1 cans arranging machine , 2 valve sorting & inserting machine , 3 vacuum valve crimping and gas filling machine , 4 automatic weighing machine , 5 water bath leakage tester , 6 capping machine , 7 ink jet printer , 8 packing table , etc.
consist of 1 cans arranging machine , 2 valve sorting & inserting machine , 3 vacuum valve crimping and gas filling machine , 4 automatic weighing machine , 5 water bath leakage tester , 6 capping machine , 7 ink jet printer , 8 packing table , etc.
|
|
Technical Parameter
Production capacity: 2400-3600cans/h
Liquid filling capacity: 30-750ml
Gas filling capacity: 30-750ml
Filling accuracy≤±1%
Sealing accuracy≤0.3%
Air pressure: 0.8-1Mpa
Max. Air Consumption 3-5m3/min
Applicable can Diameter 35-71mm
Applicable can
Height 85-330mm
Details Images
Consists of a valve sorting, valve inserting, valve correcting. saves labor and improves production efficiency. It can insert the aerosol valve with or without tubes.
Vacuum & Valve crimping & Gas filling machine
Crimping machine is used to seal the valve
with internal expanding mode. Gas fillers is applicable to fill Propane, Butane, Freon, DME, Carbon Dioxide, Nitrogen, Oxygen, compressed air and R134a, etc. No can no filling.
the whole machine is fully explosion-proof,
it could detect the weight of each finished can, and reject the unqualified can automatically. It has advantage of easy operation, fast speed, high accuracy and good stability
use to test aerosols’ leakage. putting aerosol products into water tanks automatically and control the temperature in tanks at 55℃ (by electrical heating or steam heating) checking the inner pressure and leakages of valve or cans.
consists of a vibration hopper and an indexing table, it can automatically arrange and convey caps, and automatically press caps onto aerosol cans.
House Care
HOUSE CARE:
air freshener, insecticide, furniture spray, pesticide, leather spray, toilet spray, glass spray.
Personal Care
PERSONAL CARE:
perfume, deodorant, hair spray, shaving gel/foam, mouth spray, cosmetic spray, self-defence spray, police spray.
Car Care
CAR CARE:
tyre repair spray, car windows spray, upholstery spray, engine cleaner spray.
Industries
OTHER INDUSTRIES:
spray painting, PU foam, LPG cartridge, refrigerant gas, butane gas, fire extinguisher, anti-rust spray, mould release spray.
