Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 240*115*90 mm, 200*200*60 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HONGBAOYUAN
-
Voltage:
-
Adjustable
-
Dimension(L*W*H):
-
395*210*278CM
-
Weight (KG):
-
6000 kg
-
Weight:
-
4.0MT
-
Daily production capacity:
-
48000pcs for 240X115X52 mm
-
Pallet size:
-
850*550*30mm
-
Forming Cycle:
-
16-18S
-
Water consumption:
-
4T/DAY
-
production area:
-
2000 square meter
-
workers:
-
4
-
pallets quantity:
-
1500-2000pcs
-
Name:
-
automatic block machine
Quick Details
-
Type:
-
Paving Block Making Machine
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
Other, 5760 pcs/8hours, 3200 pcs/8hours, 6000-480000 blocks per day
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 240*115*90 mm, 200*200*60 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HONGBAOYUAN
-
Voltage:
-
Adjustable
-
Dimension(L*W*H):
-
395*210*278CM
-
Weight (KG):
-
6000 kg
-
Weight:
-
4.0MT
-
Daily production capacity:
-
48000pcs for 240X115X52 mm
-
Pallet size:
-
850*550*30mm
-
Forming Cycle:
-
16-18S
-
Water consumption:
-
4T/DAY
-
production area:
-
2000 square meter
-
workers:
-
4
-
pallets quantity:
-
1500-2000pcs
-
Name:
-
automatic block machine

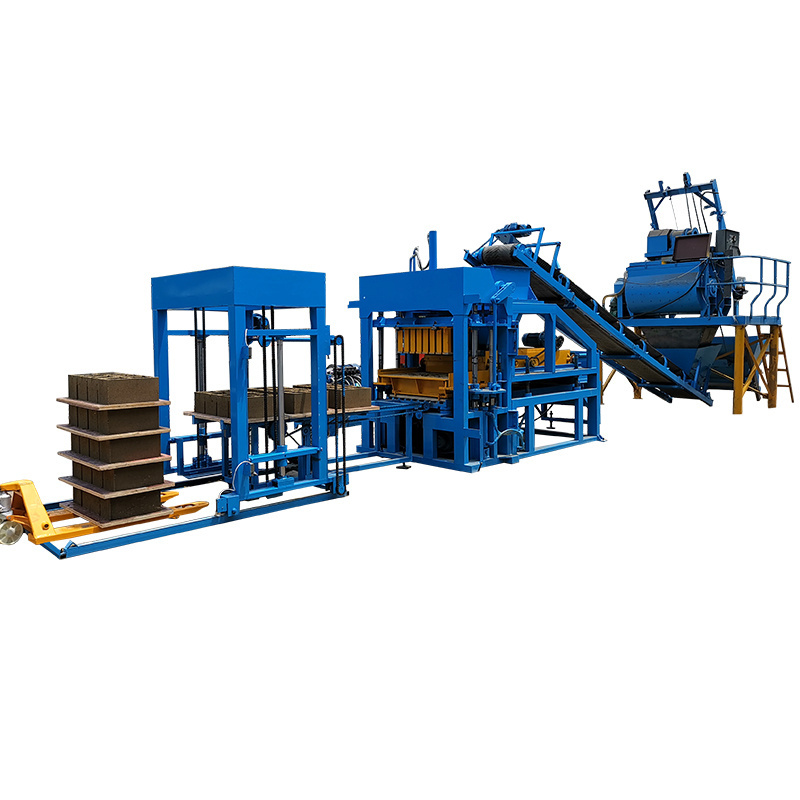

high quality QTJ4-15 new products
automatic concrete cement block making machine
Mobile No.:+86 15969940592
Product Presentation
1. QTJ4-15 Hydraulic Automatic Brick Making Machinery cal control systems . It is characterized by high efficiency, reasonable design, compact structure, easy operating and convenient maintenance .
2. For the product forming, the machine takes the hydraulic force as the main and the mechanical force as the auxiliary, through vibrating and pressing, to finish the forming procedure. The formed products are high in compressive strength, good in density, perfect in anti-frost and precise in dimensions . Its four guiding columns are coated with cadmium, having perfect torsional strength and wearing capacity. Its material distributor, using sensor and hydraulic proportional driving technologies, can produce forced centrifugal discharging under the function of swing and arc-breaking mechanism to provide quick and even material distributing, and to increase the productivity.
3. For multi-function use
Main Technical Specifications
| Forming pieces | 400*200*200 4pcs/mould hollow brick |
| 240*115*90 12pcs/mould cellular brick | |
| 240*115*53 26pcs/mould standard brick | |
| Total Weight | 6T |
| Forming Cycle | 20-25s |
| Size of host Machine | 3400*2100*2500mm |
| Power of Host Machine | 15kw |
| Exciting Force | 60kn |
| Vibrating Frequency | 3000-4500r.pm |
| Size of Carriage Plate | 900*550*30mm |
| Daily production capacity for hollow bricks | 5800pcs |
| Daily production capacity for cellular bricks | 18000pcs |
| Daily production capacity for standard bricks | 38000pcs |
Other Information
1. Area: Workshop area: 150-200m2, all factory area 2000m2, the bigger, the better.
2. Workers : three or four
3. Ratio of raw material:cement 8%-10%;sand 30%-40%;stone:50%-60%,
about cement :sand : stone is 1:4:5.
4.hollow block weight:
(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG
5. raw material consumption per day:150-170T
6. water consumption per day:3%-5% of raw material .Weight.
Assessment Guarantee
1.One year warranty for the critical component.
2.After one year, we can help you to maintain the machine and the accessories are provided only on the cost price.
3.We can help you train the operator and mechanic.
4.We can help you to design the production line, workshop and provide turn-key project.
5.We give our cement brick making machine one year guarantee,during the period we can supply spares if they are broken.
Brick Sample
Assessment Advantage
1.Key parts: motor(CE certificate),Taiwan hydraulic unit
(COMPASS CHAOTIAN),Japan hydraulic valve,high strength steel (No.45 national standard steel ) and special welding technology.
2.Scatter: using 360 degree revolving material-scattering,corresponding to scatter material twice,
one time is ok,the speed is high,so the blocks have high density and strength.
3.Moulds: through 900 Degrees Celsius High temperature carburizing heat treatment, strong and durability and long service life
4. Hollow bricks can reach 8-10Mpa,Solid bricks can reach 10-12Mpa,so they have a higt pressure,can be widely used.
