Quick Details
-
EINECS No.:
-
500-033-5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
None
-
Type:
-
Double Components Ahesive
-
Other Name:
-
Two component epoxy adhesives / Ceramic glue
-
Mixing Ratio:
-
1:1
-
Adhesive Thickness:
-
1-2mm
-
Color:
-
Light Yellow and white
-
Application:
-
Bonding ceramic, metal, plastic, glass steel
-
Viscosity:
-
90~115; 14~17
-
Hardness:
-
80±5
-
MOQ:
-
1 Set
-
State:
-
Paste
-
working temperature:
-
- 30- 220 ℃
Quick Details
-
CAS No.:
-
61788-97-4
-
Other Names:
-
ceramic glue
-
MF:
-
C11H12O3)n
-
EINECS No.:
-
500-033-5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
None
-
Type:
-
Double Components Ahesive
-
Other Name:
-
Two component epoxy adhesives / Ceramic glue
-
Mixing Ratio:
-
1:1
-
Adhesive Thickness:
-
1-2mm
-
Color:
-
Light Yellow and white
-
Application:
-
Bonding ceramic, metal, plastic, glass steel
-
Viscosity:
-
90~115; 14~17
-
Hardness:
-
80±5
-
MOQ:
-
1 Set
-
State:
-
Paste
-
working temperature:
-
- 30- 220 ℃
Two component epoxy adhesives / Ceramic glue to metal for wear resistant application
Product Description
Epoxy resin adhesive for
Two component epoxy adhesives / Ceramic glue to metal for wear resistant application
is a room temperature or heating curing modified epoxy adhesive which is suitable for the bonding of various metals, plastics, glass fiber reinforced plastics, porcelain, wood and other materials. This product has a strong bond strength and good toughness and its adhesive layer can resist water, oil, acid and alkali, and is easy to use.
TECHNICAL PARAMETER
Physical parameters of
Two component epoxy adhesives / Ceramic glue to metal for wear resistant application
|
Test items
|
Test method
|
Component A
|
Component B
|
|
|
Appearance
|
Visual inspection
|
White
|
Cream colored to off-white
|
|
|
Density
|
Gravity cup（25C）
|
1.5±0.10
|
1.5±0.10
|
|
|
Operation time （min)
|
Mix 100g glue（25C）
|
20±5
|
|
|
|
Initial curing time （min)
|
Mix thin layer（25C，1mm)
|
60
|
|
|
|
Hardness (Shore A)
|
Hardness block
|
80±5
|
|
|
|
Adhesion（MPa)
|
Drawing method（25C）
|
15
|
|
|
How To Use
a.
Mixing ratio: A: B = 1:1 (weight ratio)
b. The bonding surface must be dry, clean and free of oil stain. In case of smooth surface, appropriate
b. The bonding surface must be dry, clean and free of oil stain. In case of smooth surface, appropriate
grinding treatment is required.
c. Mix component A and B according to the proportion, mix evenly and then apply adhesive.
d. The highest strength can be obtained after curing at constant temperature and humidity for more than
c. Mix component A and B according to the proportion, mix evenly and then apply adhesive.
d. The highest strength can be obtained after curing at constant temperature and humidity for more than
24 hours.
e. If rapid heating is required, the temperature can be controlled between 40-60 degrees, the higher the
e. If rapid heating is required, the temperature can be controlled between 40-60 degrees, the higher the
temperature, the faster the curing speed.
Packing & Delivery
To better ensure the safety of
Two component epoxy adhesives / Ceramic glue to metal for wear resistant application
, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Note:
1. The two components A and B of
Epoxy resin adhesive for wear resistant ceramic liner / ceramic paste for alumina tiles and metal surface
should be separately sealed and stored at room temperature. The storage life of the product is one year.
2. The glue solution poured out from the package shall be used up at one time, and shall not be returned to component A or B.

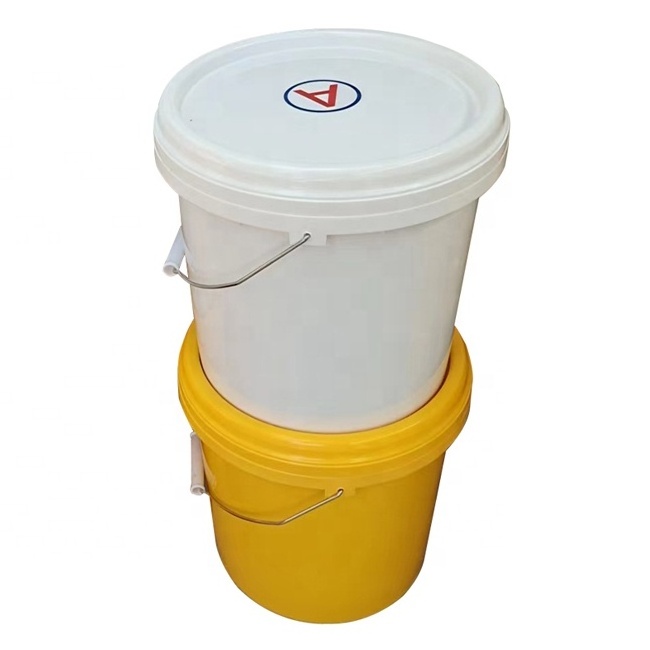

3. Package: 5kg / barrel for component A and 5kg / barrel for component B.
2. The glue solution poured out from the package shall be used up at one time, and shall not be returned to component A or B.
3. Package: 5kg / barrel for component A and 5kg / barrel for component B.
