Quick Details
-
Suitable for:
-
Fire Exit Door/Exit Escape Door/Steel Door
-
Color:
-
Sliver by painted, or customized
-
Finish:
-
Polished
-
Material:
-
Painted Iron (Stainless Steel 304 is Optional)
-
OEM:
-
Acceptaple
-
Panic bar size:
-
650mm, 800mm, 1000mm, or customized
-
Fire resistance time:
-
90 minutes
-
Door height:
-
2100-2400 mm
-
Application:
-
Hotel, Office, School, Shopping Mall, Building
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EBM/OEM
-
Name:
-
Panic bar, fire door panic exit device, push bar panic exit device
-
Suitable for:
-
Fire Exit Door/Exit Escape Door/Steel Door
-
Color:
-
Sliver by painted, or customized
-
Finish:
-
Polished
-
Material:
-
Painted Iron (Stainless Steel 304 is Optional)
-
OEM:
-
Acceptaple
-
Panic bar size:
-
650mm, 800mm, 1000mm, or customized
-
Fire resistance time:
-
90 minutes
-
Door height:
-
2100-2400 mm
-
Application:
-
Hotel, Office, School, Shopping Mall, Building
Fire Rated Emergency Escape Door Vertical Rod Exit Device Two Points Lock Anti Panic Device Double Leaf Door Push Rod Panic Bar
Specification
|
Name
|
Panic bar, fire door panic exit device, push bar panic exit device
|
|
Material
|
Painted Iron (Stainless steel is optional)
|
|
Shape
|
T-Shaped
|
|
Product Size
|
650mm/ 800mm /1000mm, or customized
|
|
Fits Doors
|
71-110cm / 28-42"
|
|
Color
|
Silver or customization
|
|
Finish
|
Polished
|
|
Fire resistance time
|
90 minutes
|
|
Door height
|
2100-2400mm
|
|
Open Force
|
≤70N
|
|
Application
|
Hotel, Hospital, Office, Market, School, Shopping mall...
|
|
OEM&ODM
|
Available
|
Products Description

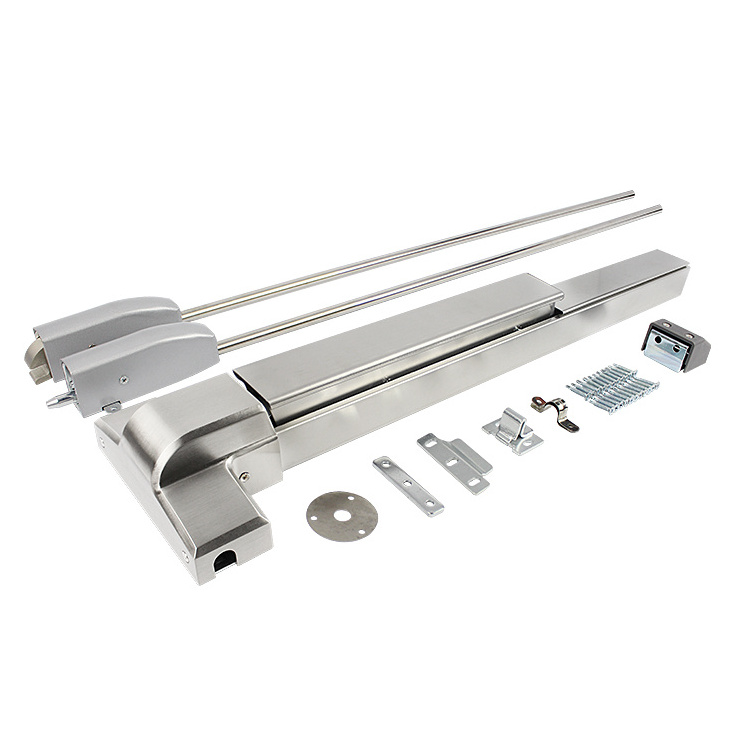

Vertical Rod type Push Bar Panic Exit Device for double leaf door
Features:
1. Close by two points
2. Vertical Rod type
3. Half length push bar (Full length is Optional)
4. Different length according to the thickness of door
5. Different colors can be choose
6. BODY: Painted steel chassis-Half Arm (Stainless Steel is Optional)
7. INSTALLATION: Vertical installation for double leaf doors.
8. USAGE: Suitable for both left and right-handed doors.
9. LOCKING SYSTEM: Key cylinder with 3 keys for external opening. Touch bar mechanism from inside opening with safety function.
10. CONSTANT FLOW(Optional): Dogging mechanism operated by knob.
11.Lever handle (Optional): From outside by handle with rosette with 3 keys.
Features:
1. Close by two points
2. Vertical Rod type
3. Half length push bar (Full length is Optional)
4. Different length according to the thickness of door
5. Different colors can be choose
6. BODY: Painted steel chassis-Half Arm (Stainless Steel is Optional)
7. INSTALLATION: Vertical installation for double leaf doors.
8. USAGE: Suitable for both left and right-handed doors.
9. LOCKING SYSTEM: Key cylinder with 3 keys for external opening. Touch bar mechanism from inside opening with safety function.
10. CONSTANT FLOW(Optional): Dogging mechanism operated by knob.
11.Lever handle (Optional): From outside by handle with rosette with 3 keys.
