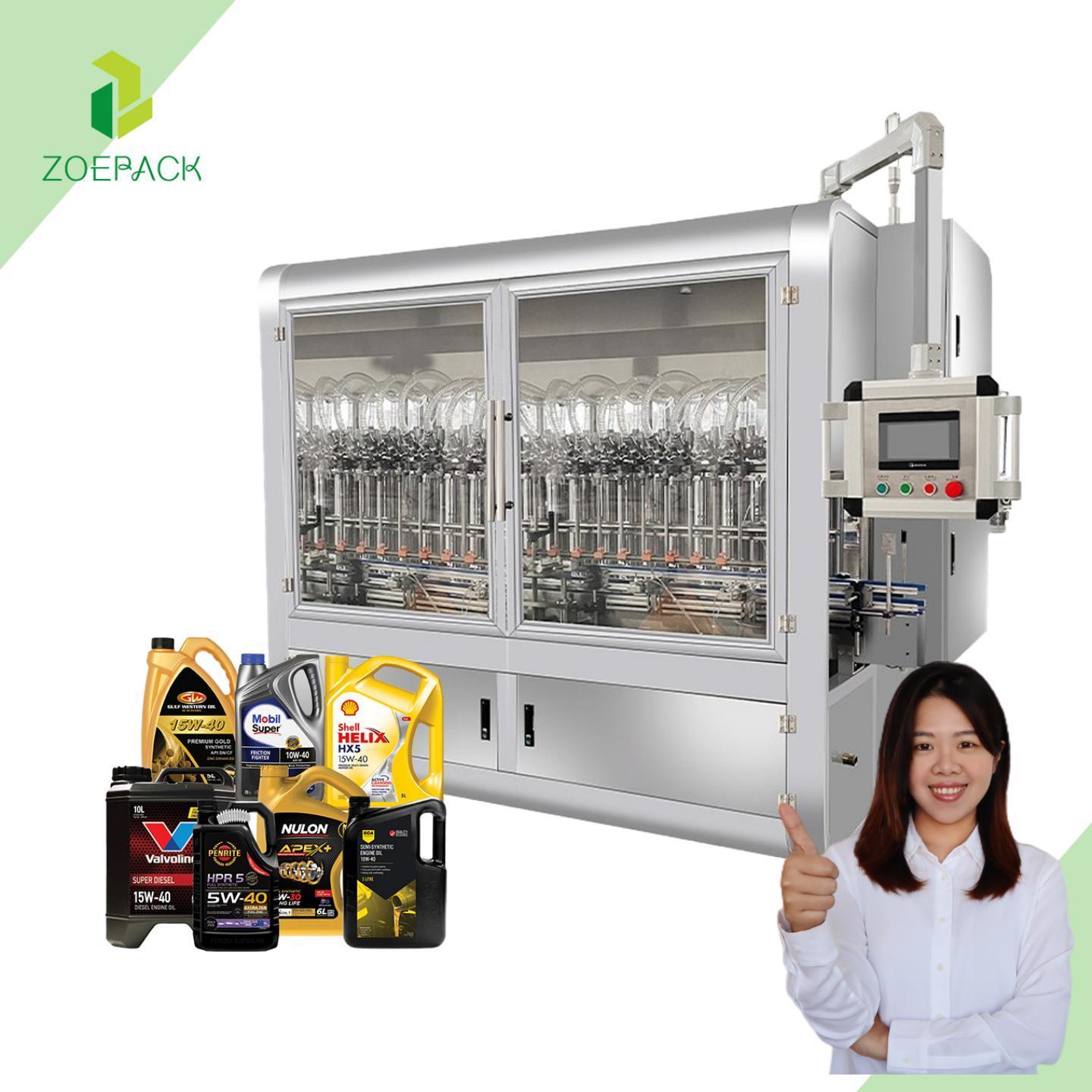

Factory Price 500 ML to 5 L Automatic Lubricant Oil Bottling Machine Engine Motor Oil Linear Piston Filling Machine
Factory Price 500 ML to 5 L Automatic Lubricant Oil Bottling Machine Engine Motor Oil Linear Piston Filling Machine
Factory Price 500 ML to 5 L Automatic Lubricant Oil Bottling Machine Engine Motor Oil Linear Piston Filling Machine
Factory Price 500 ML to 5 L Automatic Lubricant Oil Bottling Machine Engine Motor Oil Linear Piston Filling Machine
Factory Price 500 ML to 5 L Automatic Lubricant Oil Bottling Machine Engine Motor Oil Linear Piston Filling Machine
Factory Price 500 ML to 5 L Automatic Lubricant Oil Bottling Machine Engine Motor Oil Linear Piston Filling Machine
Factory Price 500 ML to 5 L Automatic Lubricant Oil Bottling Machine Engine Motor Oil Linear Piston Filling Machine
Factory Price 500 ML to 5 L Automatic Lubricant Oil Bottling Machine Engine Motor Oil Linear Piston Filling Machine

Factory Price 500 ML to 5 L Automatic Lubricant Oil Bottling Machine Engine Motor Oil Linear Piston Filling Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $45000
≥2 Sets
US $40000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Filling Accuracy:
99.8%
Voltage:
380V 50HZ
Place of Origin:
Jiangsu, China
Brand Name:
Zoepack
Dimension(L*W*H):
1600*1300*2200mm
Weight:
1200 KG, 1200kg
Product name:
Oil Filling Line
Capacity:
500-1200bph,1500-2500bph
Filling Range:
1-5L
Accuracy:
±0.5%
Air source:
0.6-0.8 MPa
Power:
3KW
Dimension:
1600*1300*2200mm
Material:
304 Stainless Steel

Quick Details

Machinery Capacity:
4000BPH, 6000BPH, 500BPH, 2000BPH, 1000BPH
Packaging Material:
Plastic, Metal, Glass
Filling Material:
Beer, Milk, Water, Oil, Juice
Filling Accuracy:
99.8%
Voltage:
380V 50HZ
Place of Origin:
Jiangsu, China
Brand Name:
Zoepack
Dimension(L*W*H):
1600*1300*2200mm
Weight:
1200 KG, 1200kg
Product name:
Oil Filling Line
Capacity:
500-1200bph,1500-2500bph
Filling Range:
1-5L
Accuracy:
±0.5%
Air source:
0.6-0.8 MPa
Power:
3KW
Dimension:
1600*1300*2200mm
Material:
304 Stainless Steel
Applications
Technical Parameters
0.1-5L Cooking oil/Motor oil/Drinking oil
Heads
Suitable bottles
Capacity(bottle/hour)
Precise
Size of Machine(mm)
Power(kW)
Power source
Air source
4 Heads
Can be customized
500m≤1200BPH
≤0.5%
1600*1300*2200
3KW
220/380V;
50/60Hz
(Can be customized)
0.6-0.8MPa
6 Heads
500m≤1600BPH
1800*1300*2200
3KW
8 Heads
500m≤2500BPH
2000*1300*2200
3KW
12 Heads
500m≤3000BPH
2400*1300*2200
3.5KW
16 Heads
500m≤4000BPH
2400*1400*2200
3.5KW
20 Heads
500m≤5000BPH
2600*1400*2200
3.5KW
5-20L Oil Jerry Can
Type
Suitable bottles
Capacity
Machine Size
Power
Power Supply
Precise
2 Heads
length:160-3600mm
width:100-300mm
height:250-500mm neck
diameter:≥Φ40mm
(can be customized)
≤0.5%
2000*1700*2300mm
2KW
AC220/380V
50-60Hz
≤±0.5%
4 Heads
2500*1700*2300mm
2KW
6 Heads
3500*1700*2300mm
2KW
8 Heads
4500*1700*2300mm
2.5KW

Click here to send us messages >> Send Inquiry...
Machine Details
Main Configuration
No.
Name
Place of origin
Brand
1
PLC
Japan
Mitsubishi
2
Weight Sensor
Germany
HBM
3
Angle seat Valve
Taiwan
AIRTAC
4
Solenoid Valve
Taiwan
AIRTAC
5
Photo Sensor
Germany
SICK
6
Touch screen
Japan
WEINVEIW
7
Diving cylinder
Taiwan
AIRTAC
8
Power button
France
Schneider
9
Button
France
Schneider
10
Magnetic switch
Taiwan
AIRTAC
11
oil-water separator
Taiwan
SHAKO
