Quick Details
-
Place of Origin:
-
Shandong, China
-
Type:
-
Site Dumper, Garden Dumper, Self Loading Dumper, Dump Truck, Construction Dumper, Farming Dumper, Agriculture Dumper, Diesel Dumper, Mini Dumper, Mining Dumper, Garbage Truck
-
Dimension(Long * Breadth * High):
-
4250x1800x2550mm
-
Machine Weight:
-
2450 kg
-
Bucket capacity:
-
1.0m³
-
Product Name:
-
2 Ton Mini Dumper All Terrain Vehicle
-
Color:
-
As Your Required
-
Steering:
-
Hydraulic Steering System
-
Tipping:
-
Hydraulic Tipping Hopper
-
Rated Loading:
-
2000KG
-
Engine Model:
-
4B2-52M22
-
Engine Type:
-
In-Line, Water-Cooled, 4 Cylinders, Diesel Engine
-
Wheel Base:
-
1360mm
-
Tread:
-
1960mm
-
Drive Type:
-
4*4 Wheel Drive
Quick Details
-
Engine Brand:
-
CHANGCHAI
-
Power:
-
37 KW
-
Brand Name:
-
Map
-
Place of Origin:
-
Shandong, China
-
Type:
-
Site Dumper, Garden Dumper, Self Loading Dumper, Dump Truck, Construction Dumper, Farming Dumper, Agriculture Dumper, Diesel Dumper, Mini Dumper, Mining Dumper, Garbage Truck
-
Dimension(Long * Breadth * High):
-
4250x1800x2550mm
-
Machine Weight:
-
2450 kg
-
Bucket capacity:
-
1.0m³
-
Product Name:
-
2 Ton Mini Dumper All Terrain Vehicle
-
Color:
-
As Your Required
-
Steering:
-
Hydraulic Steering System
-
Tipping:
-
Hydraulic Tipping Hopper
-
Rated Loading:
-
2000KG
-
Engine Model:
-
4B2-52M22
-
Engine Type:
-
In-Line, Water-Cooled, 4 Cylinders, Diesel Engine
-
Wheel Base:
-
1360mm
-
Tread:
-
1960mm
-
Drive Type:
-
4*4 Wheel Drive
Details Images
|
4X4 Site Dumper FCY20 Technical Specifications
|
|
|
||
|
Item
|
|
Specifications
|
||
|
Bucket capacity
|
|
1.0m3
|
||
|
Rated load
|
|
2000kg
|
||
|
Operating weight
|
|
1850kg
|
||
|
Grade ability
|
|
25º
|
||
|
Min turning radius
|
|
4000mm
|
||
|
wheel tread/wheel base
|
|
1850mm/1260mm
|
||
|
Overall dimension
|
|
"3850*1700*2550mm with canopy
|
||
|
Engine
|
Model
|
490
|
||
|
|
Type
|
in line\direct injection\water cooler\3 cylinders
|
||
|
|
Rated power
|
37kw
|
||
|
|
Max torque
|
2400r/min
|
||
|
Transmission
system |
Gearbox
|
Gear transmission
|
||
|
|
Clutch
|
dry friction
|
||
|
|
Nos of shifts
|
move forward 3 back2
|
||
|
|
Max speed
|
24km/hr
|
||
|
|
Rear and front axle
|
4×4,front axle fixed, rear axle swing（+/-110）
|
||
|
Steering
|
Type
|
hydraulic steering
|
||
|
|
Steering angle
|
35 degrees on both sides
|
||
|
Hydraulic system
|
Pressure
|
16MPA
|
||
|
|
Brake type
|
Drum brake
|
||
|
Tyre
|
Size
|
1100-16
|
||
|
Fuel capacity
|
Fuel tank
|
50L
|
||
|
|
Hydraulic oil tank
|
50L
|
||
|
|
Cab
|
Optional
|
||
|

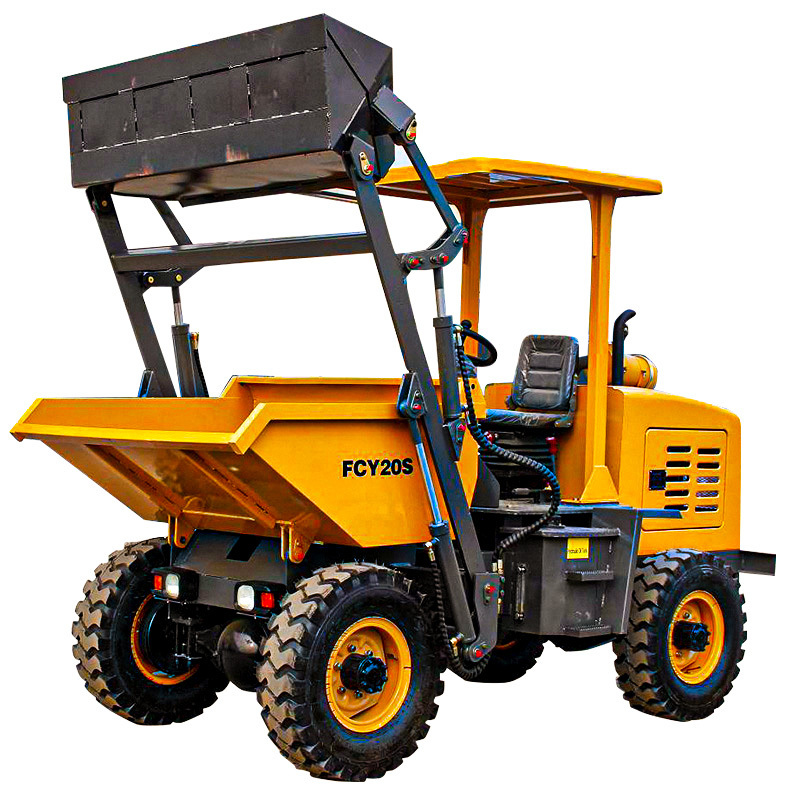

4X4 Site Dumper FCY20S Technical Specifications
|
|
|
||
|
Item
|
|
Specifications
|
||
|
Bucket capacity
|
|
1.0m3
|
||
|
Rated load
|
|
2000kg
|
||
|
Operating weight
|
|
1850kg
|
||
|
Grade ability
|
|
25º
|
||
|
Min turning radius
|
|
4000mm
|
||
|
wheel tread/wheel base
|
|
1850mm/1260mm
|
||
|
Overall dimension
|
|
"4350*1950*2650mm with canopy
|
||
|
Engine
|
Model
|
490
|
||
|
|
Type
|
in line\direct injection\water cooler\3 cylinders
|
||
|
|
Rated power
|
37kw
|
||
|
|
Max torque
|
2400r/min
|
||
|
Transmission
system |
Gearbox
|
Gear transmission
|
||
|
|
Clutch
|
dry friction
|
||
|
|
Nos of shifts
|
move forward 3 back2
|
||
|
|
Max speed
|
24km/hr
|
||
|
|
Rear and front axle
|
4×4,front axle fixed, rear axle swing（+/-110）
|
||
|
Steering
|
Type
|
hydraulic steering
|
||
|
|
Steering angle
|
35 degrees on both sides
|
||
|
Hydraulic system
|
Pressure
|
16MPA
|
||
|
|
Brake type
|
Drum brake
|
||
|
Tyre
|
Size
|
1100-16
|
||
|
Fuel capacity
|
Fuel tank
|
50L
|
||
|
|
Hydraulic oil tank
|
50L
|
||
|
|
Cab
|
Optional
|
||
2ton FCY20 4x4 Diesel Mini Site Hydraulic Dumper Truck Tipper Lorry
2ton FCY20S 4x4 Diesel Mini Site Hydraulic Dumper Truck Tipper Lorry Self Loading Dumper
